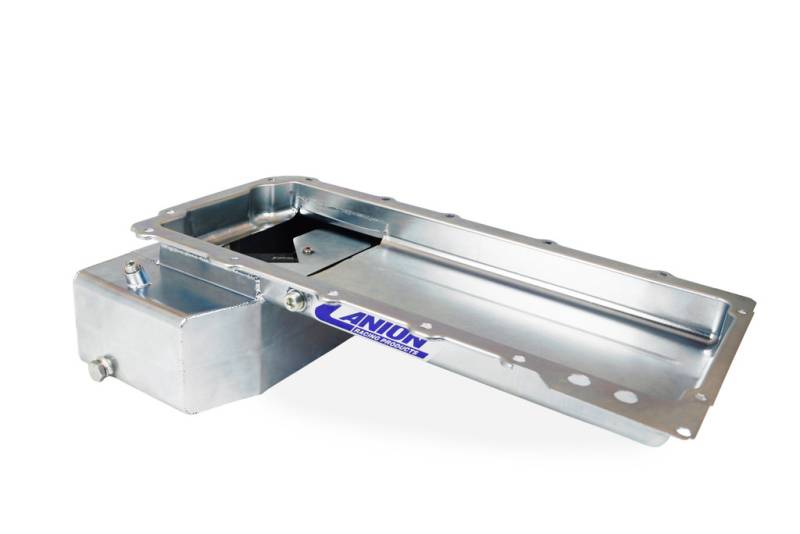

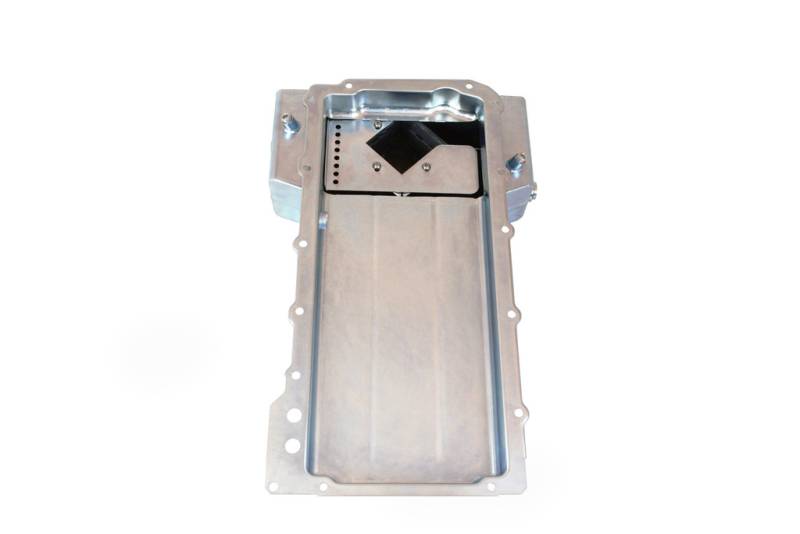

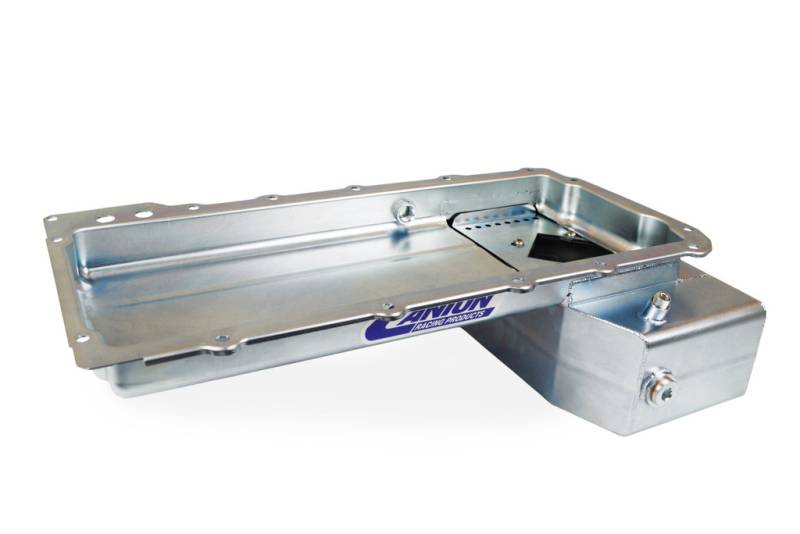

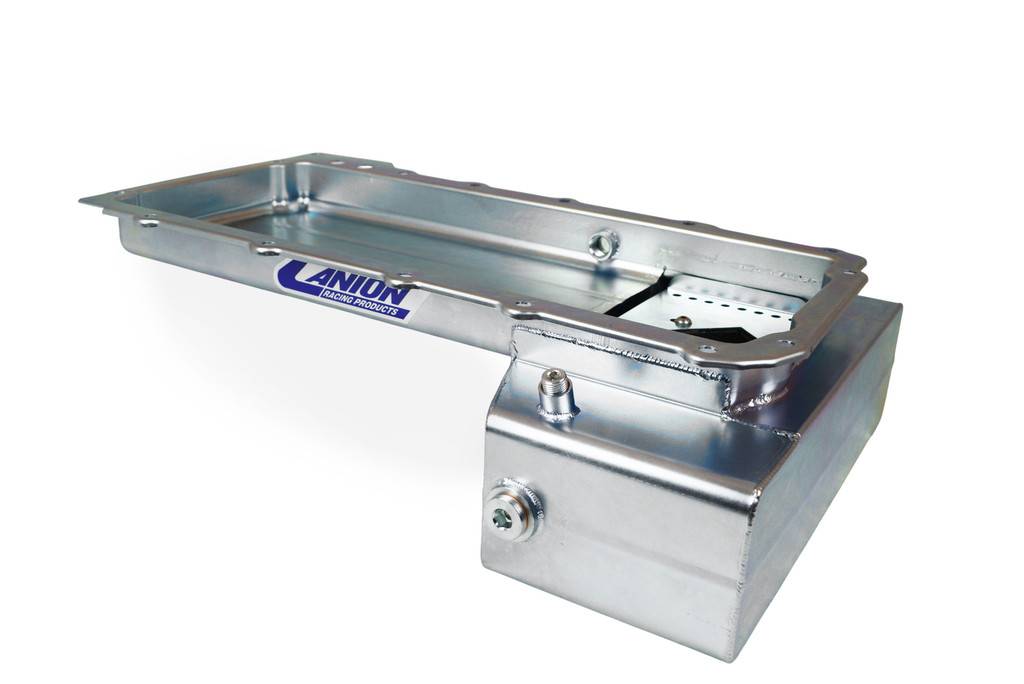

Canton Racing Chevy LS Swap Front Sump Nissan 350z Drift / Road Race Oil Pan

15-278
Canton Front Sump LS Swap Oil Pan - Nissan 350z with LS Swap. 5.625" Deep Front Sump Road Race and Drift Pan.

Note: Works with OEM Windage Tray #12558253

This GM LS front sump road race/drift car oil pan is designed for GM LS engine swap builds that require increased clearance behind the sump. Featuring a diamond shaped baffle system with four traps doors and a removable anti-slosh baffle, the 15-278 will provide the best oil control through vigorous street or track conditions. Contains provisions for a pan mounted dipstick on both sides of the pan, while also featuring a 20 MM bung for GM oil level sender as well as a 3/8 NPT bung for turbo drain back.
Pricing: $508.38

Qty:
Free Basic Shipping

Description

FEATURES:
6.5 qt System Capacity
3/8 NPT bung for turbo drain back
Diamond Shape Trap Door Baffle
Bolt in Slosh Baffle
20 mm bung for factory GM oil level sender
Provision for our pan mounted dipstick
Magnetic Drain Plug

Pickup Needed: 15-279 - Oil Pump Pickup for GM LS Front Sump Oil Pan

RECOMMENDED ACCESSORIES:
21-870 - LS flywheel cover
22-302 - GM LS Oil Pan Stud Kit
22-630 - LS1 Remote Filter Adapter
22-632 - LS1 90 Degree Remote Filter Adapter
22-631 - LS1 Pan Mounted Spin-on Filter Mount
22-620 - Billet Aluminum Spin-on Filter Adapter
22-405 - 20mm Plug (needed if not using low oil sender)

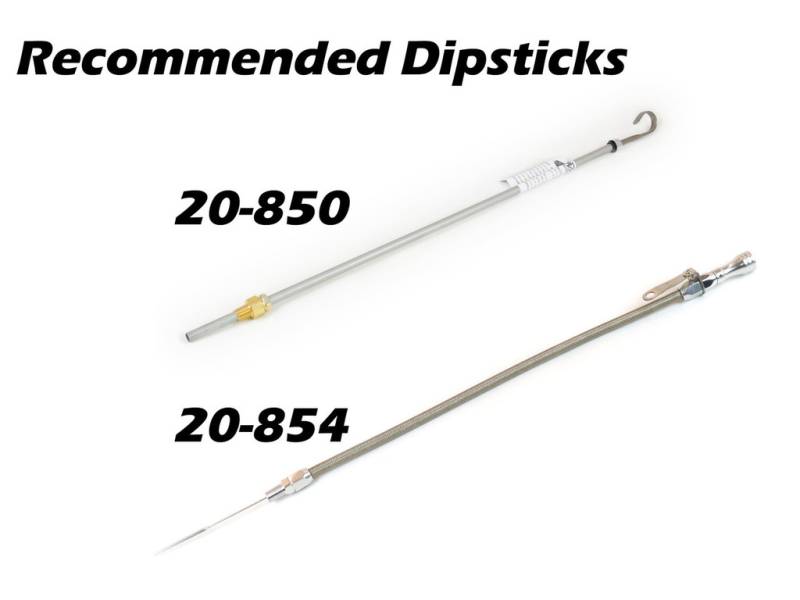

20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
20-902 - Front Sump LS Screen Windage Tray
20-902P - Front Sump LS Louvered Windage Tray
