Injector Dynamics ID2600XDS Fuel Injectors for Honda B/D/H/F Series Engines & Nissan SR20 FWD/RWD Engines

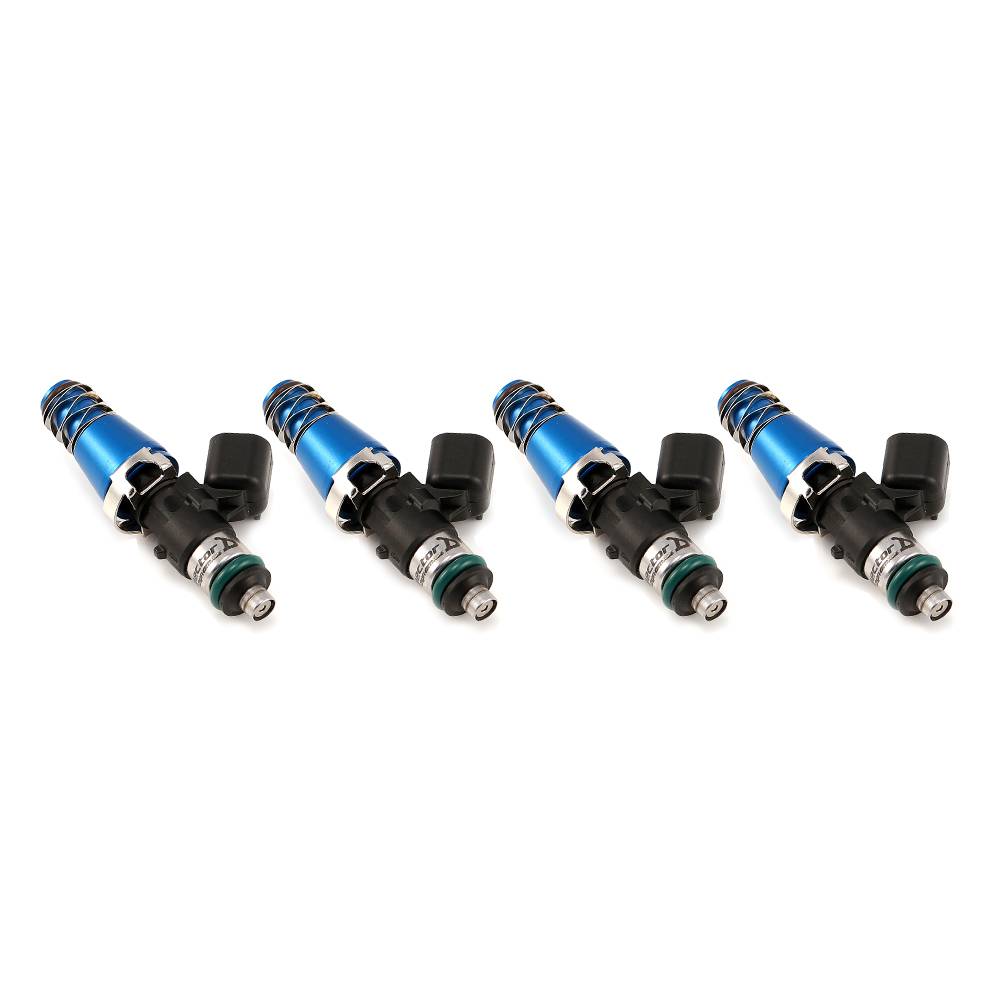

Included: 4 Injector Dynamics ID2600XDS fuel injectors. The photo is an example of a similar set.

These Injector Dynamics fuel injectors will fit many applications, including, but not limited to:

Honda B/D/H/F Series Engines & Nissan SR20 FWD/RWD Engines

Specifications
Typical Flow Rate in CC per minute: 2600cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) Requires Minimum 11volt
Fuel Compatibility – Compatible with Methanol / Ethanol / All Known Hydrocarbon Fuels. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane.
Electrical connector type: EV6 / USCAR
Injector Body Design: Metal and composite plastic
O-Rings Included: Yes, on the injectors

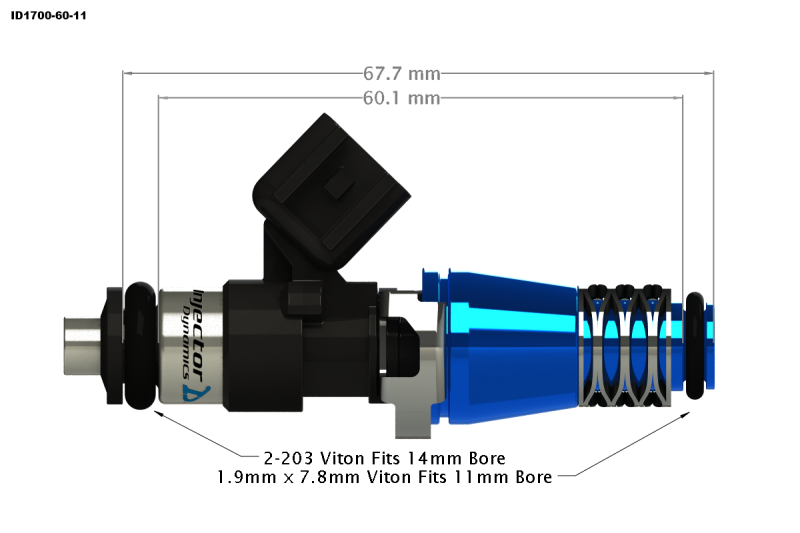

Length of injector from o-ring to o-ring: 60mm - blue adapters
Diameter of top o-ring / fuel rail bore: 11mm
Diameter or style lower o-ring or cushion: 14mm

Slope and Offset vs. Pressure data and tuning data for Motec M1 are available upon request
