BTR Gen V L83/L8B/L82/L84 5.3L Truck Stage 3 Turbo Camshaft with Valve Train Upgrade & DOD/AFM/DFM Delete Kit (For Small Twin 58-6Xmm or 80-88mm Single Turbo)

BTR-DODL83/L84-TS3
This BTR camshaft and DOD/AFM/DFM delete kit includes everything needed to install including the world renown Gen V L83/L8B/L82/L84 stage 2 camshaft. Small twin 58-6X mm or single turbos in the 80-88mm range. This camshaft offers an aggressive idle with great midrange and top end capability. Designed this kit to allow the use of a special cam sensor designed to work with the OEM timing cover available in our 3 BOLT VVT LOCKOUT KIT, which allows you to use this specially machined 3 bolt Gen V camshaft with an LS3 cam gear and retain the factory Gen V VVT front cover. Stock ECUs will have limitations, see cam card. Some wire connector trimming is required; see instructions.

Note: L83 and L84 use different DOD plugs use the options to select your engine type, this kit has many product options please make sure you see the blue "choose product options" button to configure your system and avoid any delays.

*Notice, Custom tuning is required after installation to properly configure the camshaft and disable the DFM/AFM/DOD system.

Important Information: Please select your options using the blue button. To install these parts a new crankshaft bolt is required. The cam install kit is highly recommended as the camshaft bolt can only be reused a few times and many techs like to always install new ones. Arp bolts/studs are reusable. Short travel lifters allow higher rpm capability and also require .050 shorter pushrods (so if everything is factory untouched 7.800").
Pricing: $1,588.73

Customize Your Item

- DOD Conversion Plug Options -
- Pushrod Options -
- Balancer Bolt Options -
- Head Bolt/Stud Options -
- Lifter Options -
- Cam Sensor Type -
 * required
Qty:
Free Basic Shipping

Description

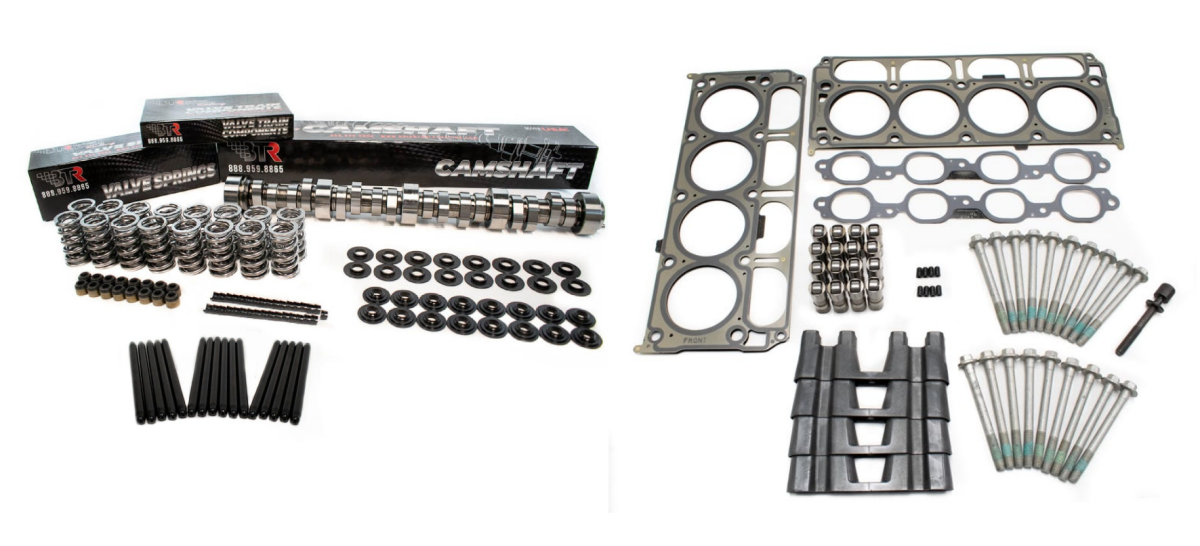

What is included with the this system?
BTR Gen V Stage 3 Turbo Camshaft
BTR .650 Lift Dual Platinum Valve Springs
BTR Hardened Pushrods (Select your size in the product options)
CBI Street Cars DOD/AFM/DFM Plugs (Select L83 or L84 DOD plugs using the product options)
BTR Delphi LT Lifters (Short travel high RPM lifters available in the product options)
BTR Lifter Trays - set of 4
BTR Gen V L83/L84 Head Gaskets - Pair
BTR Gen V Head Bolt Kit (Head studs available in the product options)
BTR Gen V Header Gaskets - Pair
BTR 3-Bolt Cam Gear (Lockout)
BTR Cam Bolts x3
BTR VVT Cam Conversion Sensor

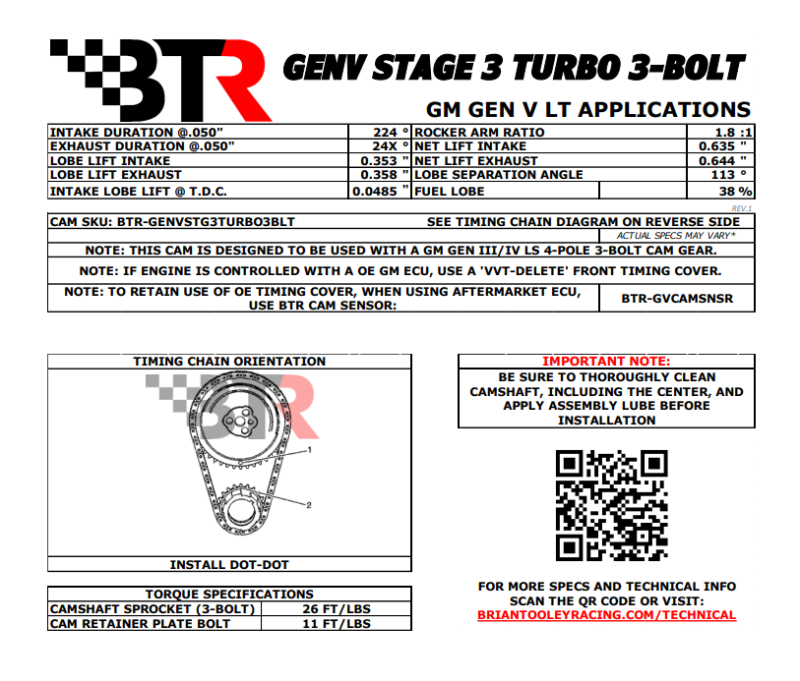

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 224/24X
Valve Lift with 1.8 Rocker Arm Ratio: 0.635 int./0.644 exh.
Lobe Separation (degrees): 113
Torque Converter Information: Requires aftermarket converter
Fuel Lobe Percentage: 38%
Turbo Type: Small Twin Turbos 58-6X mm or 80-88mm Single Turbo

Vehicle Fitment:
2014+ Chevy Silverado 5.3L
2014+ GMC Sierra 5.3L
2015+ Chevrolet Tahoe 5.3L
2015+ Chevrolet Suburban 5.3L
2015+ GMC Yukon/Yukon XL 5.3L
Gen V L83, L8B, L82 and L84 Crate Engines
