BTR Gen V L83/L8B/L82/L84 5.3L Truck Stage 2 Turbo Camshaft with Valve Train Upgrade & DOD/AFM/DFM Delete Kit (For Small Twin 58-65mm or 80-88mm Single Turbo)

BTR-DODL83/L84-TS2
This BTR camshaft and DOD/AFM/DFM delete kit includes everything needed to install including the world renown Gen V L83/L8B/L82/L84 stage 2 camshaft. Designed for use in aggressive L83 and Street Strip L86/LT1 combos using small twin 58-6X mm or single turbos in the 80-88mm range. This camshaft offers an aggressive idle and even more midrange and top end capability than our Gen V Stage 1 cam. As with all BTR offerings, these cams were designed to help achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.

Note: L83 and L84 use different DOD plugs use the options to select your engine type, this kit has many product options please make sure you see the blue "choose product options" button to configure your system and avoid any delays.

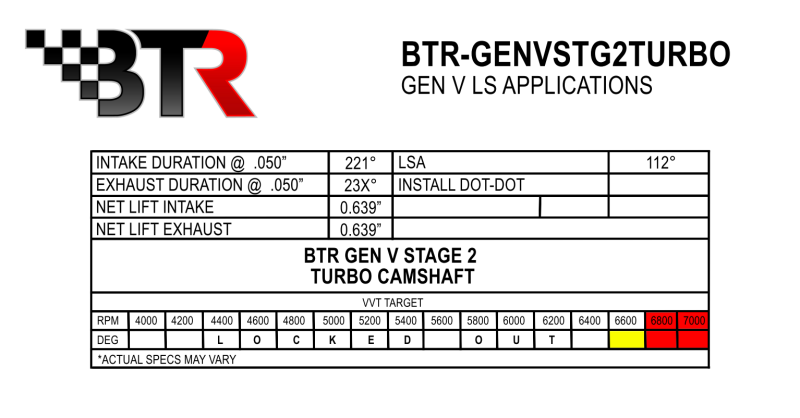

*Notice, Custom tuning is required after installation to properly configure the camshaft and disable the DFM/AFM/DOD system. (Use the VVT Target map in picture 3 for tuning)

Important Information: Please select your options using the blue button. To install these parts a new crankshaft bolt is required. The cam install kit is highly recommended as the camshaft bolt can only be reused a few times and many techs like to always install new ones. Arp bolts/studs are reusable. Short travel lifters allow higher rpm capability and also require .050 shorter pushrods (so if everything is factory untouched 7.800").
Pricing: $1,608.51

Customize Your Item

- DOD Conversion Plug Options -
- Pushrod Options -
- VVT Cam Bolt Options -
- Balancer Bolt Options -
- Head Bolt/Stud Options -
- Lifter Options -
Qty:
Free Basic Shipping

Description

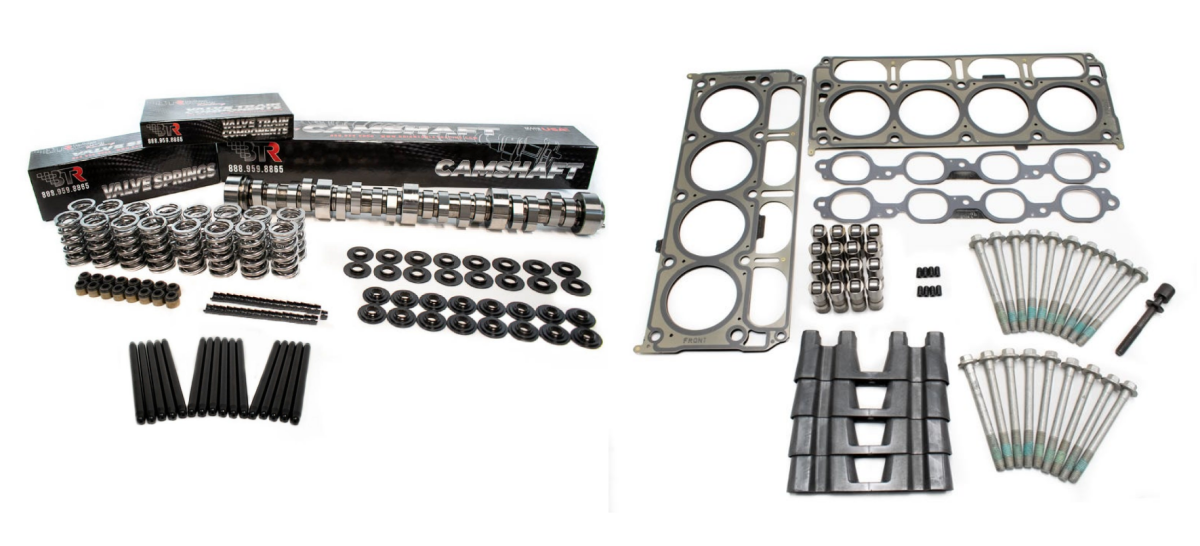

What is included with the this system?
BTR Gen V Stage 2 Turbo Camshaft
BTR .650 Lift Dual Platinum Valve Springs
BTR Hardened Pushrods (Select your size in the product options)
BTR VVT Lockout and Cam Motion Phaser Tool (VVT phaser delete available in the product options)
CBI Street Cars DOD/AFM/DFM Plugs (Select L83 or L84 DOD plugs using the product options)
BTR Delphi LT Lifters (Short travel high RPM lifters available in the product options)
BTR Lifter Trays - set of 4
BTR Gen V L83/L84 Head Gaskets - Pair
BTR Gen V Head Bolt Kit (Head studs available in the product options)
BTR Gen V Header Gaskets - Pair
BTR VVT Phaser Bolt

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 221/23X
Valve Lift with 1.8 Rocker Arm Ratio: 0.639 int./0.639 exh.
Lobe Separation (degrees): 112
Torque Converter Information: Requires aftermarket converter
Fuel Lobe Percentage: 38%
Turbo Type: Small Twin 58-65mm or 80-88mm Single Turbo

Vehicle Fitment:
2014+ Chevy Silverado 5.3L
2014+ GMC Sierra 5.3L
2015+ Chevrolet Tahoe 5.3L
2015+ Chevrolet Suburban 5.3L
2015+ GMC Yukon/Yukon XL 5.3L
Gen V L83, L8B, L82 and L84 Crate Engines
