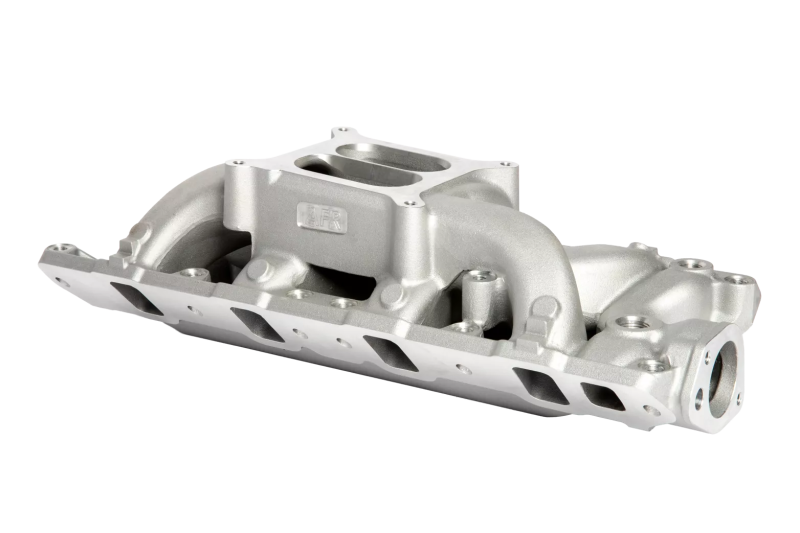

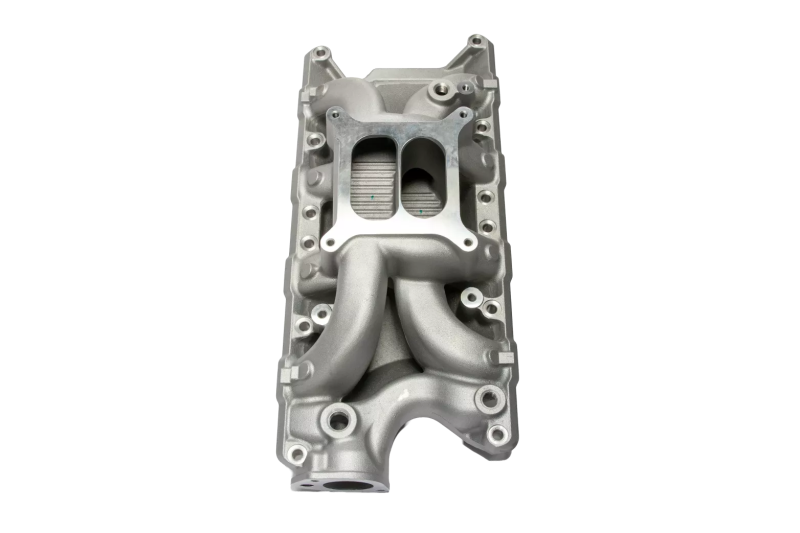

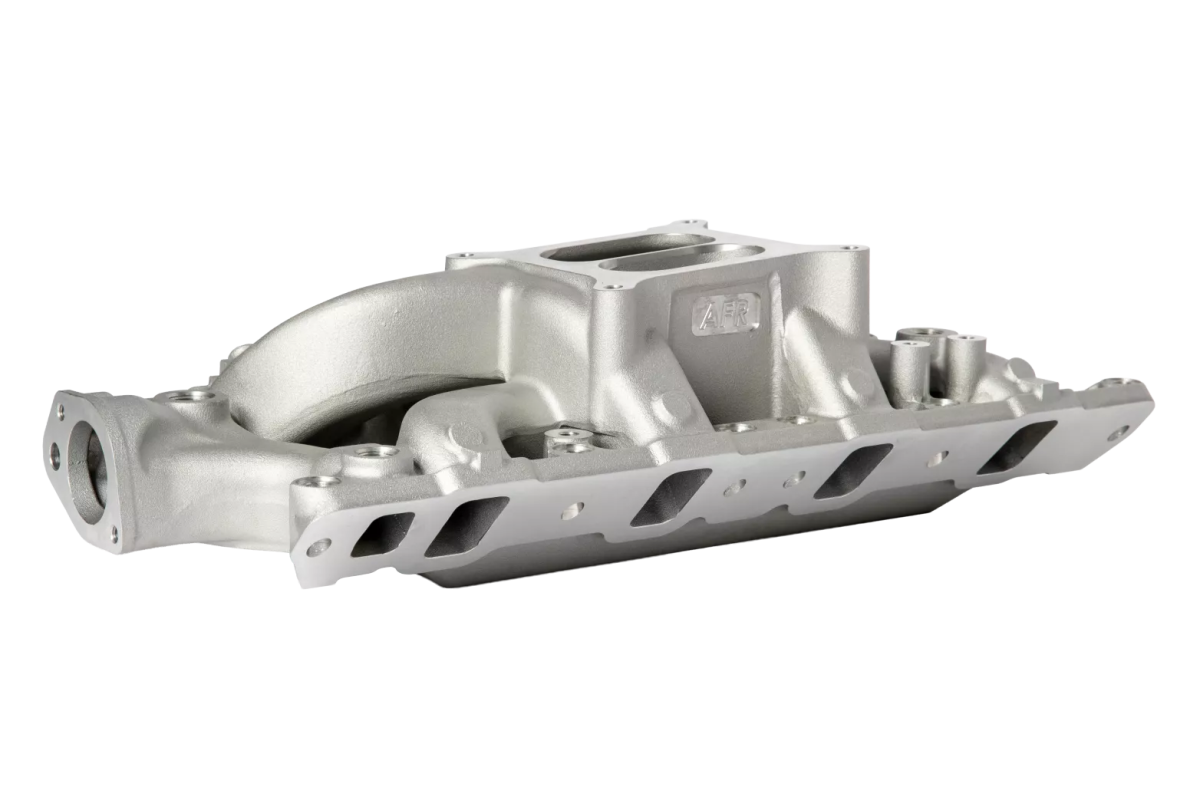

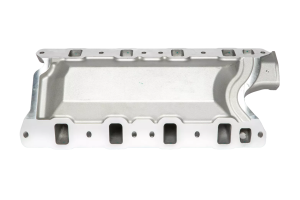

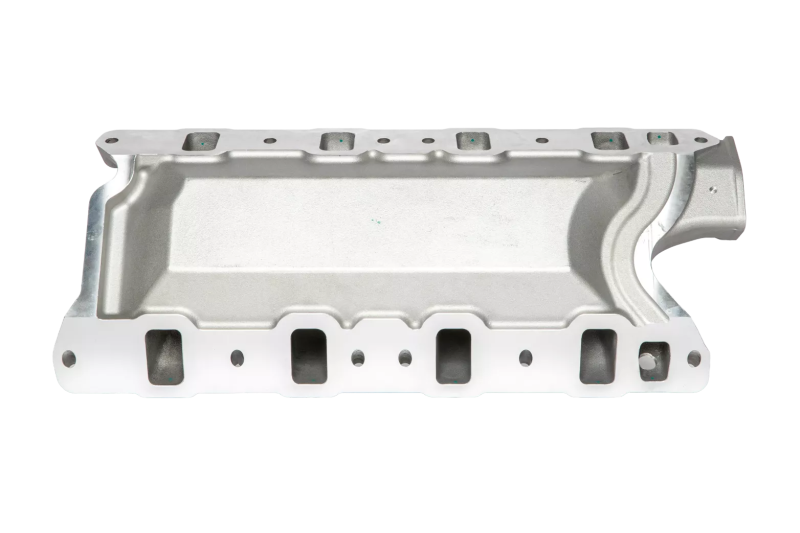

AFR SBF Dual Plane Aluminum Intake Manifold - 4150 Flange (8.2" Deck)

AFR 4831
Designed for 8.2-deck Small Block Ford engines, this AFR-branded dual plane intake delivers excellent street performance and throttle response for 302, 331, and 347 Windsor combinations. The dual plane runner design enhances low- and mid-range torque while maintaining strong airflow for higher RPM operation. Ideal for street performance and street/strip builds, it pairs perfectly with AFR Small Block Ford cylinder heads to complete a high-performance Windsor top end.
Shipping: FREE continental USA ground shipping on ALL AFR Intake Manifolds
Pricing: $260.00

Qty:
Free Basic Shipping

Description

Specifications & Features

Application 289-302 & 331/347  Windsor 8.2 deck
Basic Operating RPM Range 1500-6000
Material Cast Aluminum
Carb Flange Height 5.13" at rear of carb flange,  4.79" at front, both to China wall face, 4 degree flange
Manifold Type Dual Plane
Port Dimensions 1.86" H x 1.07" W x 1/4 Radius
Port Locations Stock
Compatible with 165-185 Renegade & 185 Enforcer, May require port matching for optimum fit.
Carb Flange 4150 /4160


Recommended Components

Intake Gasket 6911
Manifold Bolt/Stud 6301 & 6302
