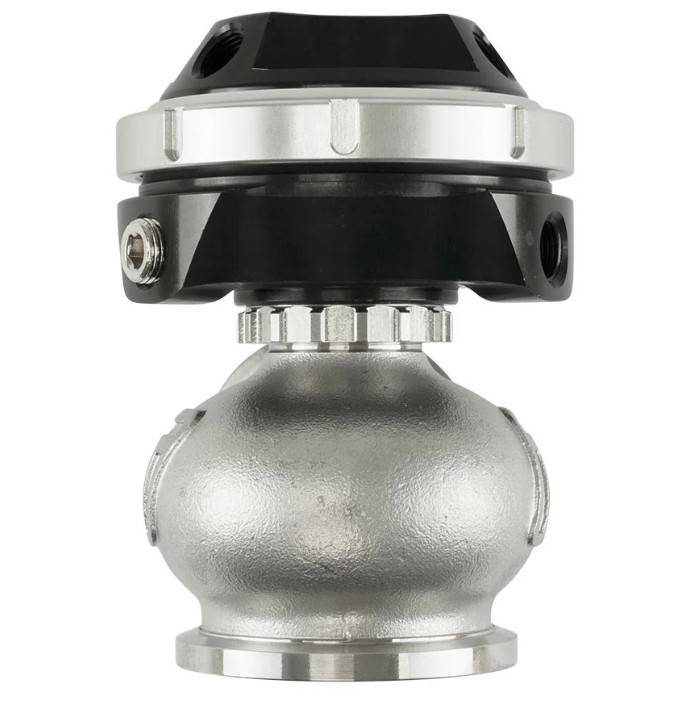

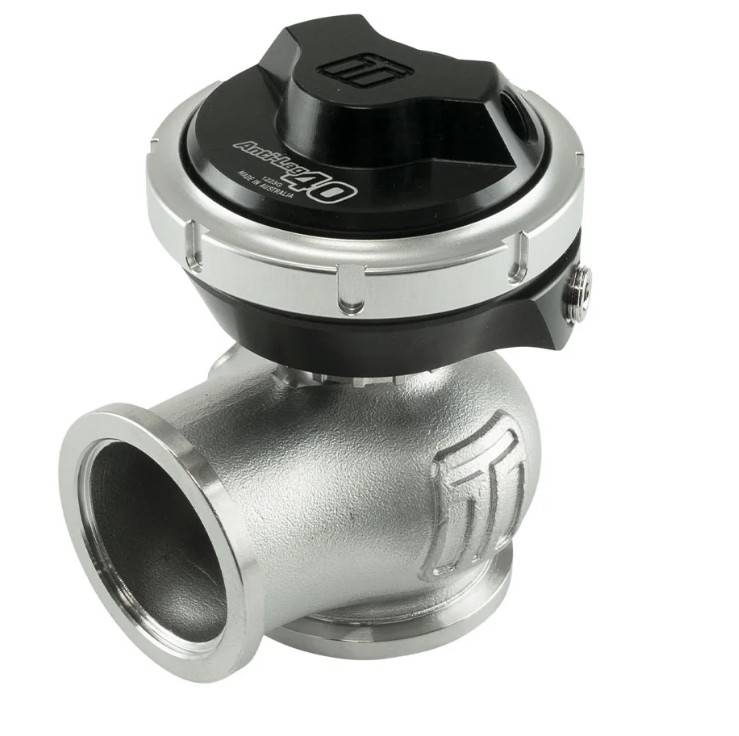

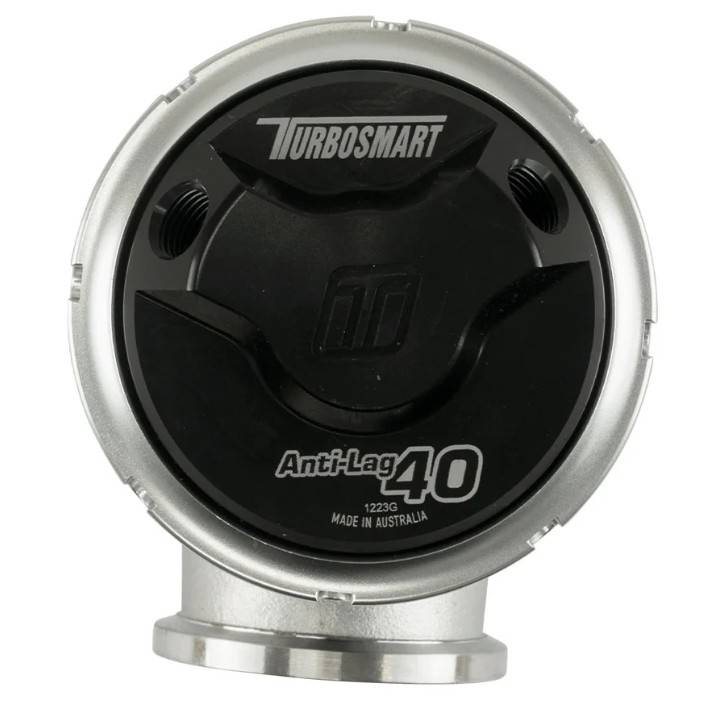

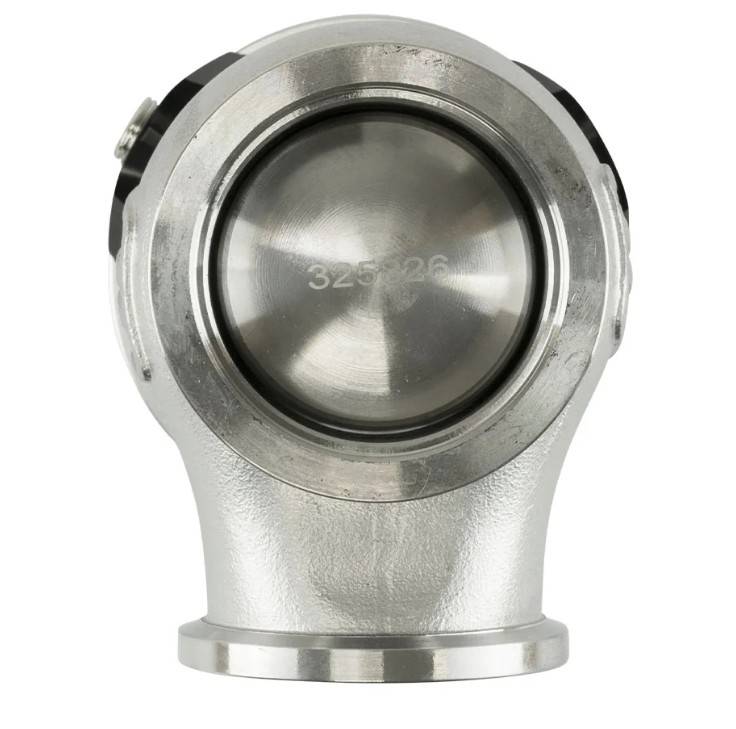

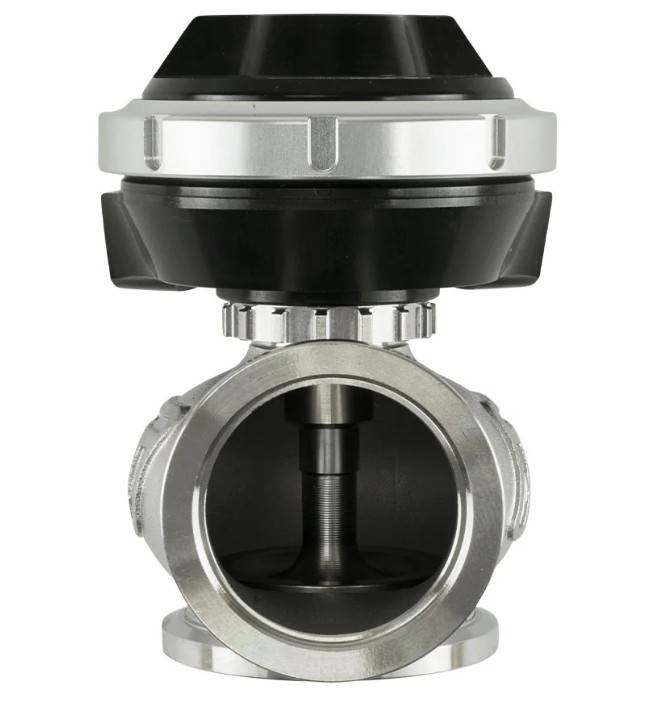

GenV ALV40 Anti-Lag Valve
TS-0552-1402
The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.
The ALV40 Fresh Air Valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle-based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.
The ALV40 Fresh Air Valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle-based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.
Pricing:
$529.95
Description
The ALV is a sealed twin-chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow the air to bypass into the exhaust manifold, the lower chamber for twin-port control methods, control the valve irrespective of manifold pressure, and the shaft seal allows for leakproof operation.
Features:
Twin Chamber Control
Suitable for Boost or Vacuum
Clockable Actuator Housing
Optional 1-5 port outlet flanges
Nitronic 60 Valve Guide and; High Temp 347 Ss Body
17/7 PH Stainless Steel Springs
Strap Type V-band clamps

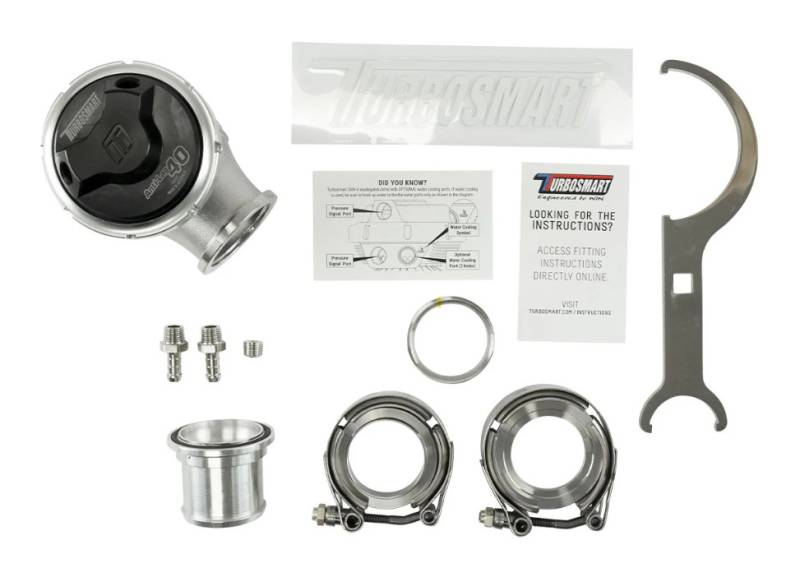

Supplied With:
Turbosmart GenV Anti lag Valve
Valve Seat
Inlet and Outlet V-band Clamp
Inlet Hose Adapter 1-1/2' OD
Inlet Weld Flange 1-1/2' OD
C Spanner / Collar Tool
Inlet O-ring
Turbosmart Decal
Features:
Twin Chamber Control
Suitable for Boost or Vacuum
Clockable Actuator Housing
Optional 1-5 port outlet flanges
Nitronic 60 Valve Guide and; High Temp 347 Ss Body
17/7 PH Stainless Steel Springs
Strap Type V-band clamps
Supplied With:
Turbosmart GenV Anti lag Valve
Valve Seat
Inlet and Outlet V-band Clamp
Inlet Hose Adapter 1-1/2' OD
Inlet Weld Flange 1-1/2' OD
C Spanner / Collar Tool
Inlet O-ring
Turbosmart Decal
Details
- TS-0552-1402
- TS-0552-1402
- Turbosmart Turbos
- New
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W18.0000” x H12.0000” x L12.0000”
