IWG75 Wastegate Actuator Suit Nissan GTR R35 Black 19PSI
TS-0615-2192
Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment, resulting in improved boost response throughout the RPM range.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Pricing:
$540.95
Description
Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost achieved earlier in the RPM and hold longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration is likely required.
Available In:
7psi / 0.50 BAR: TS-0615-2072
19psi / 1.31 BAR: TS-0615-2192
24psi / 1.65 BAR: TS-0615-2242
Features:
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes:
The 7psi version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.

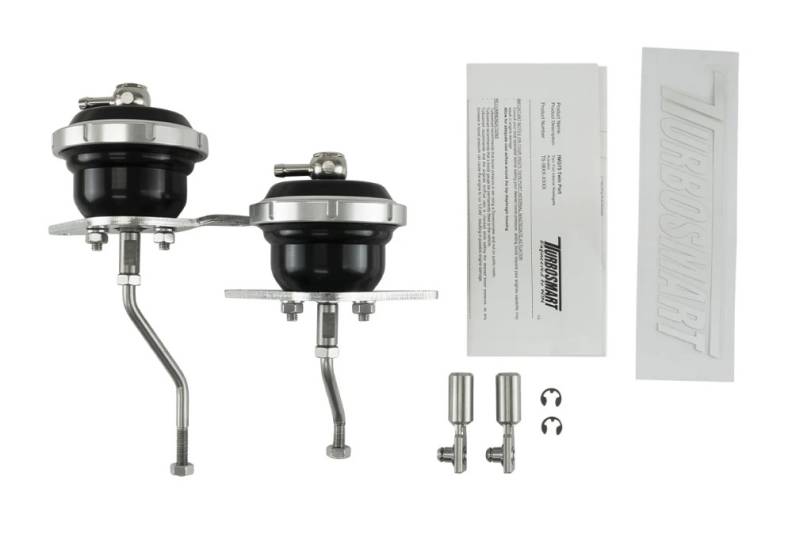

Supplied With:
2 x IWG75 Wastegate Actuator
2 x Vehicle Specific Mounting Bracket
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
Suitable For:
This is a bolt-on fitment for the turbochargers as a fitted factory to the VR38 3.8 Liter Twin Turbo Powered Nissan GT-R R35 from 2007 - 2021.
Available In:
7psi / 0.50 BAR: TS-0615-2072
19psi / 1.31 BAR: TS-0615-2192
24psi / 1.65 BAR: TS-0615-2242
Features:
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
Notes:
The 7psi version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.
Supplied With:
2 x IWG75 Wastegate Actuator
2 x Vehicle Specific Mounting Bracket
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
Suitable For:
This is a bolt-on fitment for the turbochargers as a fitted factory to the VR38 3.8 Liter Twin Turbo Powered Nissan GT-R R35 from 2007 - 2021.
Details
- TS-0615-2192
- TS-0615-2192
- Turbosmart Turbos
- New
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W18.0000” x H12.0000” x L12.0000”
