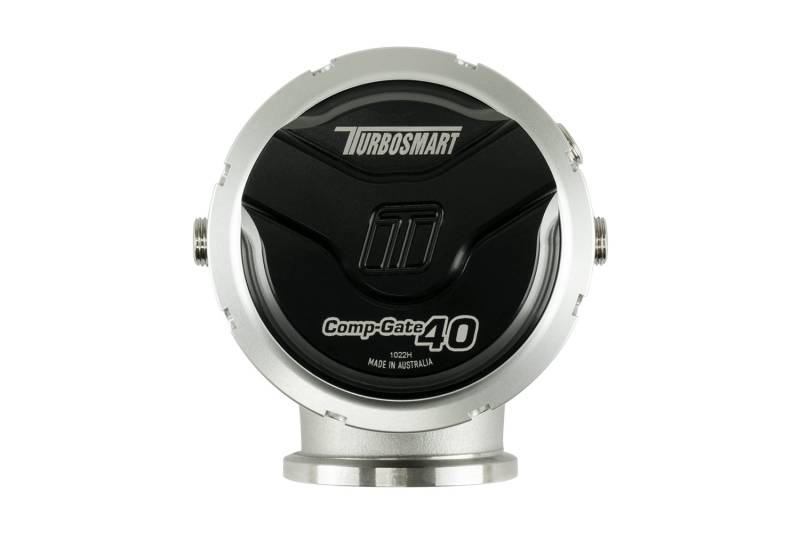

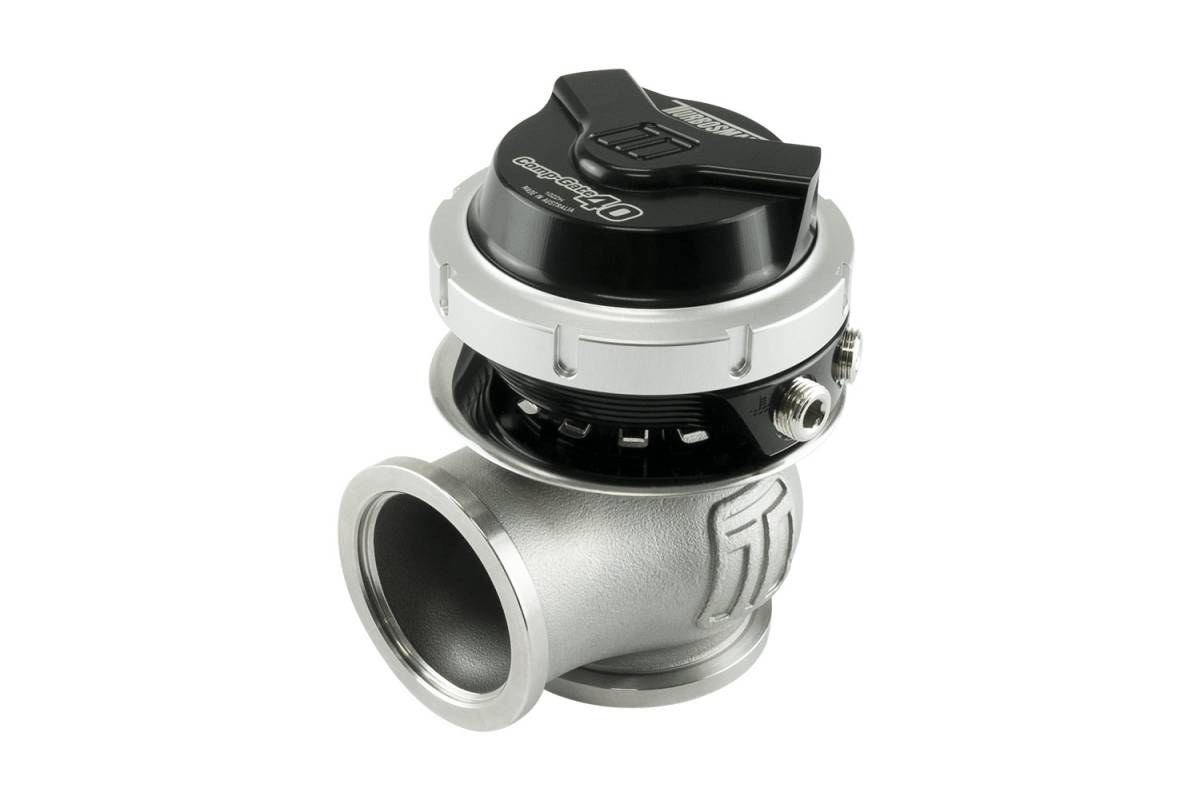

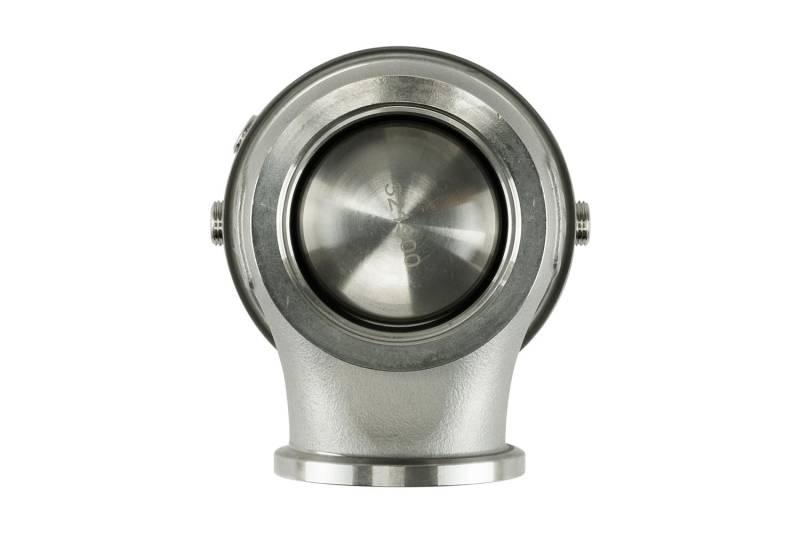

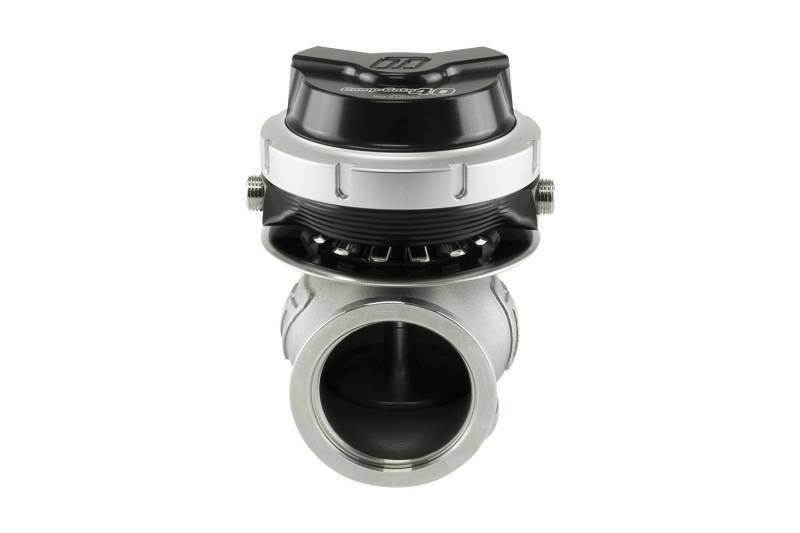

GenV CompGate40 14psi External Wastegate (Black)
TS-0552-1012
The GenV WG40 CompGate40 External Wastegate is a Motorsport-proven, cost-effective external wastegate – The Highest Flowing Wastegate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.
The GenV Range has more features, options and performance than any other gate. The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management.
Pricing:
$393.95
Description
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In:
Black, Blue, Red, Purple & Sleeper colours
Optional Wastegate Position Sensor Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heat sink design)
HP (High-Pressure Version) Up to 50psi
eWG (Electronic Actuated) Version
Features:
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps

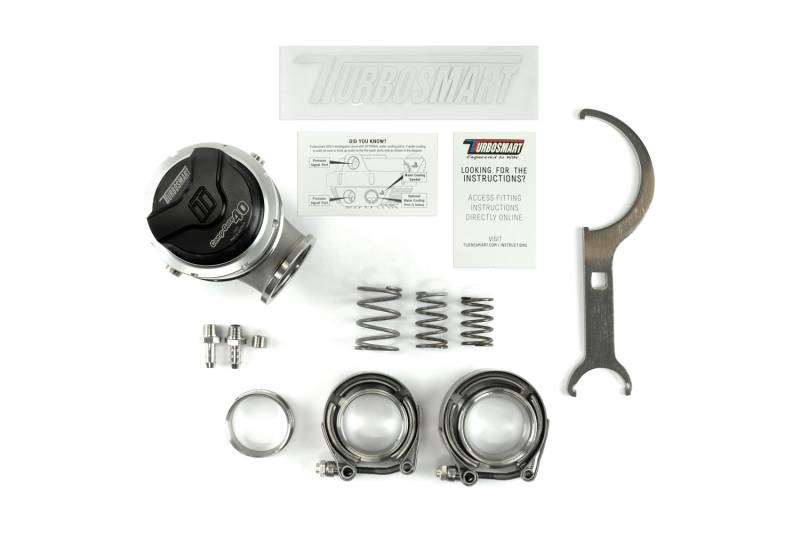

Supplied With:
GenV Wastegate Unit
All Springs Included
(3,5,7,14 (1 Inst. As per Desciption)
GenV SS316 Valve Seat
Strap Style V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal
Available In:
Black, Blue, Red, Purple & Sleeper colours
Optional Wastegate Position Sensor Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heat sink design)
HP (High-Pressure Version) Up to 50psi
eWG (Electronic Actuated) Version
Features:
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
Supplied With:
GenV Wastegate Unit
All Springs Included
(3,5,7,14 (1 Inst. As per Desciption)
GenV SS316 Valve Seat
Strap Style V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal
Details
- TS-0552-1012
- TS-0552-1012
- Turbosmart Turbos
- New
Categories
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W18.0000” x H12.0000” x L12.0000”
