Injector Dynamics ID1300XDS Fuel Injectors 1992-1999 BMW E46 M3

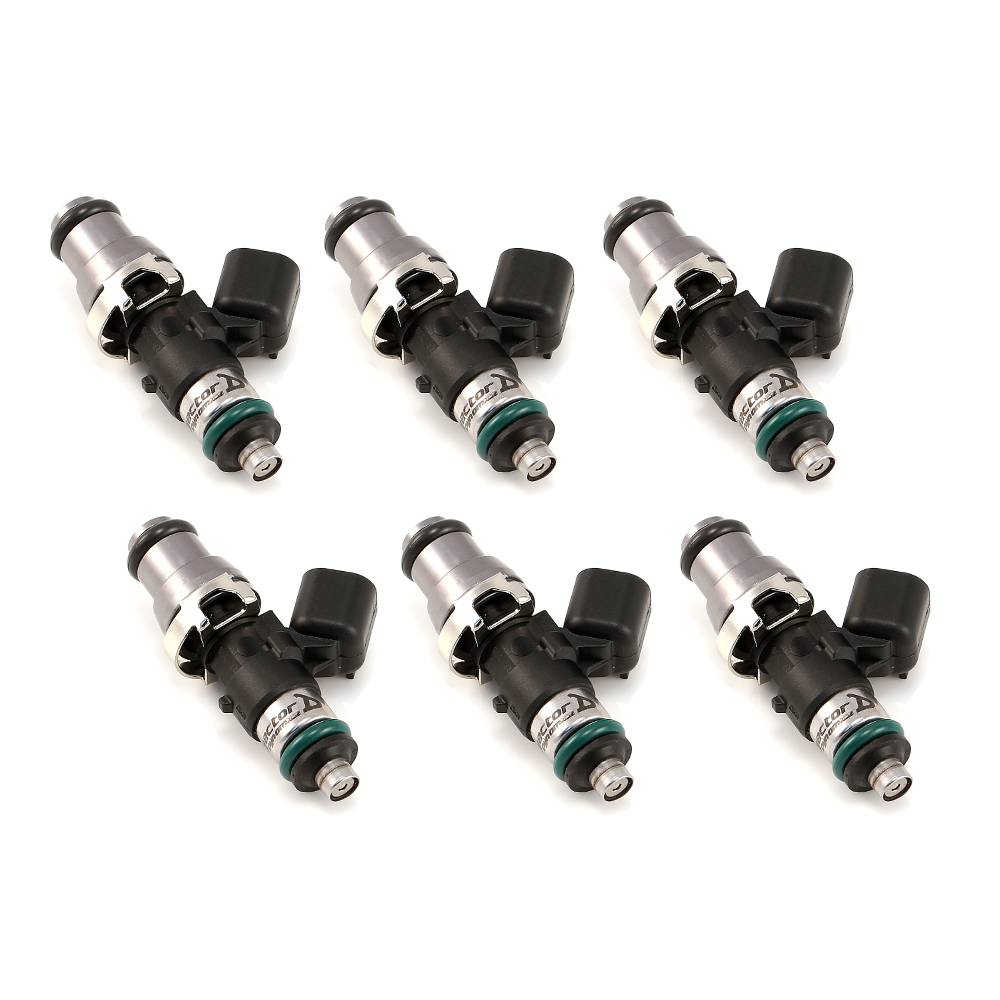

Included: 6 Injector Dynamics ID1300XDS fuel injectors. The photo is an example of a similar set.

The ID1300XDS is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300x² was designed with alternative fuels in mind, and was originally the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.

These Injector Dynamics fuel injectors will fit many applications, including, but not limited to:

1992-1999 BMW E46 M3

Specifications

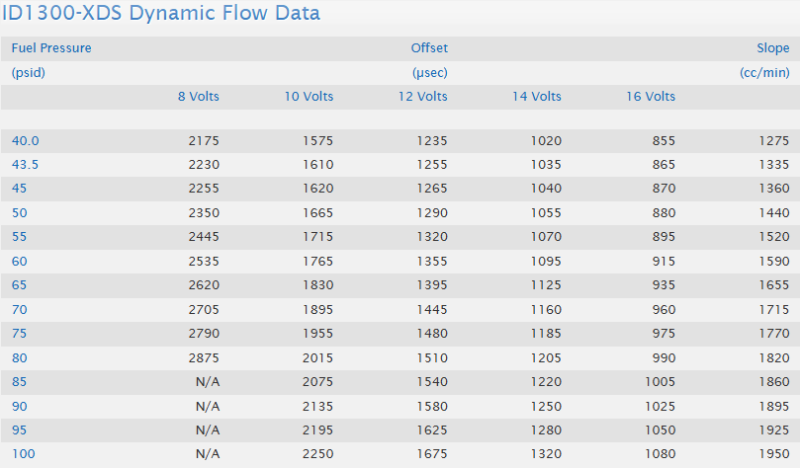

Typical Flow Rate in CC per minute: 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
Electrical connector type: EV6 / USCAR
Injector Body Design: Metal and composite plastic
O-Rings Included: Yes, on the injectors

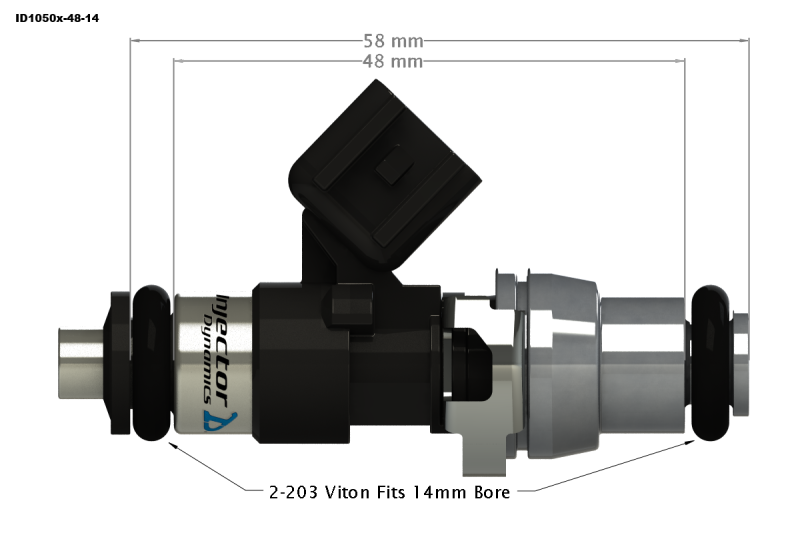

Length of injector from o-ring to o-ring: 48mm
Diameter of top o-ring / fuel rail bore: 14mm
Diameter or style lower o-ring or cushion: 14mm
