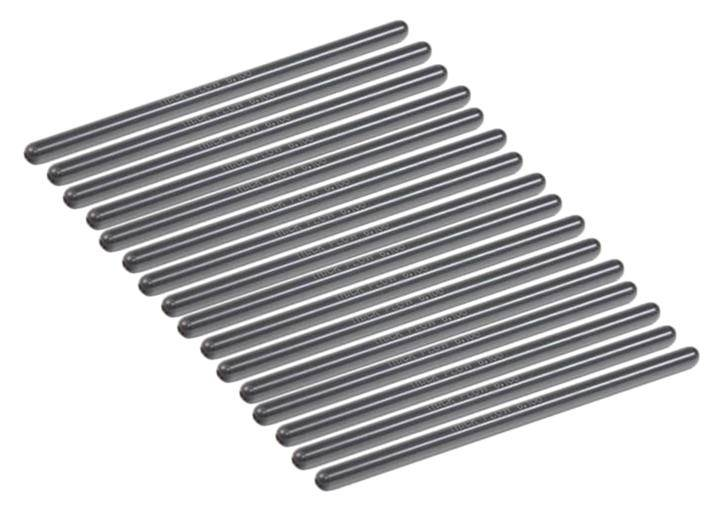

Trick Flow 5/16" Chromoly Pushrods - Set of 16 (select your size)
TFS-5/16Pushrods-16
Trick Flow Chromoly Pushrods:

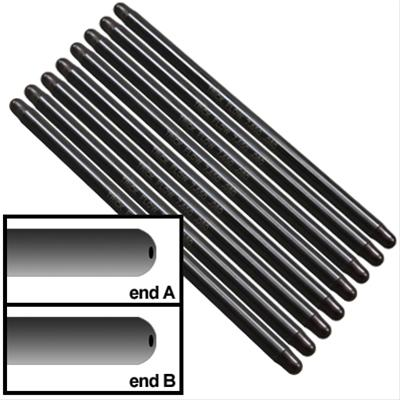

The proper length pushrod is critical to achieving correct valvetrain geometry. Trick Flow one-piece chromoly pushrods are available in a variety of lengths for use with all high performance applications. The pushrods are cold-formed from 4130 chromoly steel with a .080" wall thickness for strength and durability. Plus, the oil hole is closed to within .040" then drilled and chamfered to .093" to eliminate stress fractures and cracks before being induction-hardened and heat-treated for use with guideplates. These pushrods are available in 5/16" diameter in any length from 6.250"-9.000" in .050" increments.
Note: Select the size of pushrod you'd like in the product options!
The proper length pushrod is critical to achieving correct valvetrain geometry. Trick Flow one-piece chromoly pushrods are available in a variety of lengths for use with all high performance applications. The pushrods are cold-formed from 4130 chromoly steel with a .080" wall thickness for strength and durability. Plus, the oil hole is closed to within .040" then drilled and chamfered to .093" to eliminate stress fractures and cracks before being induction-hardened and heat-treated for use with guideplates. These pushrods are available in 5/16" diameter in any length from 6.250"-9.000" in .050" increments.
Note: Select the size of pushrod you'd like in the product options!
Pricing:
$125.99
Description
Available Sizes:
6.250, 6.300, 6.350, 6.400, 6.450, 6.500, 6.550, 6.600, 6.650, 6.700, 6.750, 6.800, 6.850, 6.900, 6.950, 7.000, 7.050, 7.100, 7.150, 7.200, 7.250, 7.300, 7.350, 7.400, 7.450, 7.500, 7.550, 7.600, 7.650, 7.700, 7.750, 7.800, 7.850, 7.900, 7.950, 8.000, 8.050, 8.100, 8.150, 8.200, 8.250, 8.300, 8.350, 8.400, 8.450, 8.500, 8.550, 8.600, 8.650, 8.700, 8.750, 8.800, 8.850, 8.900, 8.950, 9.000
Features:
Compatible with Guideplates: Yes
Pushrod Tube Diameter: 3/8 in.
Pushrod Material: Chromoly
Top Tip Style: Ball
Bottom Tip Style: Ball
One-Piece Pushrod: Yes
Oiling: Yes
Tapered: Yes
Tip Attachment: Formed
Top Tip Diameter: 5/16 in.
Bottom Tip Diameter: 5/16 in.
Wall Thickness (in.): 0.080 in.
Heat-Treated: Yes
Details
- TFS-5/16Pushrods-16
- TFS-5/16Pushrods-16
- Trickflow
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
