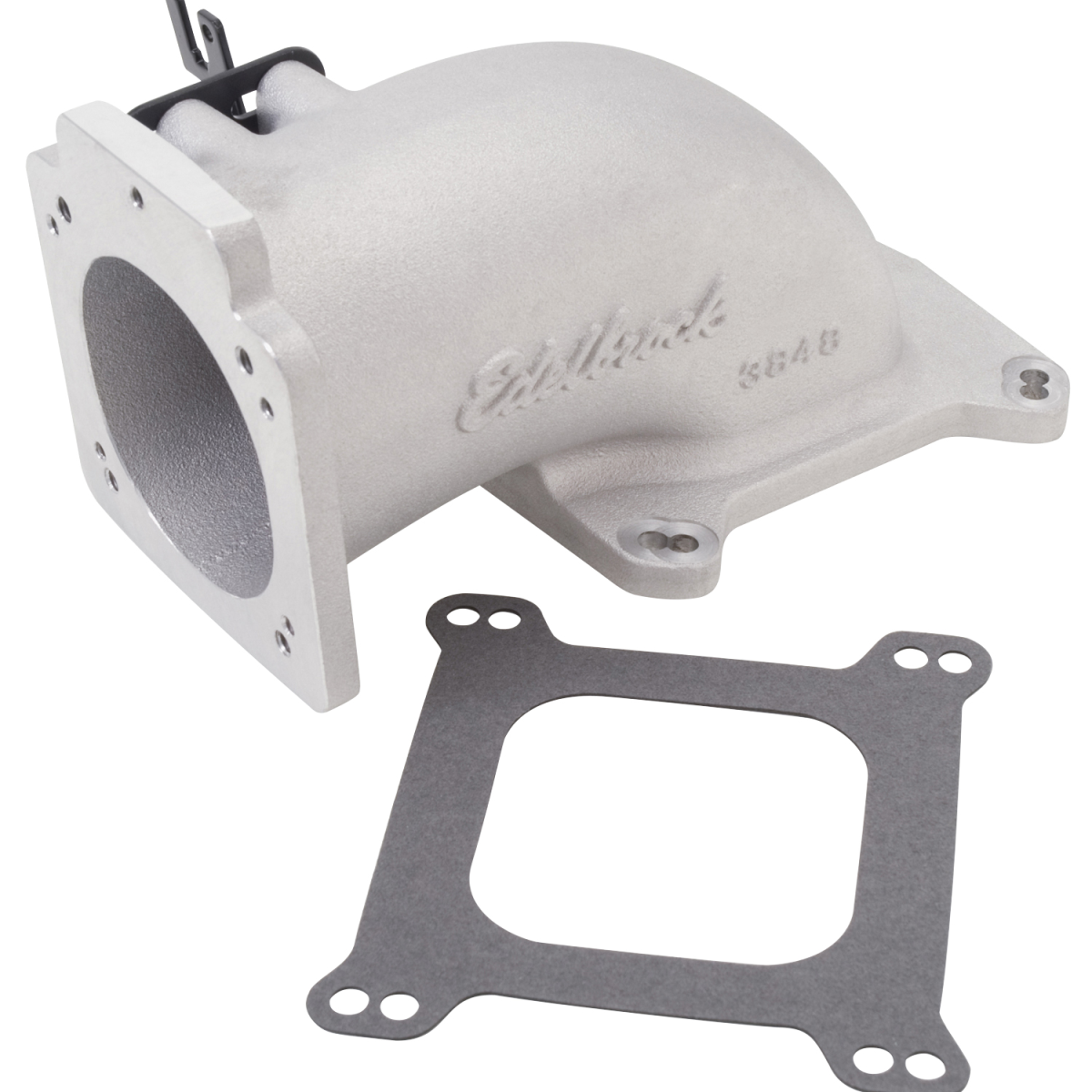

Edelbrock 4150/Square Bore Intake Manifold to GM/Ford Up To 95mm Throttle Body Low Profile Intake Elbow - Satin

This Edelbrock Intake elbows was developed by the Edelbrock engineering team using the latest in Computational Fluid Dynamic (CFD) software. Edelbrock Throttle Body Elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with 4150 mounting pads / square bore mounting pads. An internal divider optimizes flow quantity and distribution into the manifold and they can be mounted forward, backward, or sideways.

Three versions allow EFI tuners to position the throttle body low for hood clearance or higher for maximum airflow. Available in satin or black powder coated finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket. High Flow Intake Elbow can be used with up to a 95mm Throttle Body.

Note: Elbow has LS1/LS2 and Ford 5.0L throttle body bolt patterns

*Notice, for SBC/BBC applications a 1" spacer is required to clear the water neck in forward facing bias.
