Accufab 5" Bore Barrel Valve Polished Throttle Body w/ 4500 Flange
ACCUFAB5

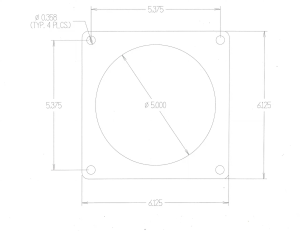

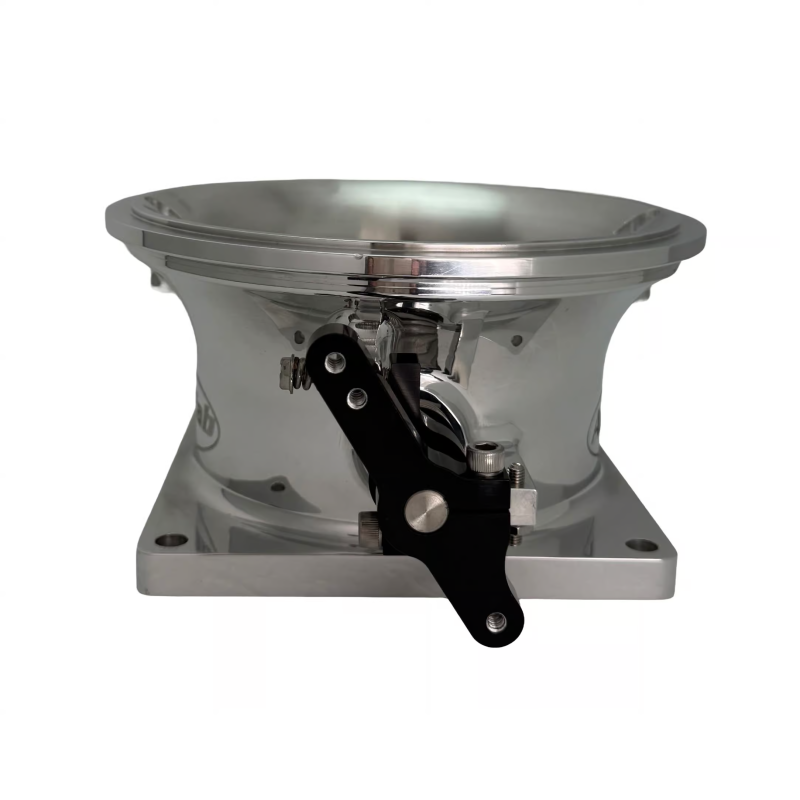

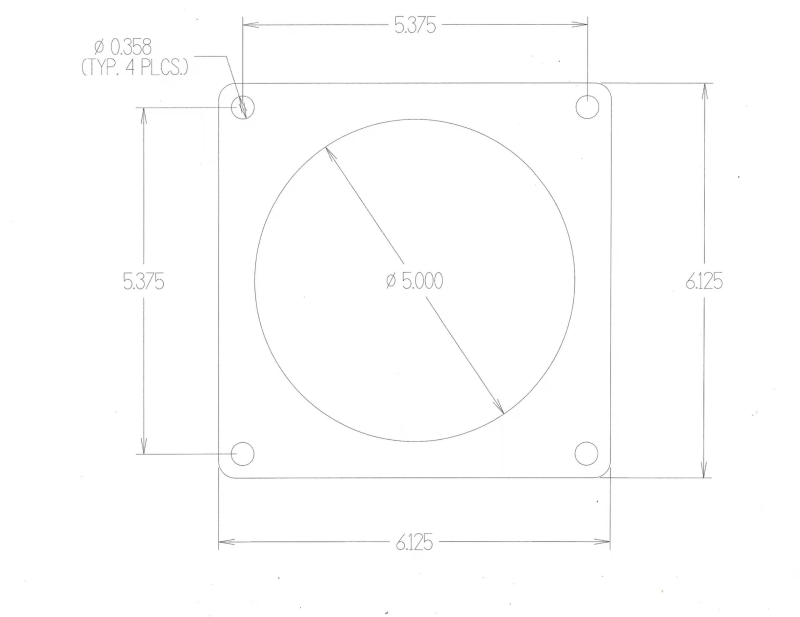

The Accufab 5″ bore Barrel Valve Throttle Body has the same bolt pattern as our 4500 Dominator style throttle body. Also, the inlet side is about 7 5/8″ wide at it’s widest point where the air cleaner sits. It’s approximately 4″ tall with twin linkage on both sides of the throttle body. There are no IAC or TPS provisions on the throttle body. This throttle body is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish or anodized black. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws.
Note: Air cleaner bracket is not included it can be added using the product options.
Note: Air cleaner bracket is not included it can be added using the product options.
Shipping: FREE continental USA ground shipping on ALL Accufab Throttle Bodies!
Pricing:
$809.99
Description

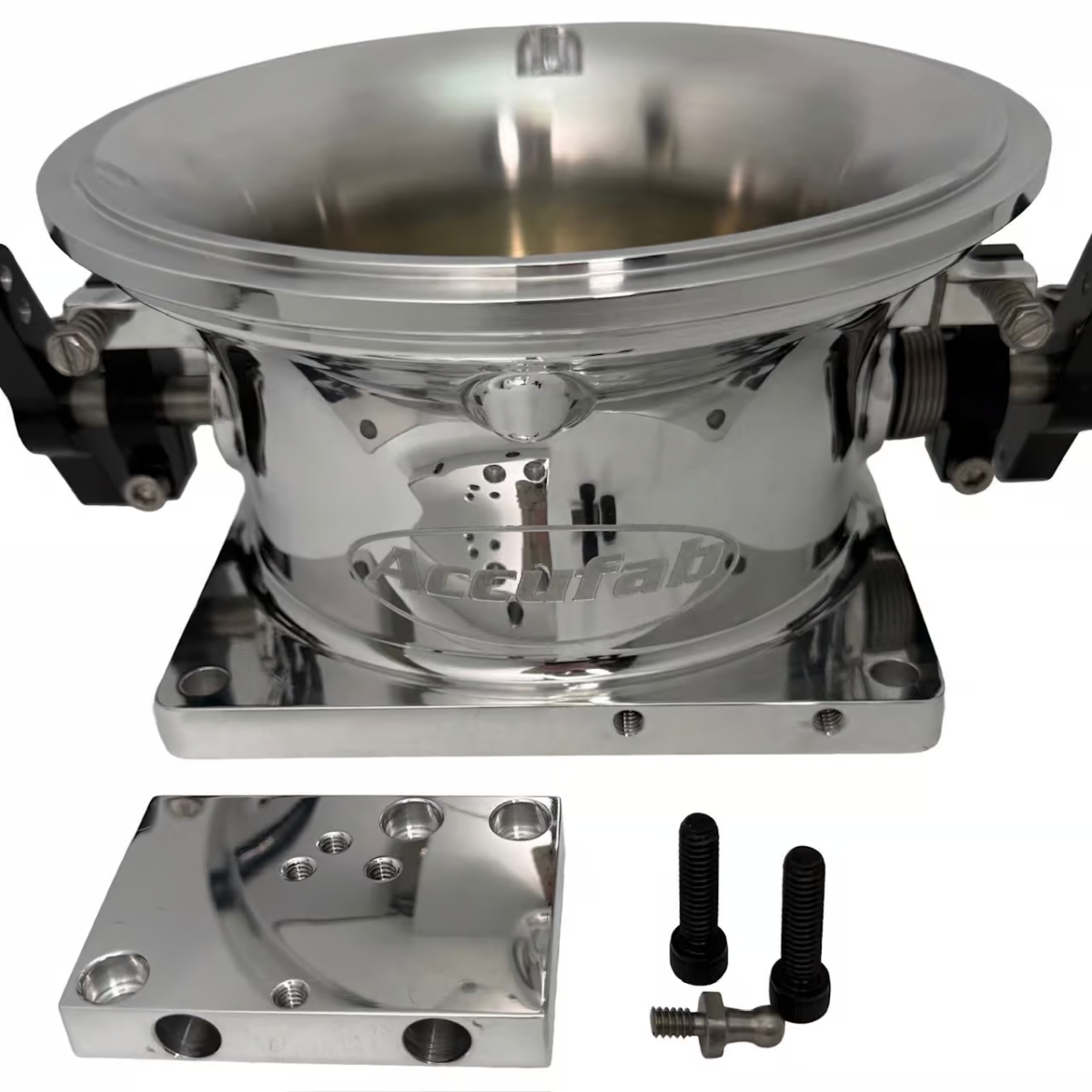

What’s in the box? Throttle body, base gasket, one 10/24 SS ball stud, mounting plate (for barrel valve) with two mounting screws.
No other parts are included. Air Cleaner bracket is sold separately and is available polished or black anodized. The air cleaner bracket center hole threads measures 1/4 -20.
Details
- ACCUFAB5
- ACCUFAB5
- Accufab Racing
- New
Shipping Information
- Item Requires Shipping
- 6.0 lbs.
- W8.0000” x H8.0000” x L5.0000”
