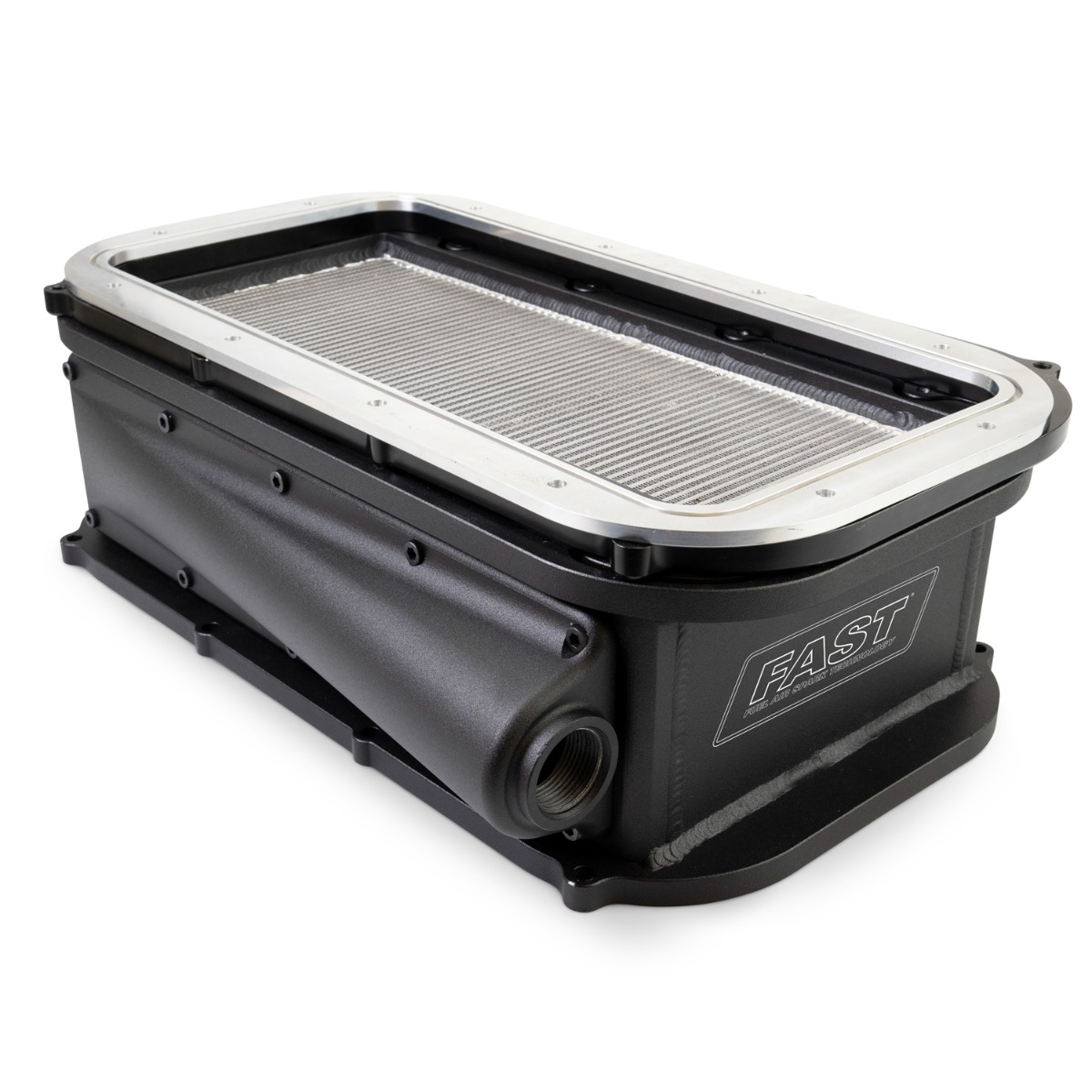

FAST Air-To-Water Intercooler for LSXHR Intake Manifolds - Rated to 1350HP
FST-148000
In Stock
Pricing:
$2,495.95
The LSXHR Intercooler is a perfect solution to cool the air charge on a centrifugal-supercharged or turbocharged engine using one of the popular high-ram style intake manifolds such as the FAST LSXHR composite manifold. This air-to-water intercooler conveniently fits between the upper and lower intake manifold, simplifying the installation, while saving space, time, and cost. Testing conducted on a 1,350 HP/20 PSI turbocharged-LSX application showed a 198-degree/F drop in temperature and less than 1psi loss across the intercooler. Rated to 1350HP.
Description
Features Include:
Convenient placement minimizes underhood piping fabrication
Large -16AN water inlet/outlets
Welded billet construction
O-ring sealing on both air and water sections Necessary hardware included
Durable black powder coated finish
Designed to work with the LSXHR 103mm Intake Manifold
Details
- FST-148000
- FST-148000
- FAST
- New
Categories
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W12.0000” x H12.0000” x L24.0000”
- Free Basic Shipping
