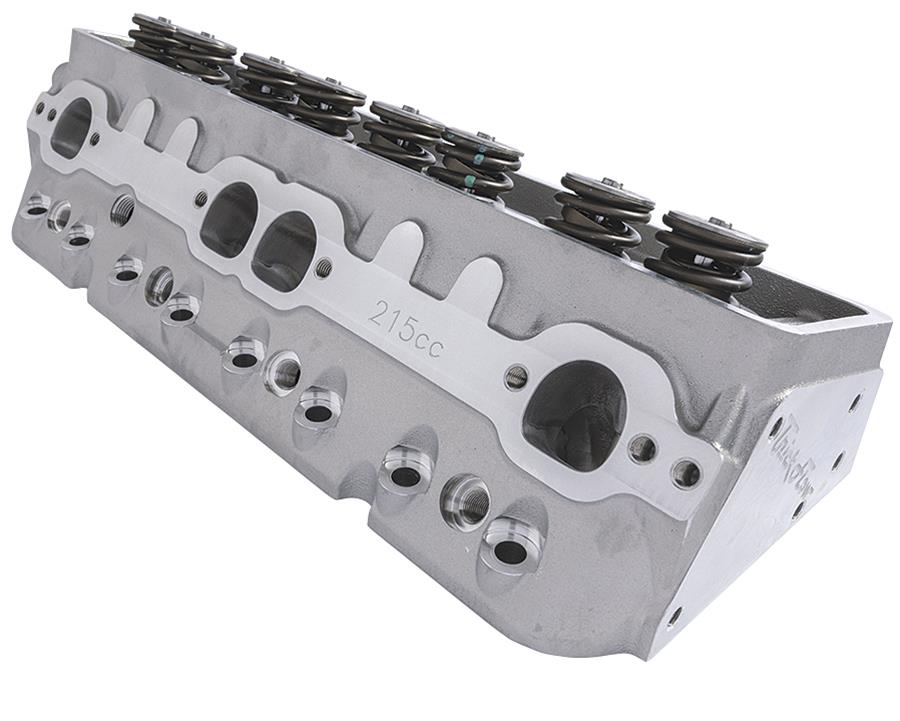

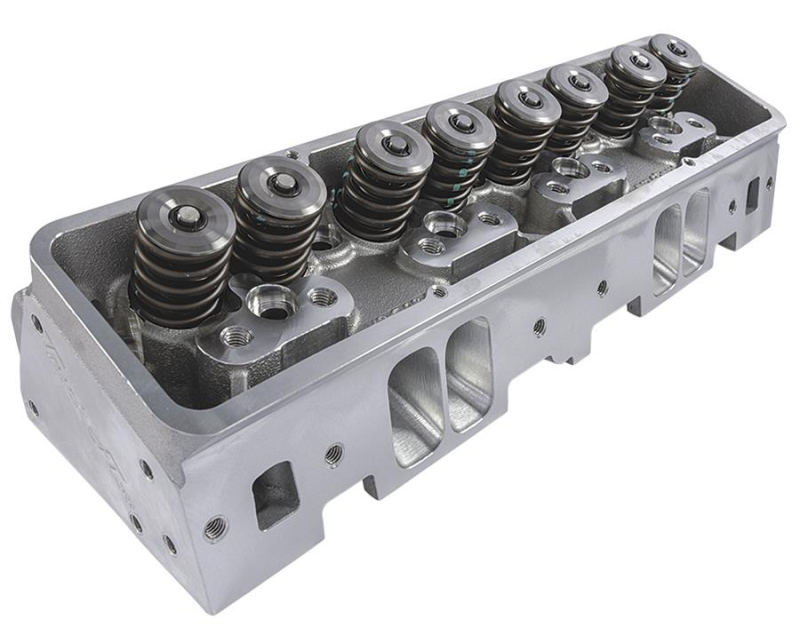

Trickflow Super 23® CNC Ported Cylinder Heads, SB Chevy, 215cc Intake, 67cc Chambers, Chromoly Retainers

TFS-32410006-C01

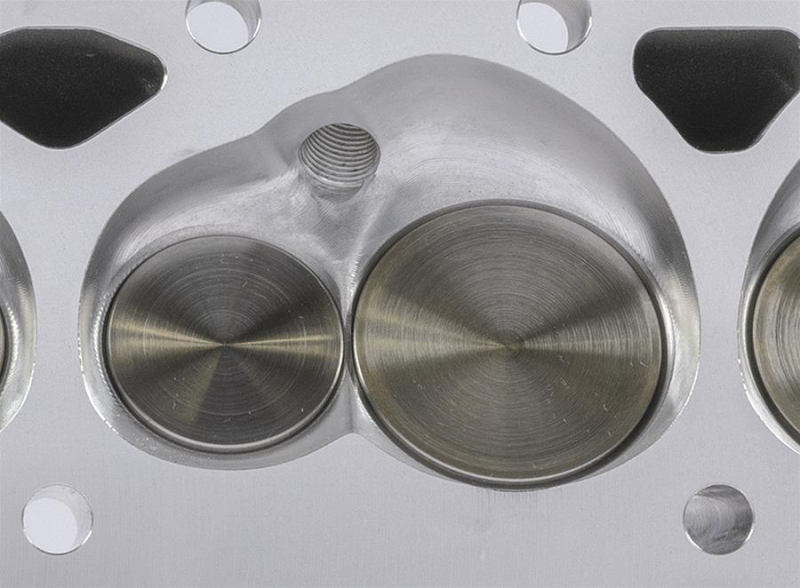

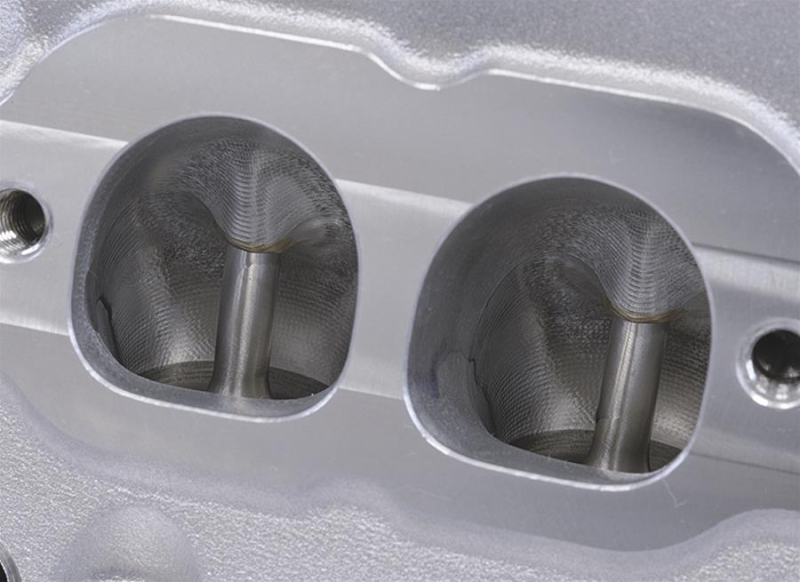

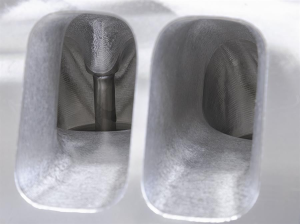

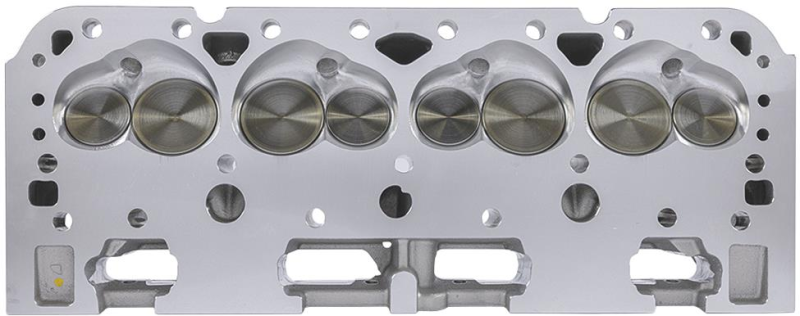

Trick Flow Super 23® 215 cylinder heads are a mainstay in the high-performance Chevy world. Based on the proven Super 23® head design, they’re packed with power-building features like 215cc intake runners for strong mid- and high-RPM power, angled spark plugs, raised valve cover rails, and extra-thick walls for added durability. But progress never sleeps, so Trick Flow developed an all-new Super 23® 215 cylinder head design that has a new and improved casting with a thicker 3/4" deck. Trick Flow also added their top-of-the-line, CNC Competition Ported runner treatment with fully CNC-machined combustion chambers. This premium high-resolution surface finish delivers more airflow so that race-ready engines can reach even higher power numbers. The standard 1.545" valve springs are perfect for most hydraulic roller cams. For more aggressive solid roller cam profiles, see PN: TFS-3241T007-C01 that feature 1.550" valve springs for proper control at high RPMs.

Trick Flow Super 23 215 heads are available fully assembled or as bare castings. Sold individually.

Note: 4.155 in. bore head gasket required.
Was: $1,424.99
Sale: $1,324.99
Save: 7%
Save: $100.00

Qty:
Free Basic Shipping

Description

Part Number: TFS-32410006-C01
Combustion Chamber Volume (cc): 67
Intake Runner Volume (cc): 215cc
Exhaust Runner Volume (cc): 78cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller/Solid flat tappet
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.080 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Standard
Exhaust Valve Diameter (in.): 1.600 in.
Maximum Valve Lift (in.): 0.680 in.
Outside Diameter of Outer Spring (in.): 1.545 in.
Number of Springs Per Valve: Dual
Retainer Material: Chromoly Steel
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Notes: Designed for mechanical roller camshafts. 4.155 in. bore head gasket required.

Details

  • TFS-32410006-C01
  • TFS-32410006-C01
  • Trickflow
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 40.0 lbs.
  • W12.0000” x H12.0000” x L24.0000”
