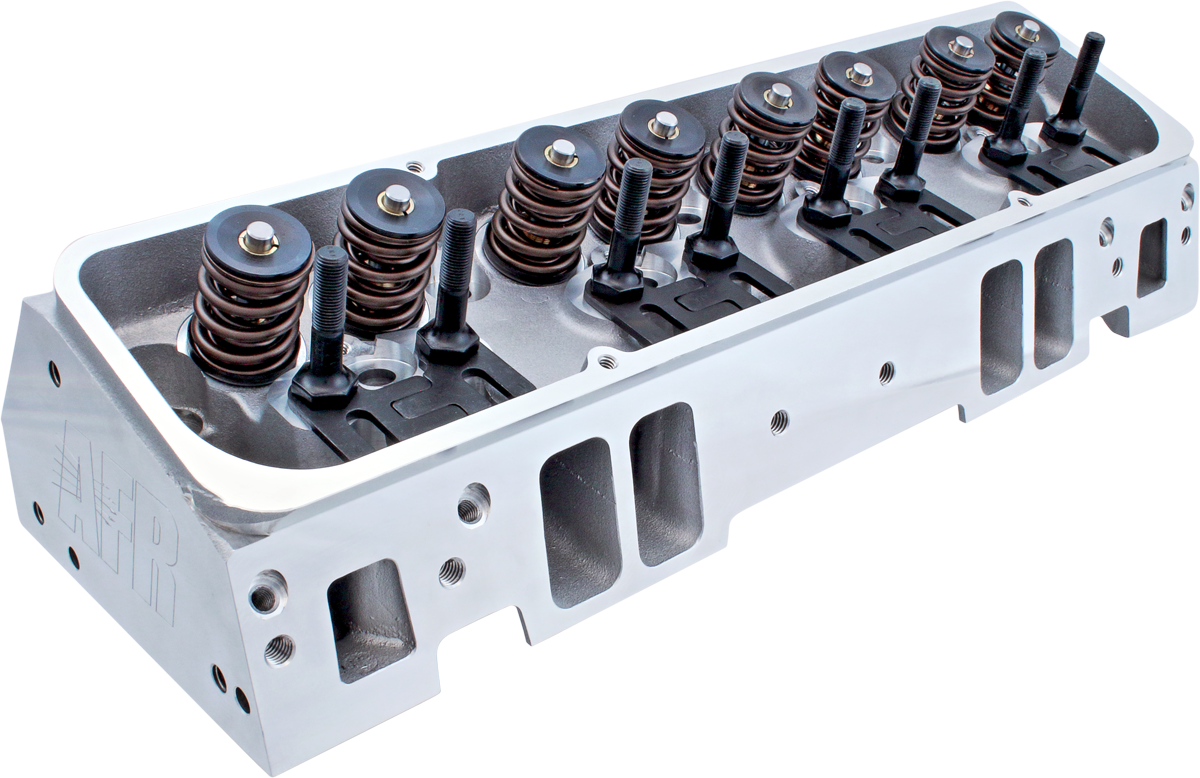

AFR Chevy 200cc Enforcer As-Cast SBC Cylinder Head, 69cc Chambers, Angle Plug, Assembled - Flat Tappet Springs
AFR 1016-FT
AFR is proud to announce the release of its NEW Enforcer series of As-Cast cylinder head. Comprised of four new budget-friendly cylinder head, this price conscience offerings come fully assembled and use the same high-quality components found in their higher-end CNC ported cylinder head, such as ARP rockers studs, .550 lift hydraulic flat tappet springs, Viton valve seals, hardened spring cups, ductile Iron seats, AFR adjustable guide plates, and their Stainless Steel valves.

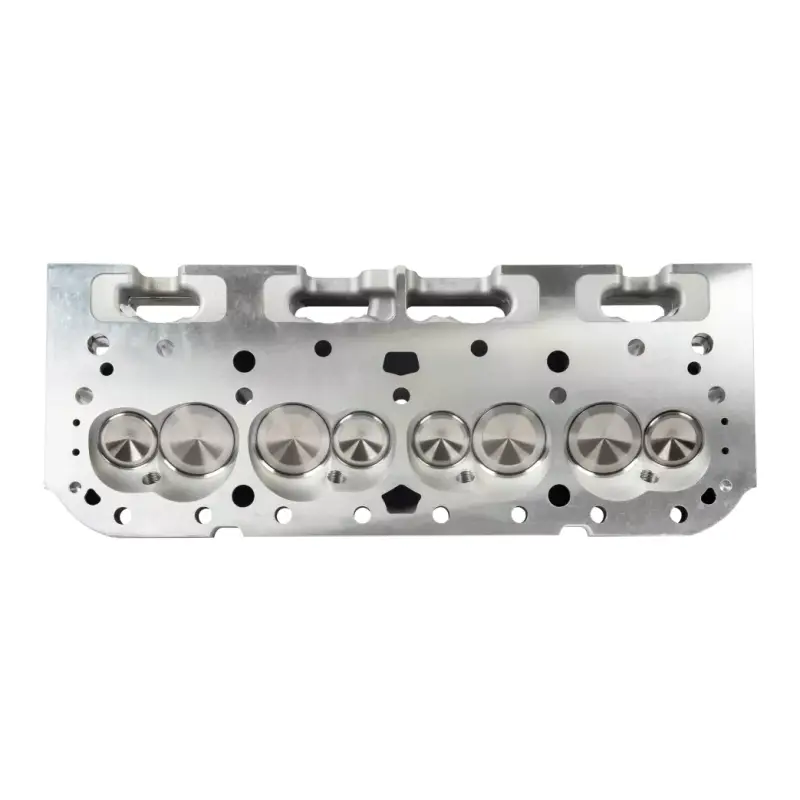

The head is made from a permanent mold casting that comes with As-Cast surfaces on the intake runners, exhaust runners, and combustion chambers. This head is a perfect choice for anyone looking to upgrade to an aluminum head with modern port designs for their muscle car or street rod.
Sold as a single piece, 2 pieces required per engine. Steam holes pre-drilled on these heads. Will work on any SBC block including 350 and 400.
The head is made from a permanent mold casting that comes with As-Cast surfaces on the intake runners, exhaust runners, and combustion chambers. This head is a perfect choice for anyone looking to upgrade to an aluminum head with modern port designs for their muscle car or street rod.
Sold as a single piece, 2 pieces required per engine. Steam holes pre-drilled on these heads. Will work on any SBC block including 350 and 400.
Limited Supply: only 4 remaining
Shipping: FREE continental USA ground shipping on ALL AFR Cylinder Heads
Was:
$790.00
Sale:
$689.00
Save:
13%
Save:
$101.00
Description
AFR's 200cc SBC Enforcer Cylinder head feature a Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 350 to 400 Cubic Inch operating below 6000 RPM.
| 200cc As Cast Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .550 | .600 | |
| Int | 138 | 192 | 233 | 260 | 265 | N/A |
| Exh | 108 | 142 | 170 | 195 | 200 | N/A |
Test conducted at 28" of water (pressure) on Superflow 600
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe
| Basic Package Components | Part # |
| As-Cast Combustion Chambers As-Cast Exhaust Ports As-Cast Intake Ports 3-angle Valve Job |
|
| 8mm Stainless Steel 2.050 x 4.900 O.A.L. Race Intake Valve | AFR #7252 |
| 8mm Stainless Steel 1.600 X 4.950 O.A.L. Race Exhaust Valve | AFR #7250 |
| AFR 1.437" OD Hydraulic Flat Tappet Dual Valve Spring, 125 lbs on seat, .550" maximum lift, Max RPM 6100-6300 | AFR #8020 |
| 7° Chrome Moly Retainers 1.245" O.D x .885" I.D x .655" I.D | AFR #8514 |
| 7° Bead Lock Valve Keepers | AFR #9007 |
| ARP 3/8" Rocker Studs | AFR #6409 |
| Adjustable 5/16" Guide Plates | AFR #6103 |
| 8mm LS Enforcer Viton Valve Seals .620" O.D x .490" I.D | AFR #6615 |
| Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D | AFR #8042 |
| Specifications, Features, and Optional Supporting Components |
| Head Material |
A356 Aluminum |
| Intake Port Volume | 200cc |
| Intake Port Dimension | 2.080" H x 1.270" x 5/16 Radius |
|
Intake Port Location
|
Stock |
| Exhaust Port Volume | 74cc |
| Exhaust Port Dimension | 1.450" H x 1.550" W |
| Exhaust Port Location |
Stock |
| Combustion Chamber Size |
69cc |
|
Valve Cover Bolt Pattern
|
Perimeter Bolt |
| Valve Angle |
23° |
| Valve Spring Pocket Diameter |
1.437" O.D |
| Max Valve Spring Pocket Machining |
1.580" O.D |
| Warning: Do not machine spring pad any deeper. |
|
|
Deck Thickness
|
.470" |
| Spark Plug Dimensions |
14mm x .750" w/Gasket Seat |
| Intake Port Gasket |
AFR #6900 |
| Exhaust Port Gasket |
AFR #6905 |
| Head Gasket, 350cid Fel-Pro #1003 |
AFR #6800 |
| Head Gasket, 400cid Fel-Pro #1014 |
AFR #6802 |
| SB Chevy Head Bolt Kit, ARP #134-3701 |
AFR #6310 |
| SB Chevy Head Stud Kit, 12 Point Nuts, ARP #234-4301 |
AFR #6305 |
| Head Bolt Washers, Manley |
AFR #6320 |
| Suggested Manifold |
AFR #4810 |
| Suggested Manifold |
AFR #4812 |
| Suggested Manifold |
RPM Performer or Vic Jr.
|
| Flat Mill | .006" per cc 56cc Maximum |
| Spark Plug Starting Range |
Autolite 3924 |
Note: Milling head deck will affect flow numbers.
These heads are perimeter bolt only, no option for center bolt. The heads have the 86' and older bolt pattern and the Vortec bolt pattern, but only the 86' and older intakes will work due to the port dimensions. The Vortec is a taller port and won't match.
