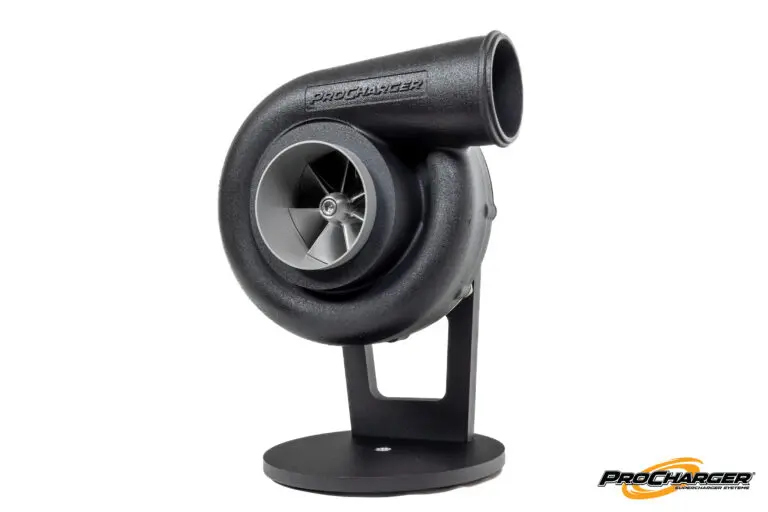

ATI F-1R-103 Procharger Supercharger Head Unit Only

PC-F-1R-103
This is an ATI / Procharger F-1R-103 Supercharger Head Unit only, satin finish, upgrades available, including helical gears, polishing, black powdercoat, pullies, and belts. This headunit is capable of producing 1580 horsepower!

The ProCharger F-1R-103 is the next evolution of the F-1X, delivering a major step up in performance with support for 1,580 horsepower, 1,800 CFM, and up to 36 psi of boost. The F-1R-130 brings back the legendary F-1R name and features a larger, redesigned inlet that significantly increases airflow, smaller housing for tighter applications and overall efficiency. Debuting at SEMA 2025, it’s built for those who want noticeably more power than the F-1X can offer.

Largest, Most Reliable Power Gains in the Industry.
Availability: Still in R&D, expected to be released mid 2026

Description

ProCharger F-1R-103 Supercharger:
The ProCharger F-1R-103 is a next-generation, high-performance supercharger head unit capable of supporting up to 1,580 horsepower, moving 1,800 CFM, and delivering 36 psi of boost. Introduced at SEMA 2025, it builds on the F-1X platform with a larger inlet for increased airflow while maintaining the same style F-series gearcase. Designed for enthusiasts who want serious, efficient power gains, the F-1R-103 is ideal for both street and strip applications.

ProCharger P-1X Specs:
Maximum Supercharged HP Rating: 1580HP
Maximum Airflow: 1,800 cfm
Maximum Boost: 36 psi
Inlet Diameter: 4" inches
Outlet Diameter: 3.5" inches
Maximum Impeller RPM: 65,000rpm
Internal Step-up Ratio: 4.10:1
Self-Contained Oiling: Yes
Reverse Rotation Available: Yes
