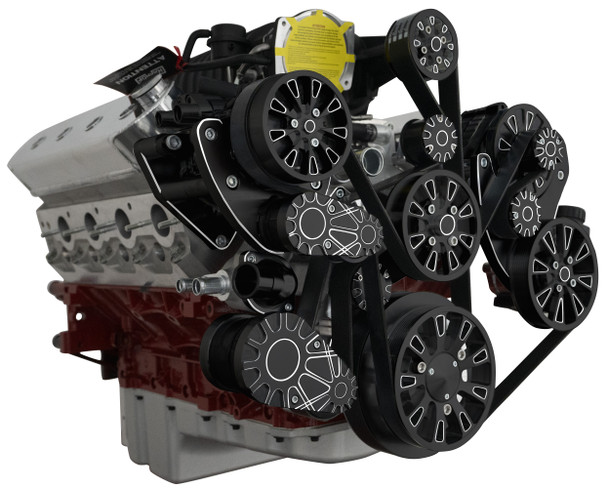

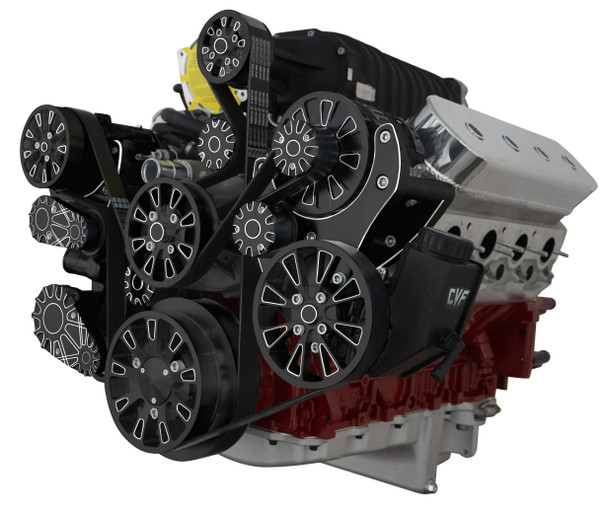

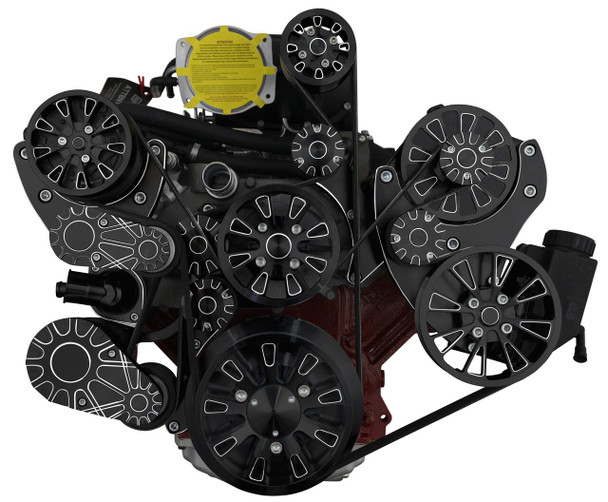

CVF Reaper LS 10-Rib FEAD System For Harrop TVS2300/TVS2650 Superchargers with AC, Power Steering and Alternator - Black Diamond
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.
This kit will fit LS Engines with Harrop TVS2300/TVS2650 Superchargers.
Note: This does not include any Harrop Supercharger can be added using the product options
Description
SYSTEM INCLUDES:
High Flow Aluminum LS1 Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator; upgradable to 300 amps
Sanden Style Peanut Compressor with 8 Rib Clutch (can be removed in the product options)
AC Compressor Fitting (can be removed in the product options)
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium 10 & 8 Rib Belts
Water Pump Pulley
Crank Pulley
Alternator Pulley
Power Steering Pulley (can be removed in the product options)
Spring Loaded Belt Tensioner with patent pending adjustable bracket
Billet Aluminum Brackets
Black Anodized Hub Adapter for attaching crank pulley to SFI or ATI balancers.
Billet Compressor Clutch Cover (can be removed in the product options)
Billet alternator fan
Stainless Steel Mounting Hardware
Billet Spacers
REQUIREMENTS:
Power Steering Lines from pump to reservoir not included
Compatible with Hydro-boost
Requires Forward Facing Inlet
Compatible with Harrop LS TVS2300 and TVS2650 superchargers
Details
- BD-LSXSCH-RP
- BD-LSXSCH-RP
- CVF Racing
- New
Shipping Information
- Item Requires Shipping
- 30.0 lbs.
- W20.0000” x H20.0000” x L10.0000”
