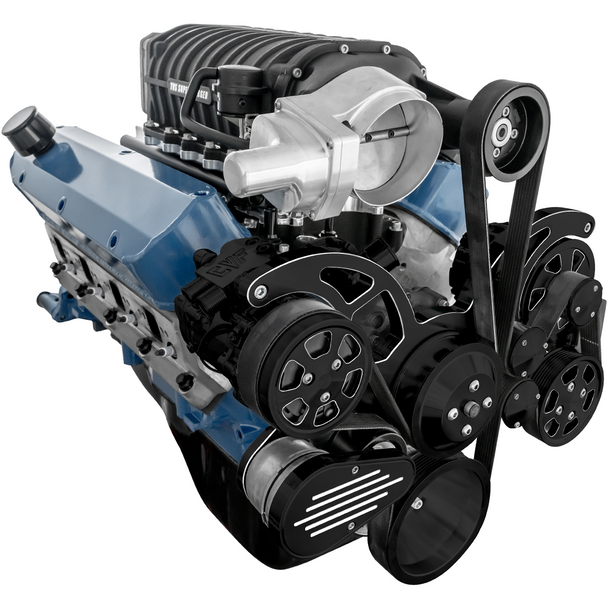

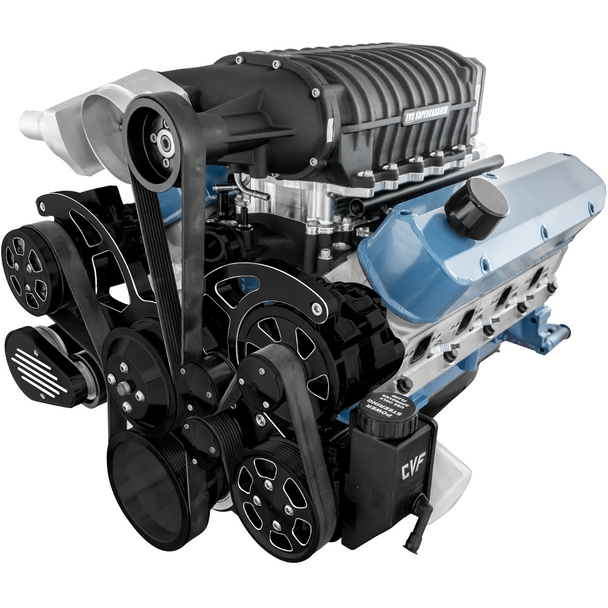

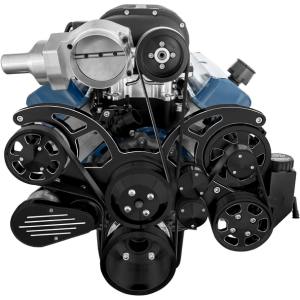

CVF Wraptor SBF 8-Rib FEAD System For Harrop TVS2650 Superchargers with AC, Power Steering and Alternator - Black Diamond
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.
This kit will fit SBF Engines with Harrop TVS2650 Superchargers.
Note: This does not include any Harrop Supercharger can be added using the product options
Description
WRAPTOR SYSTEM INCLUDES:
Cast Aluminum High Flow Water Pump (Reverse Rotation)
One Piece Bracket w/ hardware
Water Pump Pulley w/ decorative cap
CS130 140 amp Alternator
Alternator Pulley w/ decorative cap
Alternator Fan
GM Type II Remote Power Steering Pump (can be removed in the product options)
Remote Power Steering Reservoir (can be removed in the product options)
Power Steering Pulley (Bolt on) (can be removed in the product options)
Heavy Duty Gates Tensioner w/ decorative cap
90° AC Fitting
Crankshaft Pulley
*Belt and Blower pulley not included.
REQUIREMENTS:

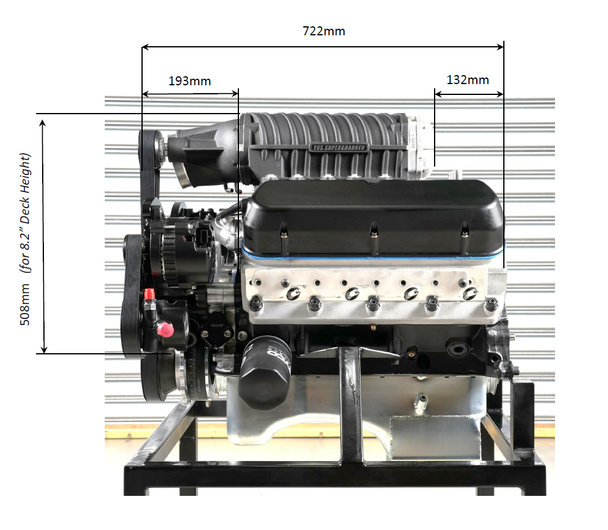

8.2" Deck Height (For 351 applications adapters are available)
Reverse Rotation Timing Cover (similar to Dorman 635-100)
ATI Balancer (externally balanced #918900 or internally balanced #918920)

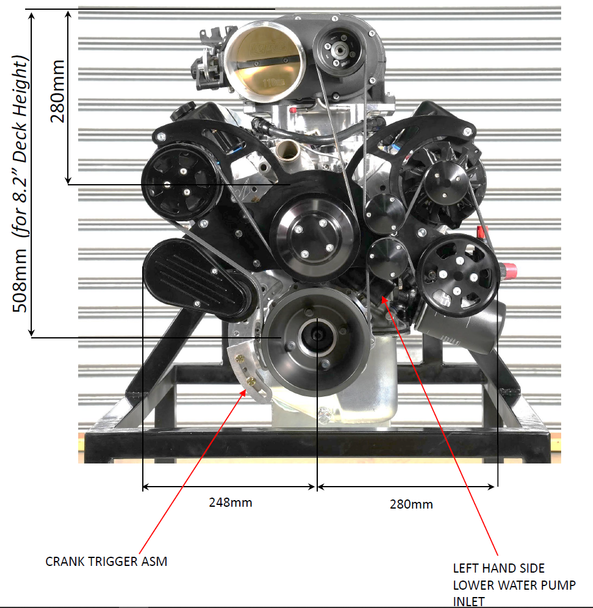

Innovators West #7001 Crank Trigger Assembly -- RIGHT side location STD
Details
- BD-302SCH-WRAPTOR
- BD-302SCH-WRAPTOR
- CVF Racing
- New
Shipping Information
- Item Requires Shipping
- 30.0 lbs.
- W20.0000” x H20.0000” x L10.0000”
