CVF Wraptor SBF 8-Rib FEAD System For Harrop TVS2650 Superchargers with AC, Power Steering and Alternator - Polished
302SCH-WRAPTOR
All Inclusive WRAPTOR 8-rib Front Drive System for kit Chevy SBF engines with Air Conditioning, Power Steering and Alternator all on a single belt. 800+ HP from your Small Block Ford Engine? Look no further than this CVF Wraptor and Harrop Supercharger! Engineers from CVF Racing and Harrop have worked closely in developing one of the strongest superchargers on the market today without needing to sacrifice style.
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.
This kit will fit SBF Engines with Harrop TVS2650 Superchargers.
Note: This does not include any Harrop Supercharger can be added using the product options
This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.
This kit will fit SBF Engines with Harrop TVS2650 Superchargers.
Note: This does not include any Harrop Supercharger can be added using the product options
Was:
$2,195.00
Sale:
$1,995.00
Save:
9%
Save:
$200.00
Description
WRAPTOR SYSTEM INCLUDES:
Cast Aluminum High Flow Water Pump (Reverse Rotation)
One Piece Bracket w/ hardware
Water Pump Pulley w/ decorative cap
CS130 140 amp Alternator
Alternator Pulley w/ decorative cap
Alternator Fan
GM Type II Remote Power Steering Pump
Remote Power Steering Reservoir
Power Steering Pulley (Bolt on)
Heavy Duty Gates Tensioner w/ decorative cap
90° AC Fitting
Crankshaft Pulley
*Belt and Blower pulley not included.
REQUIREMENTS:

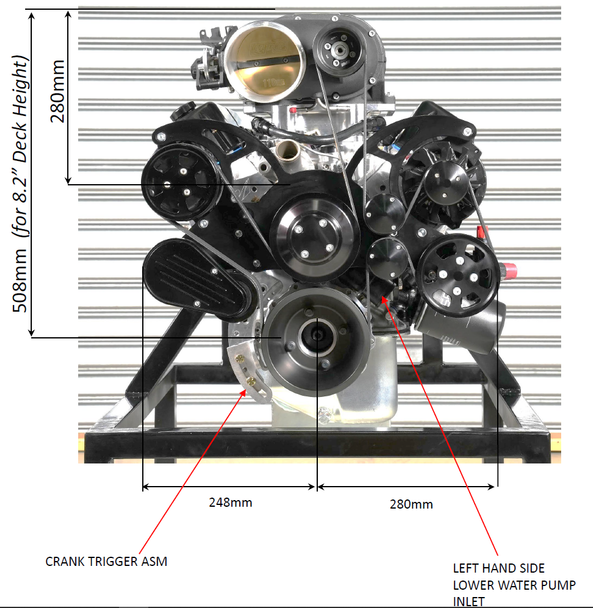

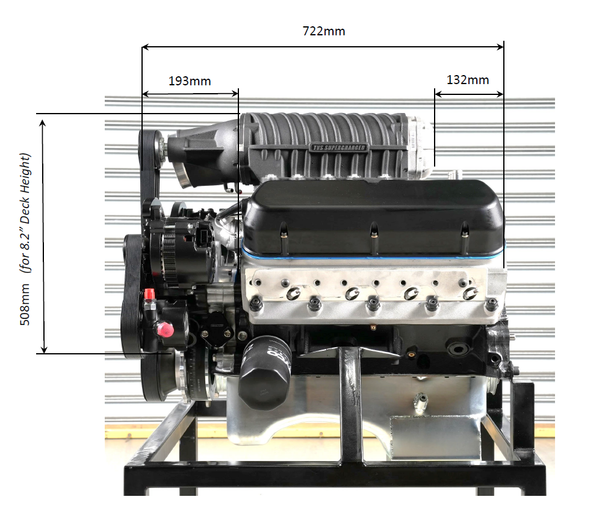

8.2" Deck Height (For 351 applications adapters are available)
Reverse Rotation Timing Cover (similar to Dorman 635-100)
ATI Balancer (externally balanced #918900 or internally balanced #918920)
Innovators West #7001 Crank Trigger Assembly -- RIGHT side location STD
Details
- 302SCH-WRAPTOR
- 302SCH-WRAPTOR
- CVF Racing
- New
Shipping Information
- Item Requires Shipping
- 30.0 lbs.
- W20.0000” x H20.0000” x L10.0000”
