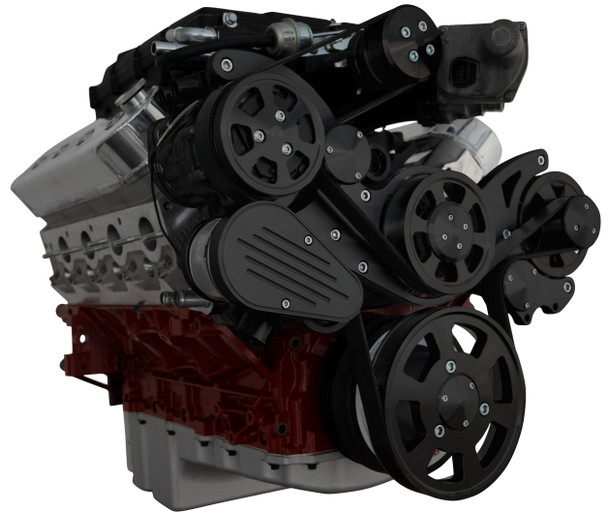

CVF Wraptor LS 8-Rib FEAD System For Edelbrock Superchargers with AC, Power Steering and Alternator - Black (Camaro Spacing)

B-LSXEB-WRAPTOR

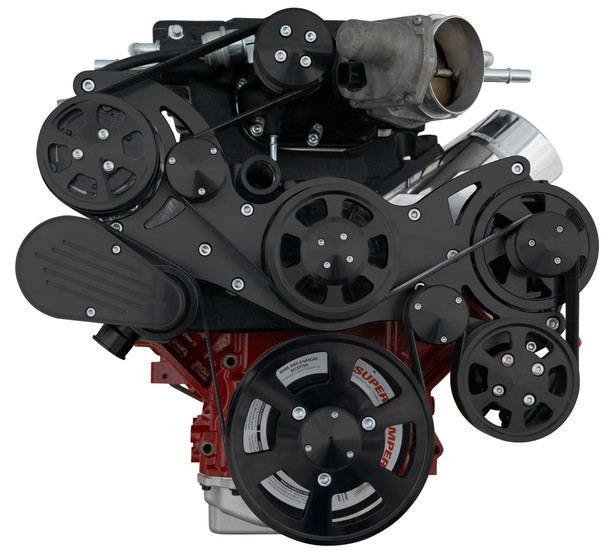

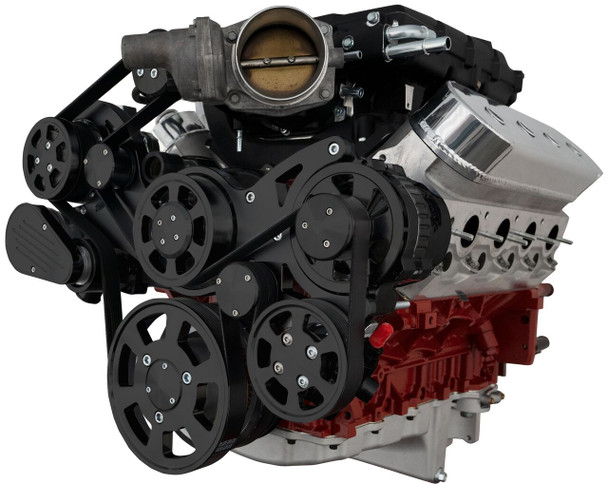

All Inclusive WRAPTOR 8-rib Front Drive System for kit Chevy LS engines with Air Conditioning, Power Steering and Alternator all on a single belt. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump.

This system includes all the brackets and accessories if you're not running AC or Power Steering see the product options to remove those items.

This kit will fit LS Engines with Camaro Spacing Edelbrock Superchargers.

Note: This does not include any Edelbrock Supercharger. (compatible with EDL-15420, EDL-15450 and EDL-15470 Superchargers)
Was: $2,380.00
Sale: $2,280.00
Save: 4%
Save: $100.00

Customize Your Item

- Alternator Options -
- Add Billet Thermostat Housing -
- Balancer Options -
- Add Power Steering Lines -
- Power Steering Options -
- System Configurations -
Qty:
Free Basic Shipping

Description

WRAPTOR SYSTEM INCLUDES:
High Flow Aluminum Water Pump
GM Type II Power Steering Pump (can be removed in the product options)
140 Amp, 1-Wire CS130 Alternator
Remote Mount Reservoir with Mounting Bracket (can be removed in the product options)
Gates Premium 8 Rib Belt
8 Rib Water Pump Pulley
8 Rib Crank Pulley
8 Rib Alternator Pulley
8 Rib Power Steering Pulley (can be removed in the product options)
Gates Spring Loaded Idler Pulley
Single Piece Bracket
Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
Billet alternator fan
Blower Snout Hub Adapter
Blower Pulley with Cap

APPLICATION NOTES:
Fits LS Based Engines with Camaro spacing for Edelbrock Supercharger
Compatible with 15420, 15450 and 15470 Superchargers
Power Steering Lines from pump to reservoir not included
Standard 3" pulley provides 8.6 PSI boost
Some drive by wire applications may require Holley part# 717-15
Requires 90º Thermostat Housing

Details

  • B-LSXEB-WRAPTOR
  • B-LSXEB-WRAPTOR
  • CVF Racing
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
  • W20.0000” x H20.0000” x L10.0000”
  • Free Basic Shipping

  • Have a question? Ask the Pros
  • 877-514-9494Mon - Fri 8:00 AM - 4:00 PM PST
