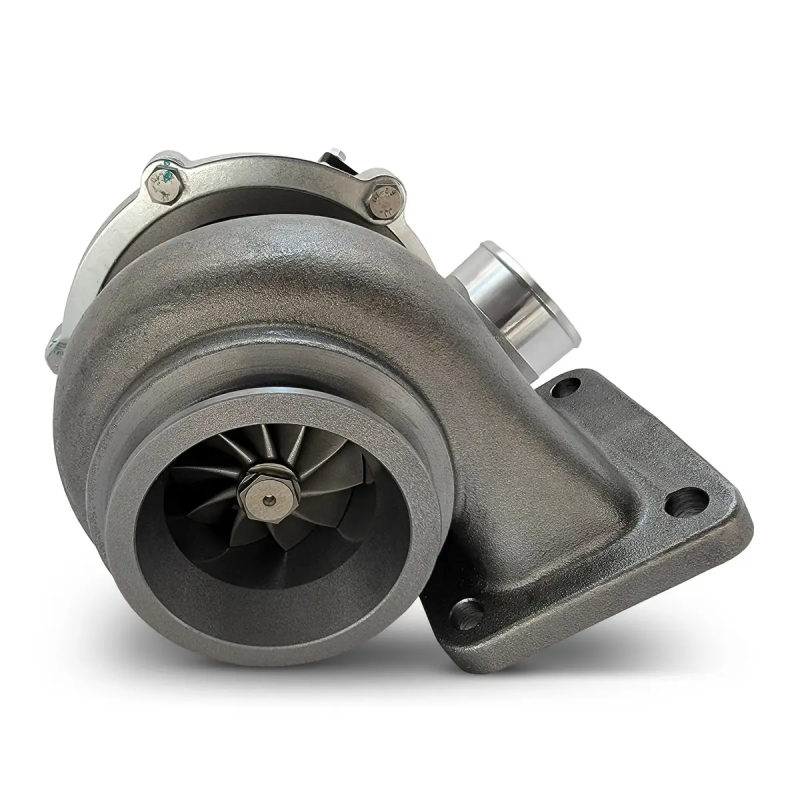

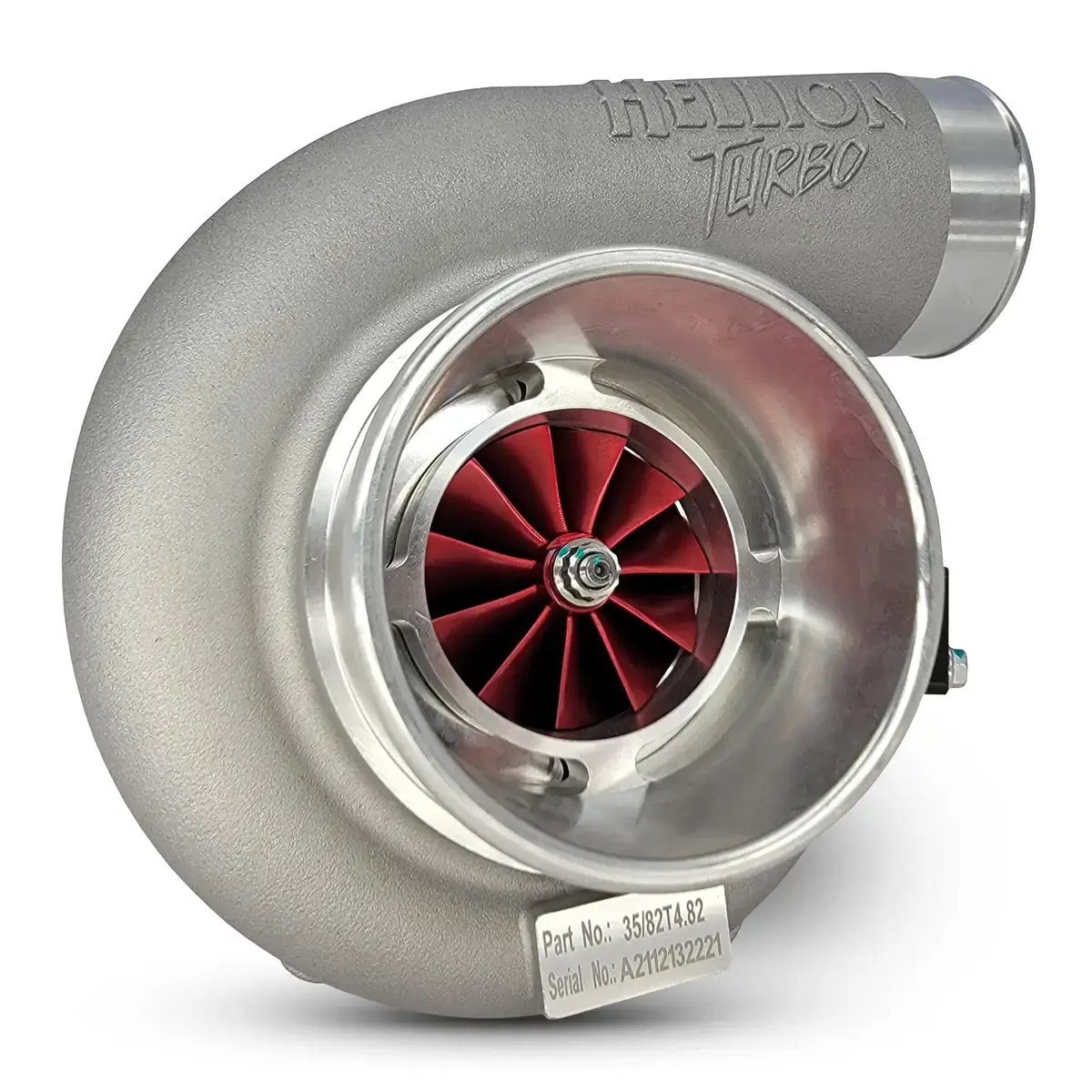

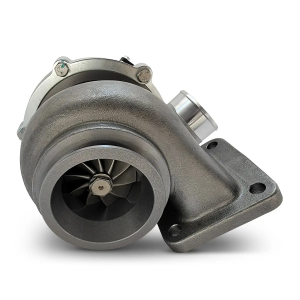

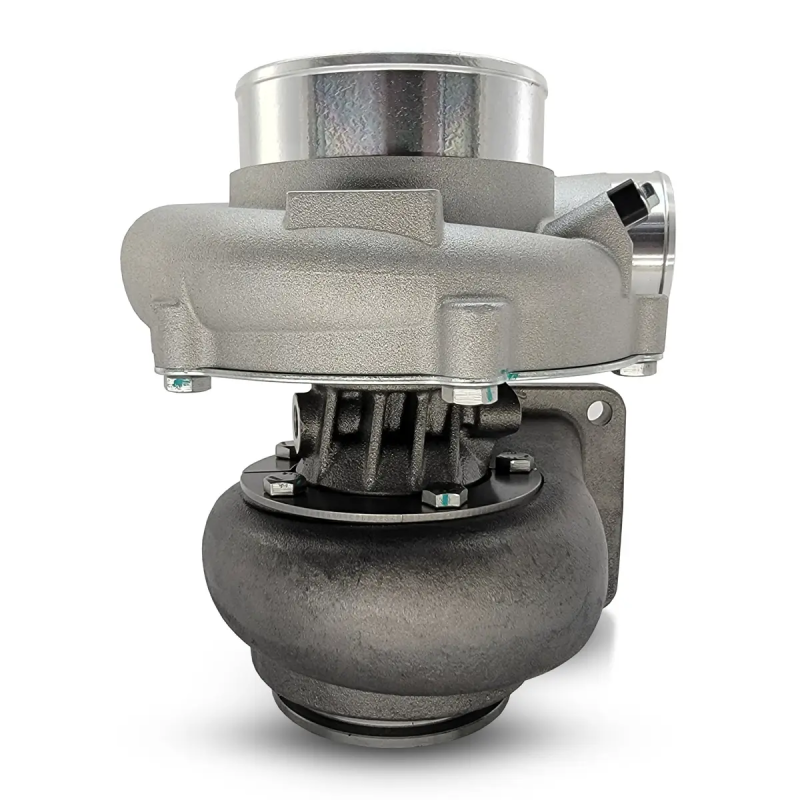

Hellion 62mm Universal B-Series 62/62B Turbocharger w/ Billet Compressor Wheel - T4 Inlet Flange (790 Max HP)

There are many options available for Hellion Turbo kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

Specifications:
Max HP: 790
Bearing Type: Ball
Compressor Inducer (MM): 62
Ported Shroud: Yes
Turbine Exducer (MM): 62
Turbine Inlet: T4
Turbine Outlet: V-Band
Turbine A/R: 0.81
Turbine Scroll: Single

Features:
11-blade billet compressor wheel that offers an affordable performance upgrade from our base cast wheel units.
4” inlet and 2.5” outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size – with increased performance.
Integrated speed sensor port.
Modernized dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.
High-flow 62mm turbine wheel and industry standard high performance turbine housing to maximize the inlet and outlet exhaust flow.
4-bolt inlet / 3″ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.
