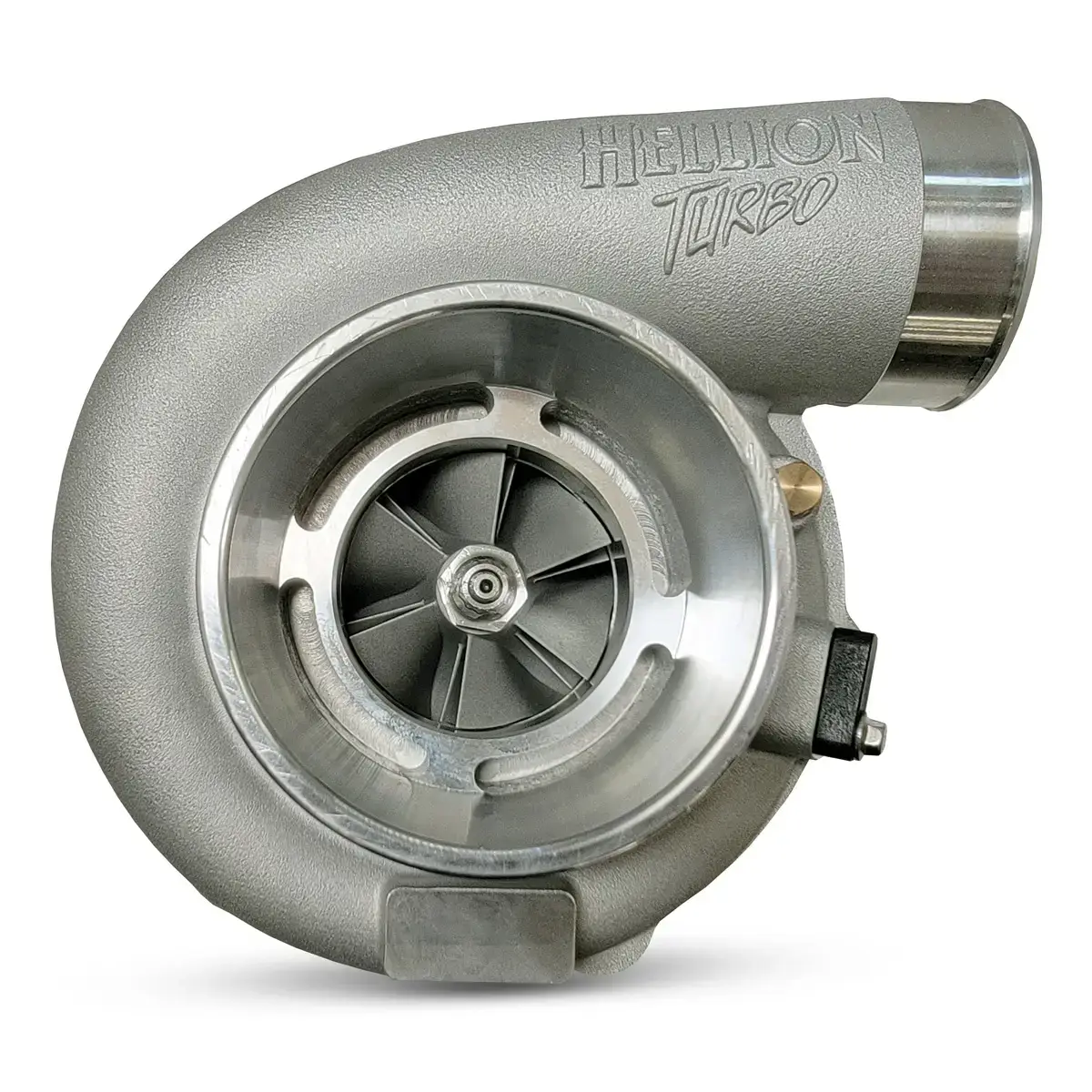

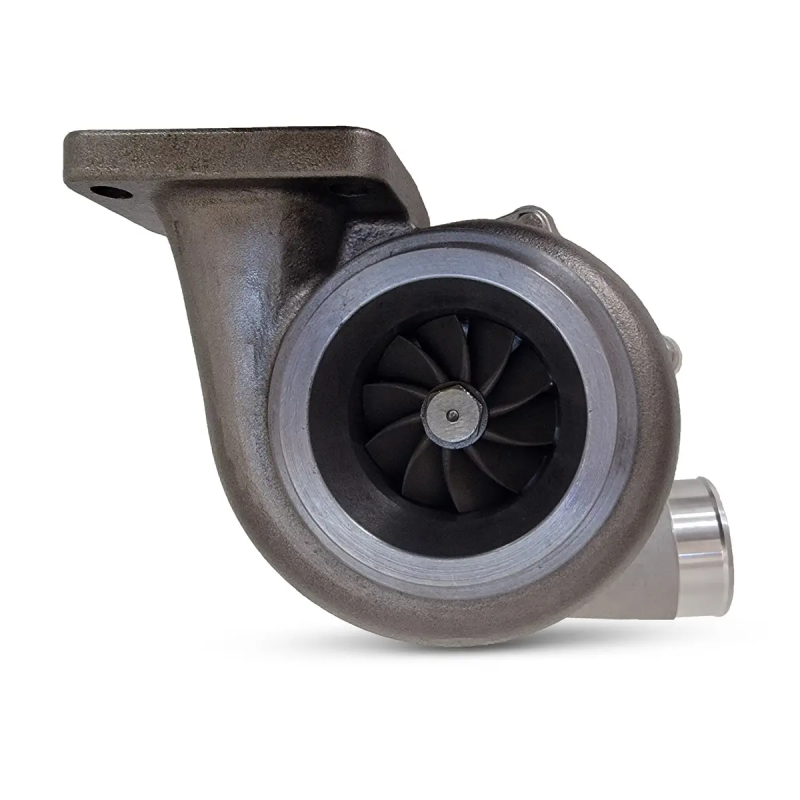

Hellion 62mm Universal 62/62 Turbocharger - T4 Inlet Flange (700 Max HP)

HT-6262-T4
The Hellion 62/62 T4 turbo is the benchmark unit for our game changing sleeper turbo systems. These turbos feature a cast 62mm compressor wheel and industry standard journal bearing housing. The turbine has a 62mm exducer and uses a T4 4-bolt inlet and 3″ v-band outlet housing. This unit comes standard with a 2-year warranty.

Note: For those looking to run twin-turbos add 2 to cart.
Shipping: FREE continental USA ground shipping on ALL Hellion Turbocharger Systems!
Pricing: $1,099.00

Qty:
Free Basic Shipping

Description

There are many options available for Hellion Turbo kits. If you have any questions please email sales@TREperformance.com or call 760-586-5617.

Specifications:
Max HP: 700
Bearing Type: Journal
Compressor Inducer (MM): 62
Ported Shroud: Yes
Turbine Exducer (MM): 62
Turbine Inlet: T4
Turbine Outlet: V-Band
Turbine A/R: 0.81
Turbine Scroll: Single

Features:
62mm compressor wheel.
4” inlet / 2.5” outlet / .70 A/R compressor cover with and anti-surge ports standard.
62mm turbine wheel.
Journal bearing center section.
Integrated speed sensor port.
4-bolt inlet / 3″ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.



Details

  • HT-6262-T4
  • HT-6262-T4
  • Hellion Turbo
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W48.0000” x H18.0000” x L18.0000”
  • Free Basic Shipping
  • This item ships in its own box.
  • FREE continental USA ground shipping on ALL Hellion Turbocharger Systems!
