Harrop FDFI TVS2650 MK2 Supercharger Intercooled LT Hot Rod Kit
The TVS2650 MK2 Supercharger Kit is the ultimate system for LT engine equipped or retrofitted vehicles. Having been extensively tested and developed for over two years using SAE standards, the R2650 is validated to OEM specifications and resets the performance potential for positive displacement supercharger technology. Each unit is then individually tested in-house on a dynamometer to ensure reliability and durability. The all new TVS2650 MK2 will give you better IAT's, you can expect an increase of 25-40HP+ compared to the TVS2650 MK1 Blower, while maintaining identical boost levels and is a more efficient blower overall. We also offer a factory CNC ported blower for max effort builds!
This kit includes only the supercharger and built-in intercooler and intake manifold system. No heat exchanger, piping, fuel system, or any other parts.

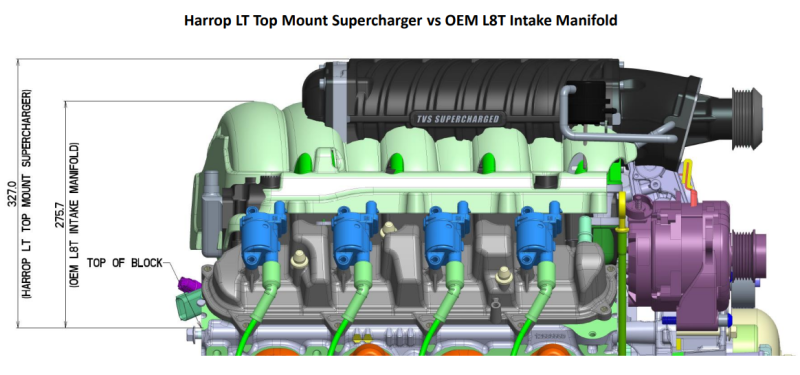

Note: Not sure what port or air inlet you need see picture 5 for examples.

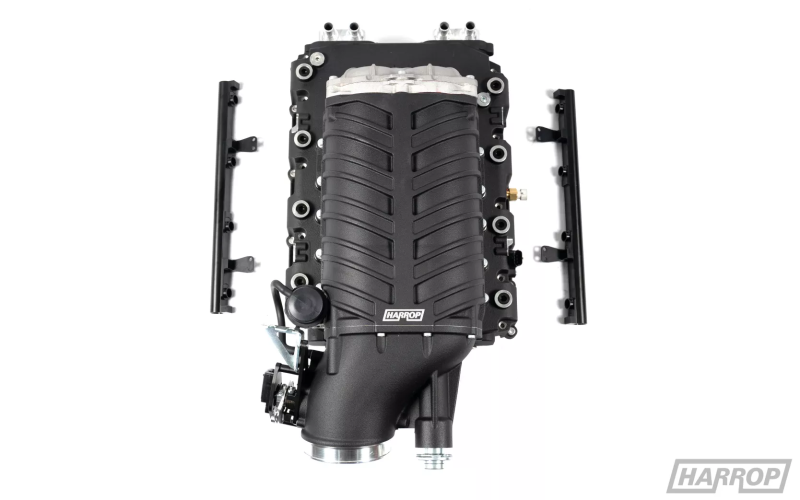

*Notice, fuel rails are not included picture is for reference for those who want the port injection fuel rails they can be added using the product options.
Description
Details:
Horsepower Gain: Depends on tuning - TVS2650 MK2 Supercharger is capable of producing 1100+ hp with further supporting modifications. (For anyone looking to make more then 750HP we recommend adding the port injection fuel rails which required DI injector plugs or getting a port injection plate.)
Featuring Eaton R2650 rotating group with 170 degree lobe helix angle for unrivaled thermal efficiency
Each supercharger comes prefilled with oil and is ran up to verify functionality before leaving the factory.
TVS2650 MK2 rotating group is proven to be 1200+ HP capable
Utilising the latest in Eaton TVS technology with 170-degree twist lobes
25 percent more airflow at 18,000 RPM and 14 psi boost than R2300
High-efficiency water to air integrated intercooler system
Integrated by-pass for improved driveability
GM Factory and 102mm Aftermarket throttle body compatible
Drilled for LT1 & LT4 Cylinder Heads
Can be spec'd for L8T Belt Line (6 or 8-Rib), LT1 Belt Line (8-Rib), LT4 Belt line (8-Rib), L83/L84 belt line (6-Rib) & L86/L87 Belt Line (6-Rib)

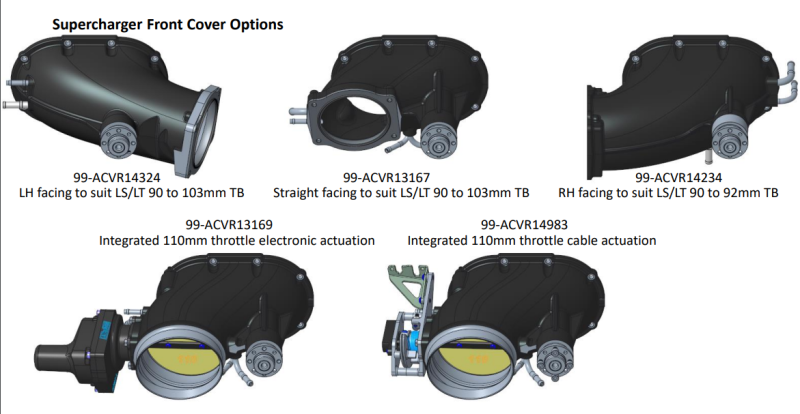

Choice of 5 different front covers to suit various airbox setups and throttle body needs
Engine Fitment:
LT1/LT4 6.2L
L8T 6.6L
L83/L84 5.3L
L86/L87 6.2L
This System Includes:
High efficiency 2650 MK2 front drive front inlet supercharger
Cast inlet manifold including twin intercooler cores, fuel rails and IAT sensor
Supercharger Pulley
This System Does Not Include:
Intake (CAI or OTR)
Throttle body
Patch looms/Harnesses
Injectors
Intercooler kit /front mount heat exchanger
Install kit including loom extensions, hoses and fittings
MAP sensor
