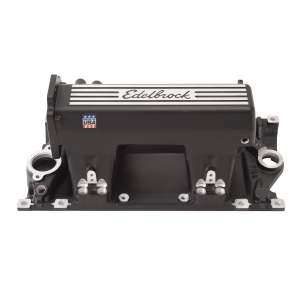

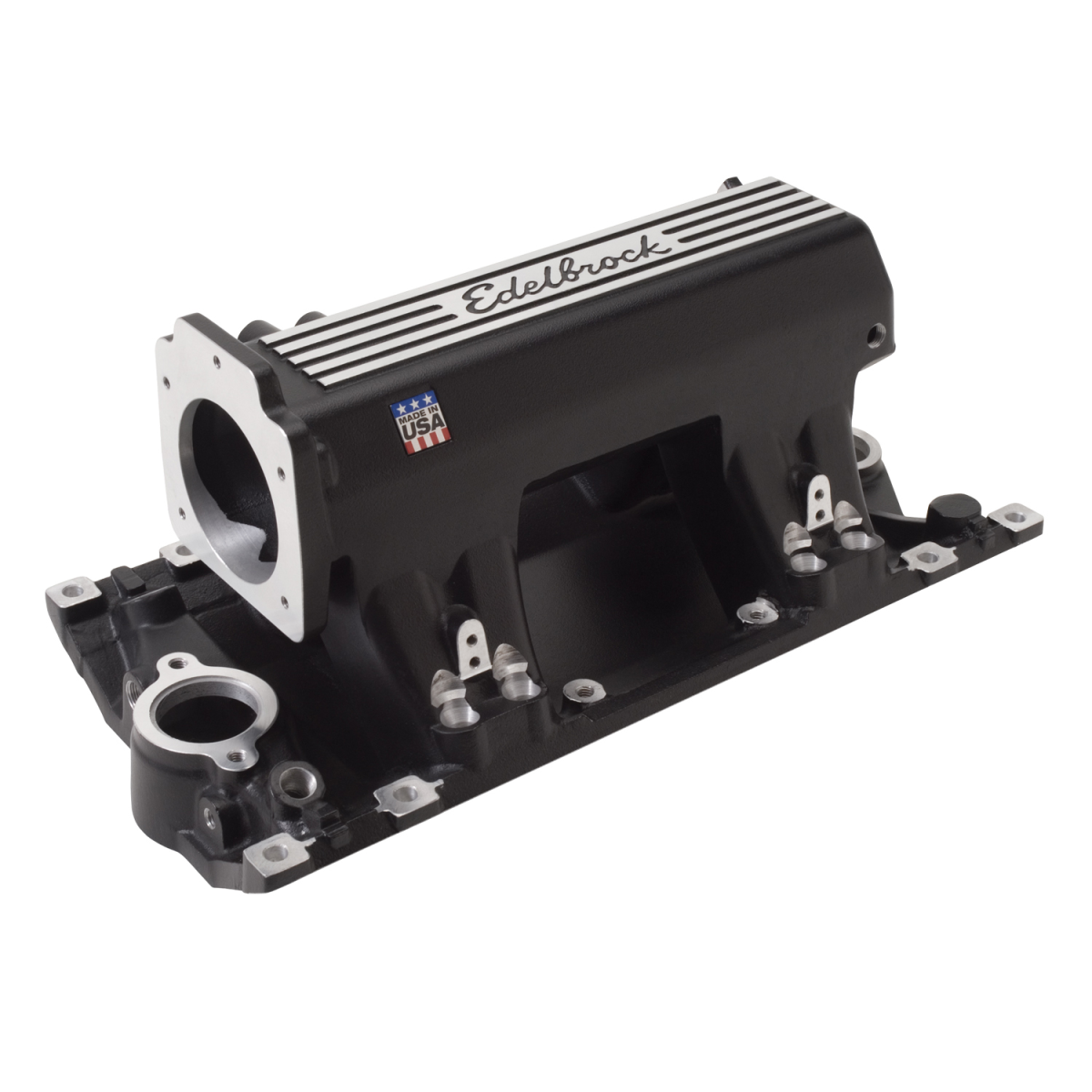

Edelbrock Pro-Flo XT SBC Vortec EFI Intake Manifold - Black

Installation Notes:
Recommended gasket: Edelbrock #7235
Manifold Dimensions: A-9.00", B-8.20", C-14.80"
Compatible with Edelbrock #3869 90mm Pro-Flo XT Throttle body.
90mm single throttle bore opening.
Throttle bracket included
A bracket for mounting an LS1 style MAP sensor is included
Machined for a Edelbrock #36019 LS1 style MAP sensor, which mounts directly on the manifold.
The Edelbrock #3627 Fuel rail kit including provisions for either Pico or standard height injectors is available separately.
The throttle body centerline is located 2.5” behind and 6.07” above the front edge of the front end seal surface.
Fits late model low profile water neck (such as TransDapt 9929 or GM 12342024 chrome thermostat housing)
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
