Edelbrock Pro-Flo 4+ Gen III/IV LS Engine Swap EFI Engine Management System - 54x/24x DBW

Edelbrock Pro-Flo 4+ kit #36130 is an EFI engine management system that simplifies the installation of a modern factory Chevy Gen III/IV LS engine with EFI and drive-by-wire (DBW) into a non-EFI muscle car, truck or hot rod. Pro-Flo 4+ allows you to leave the factory ECU and wiring harnesses at the junkyard by providing a plug-and-play control system that is specially designed for the Gen III/IV LS engine, implementing DBW throttle that is calibrated for best performance in hot rod engine swap applications and is fully compatible with all factory actuators.

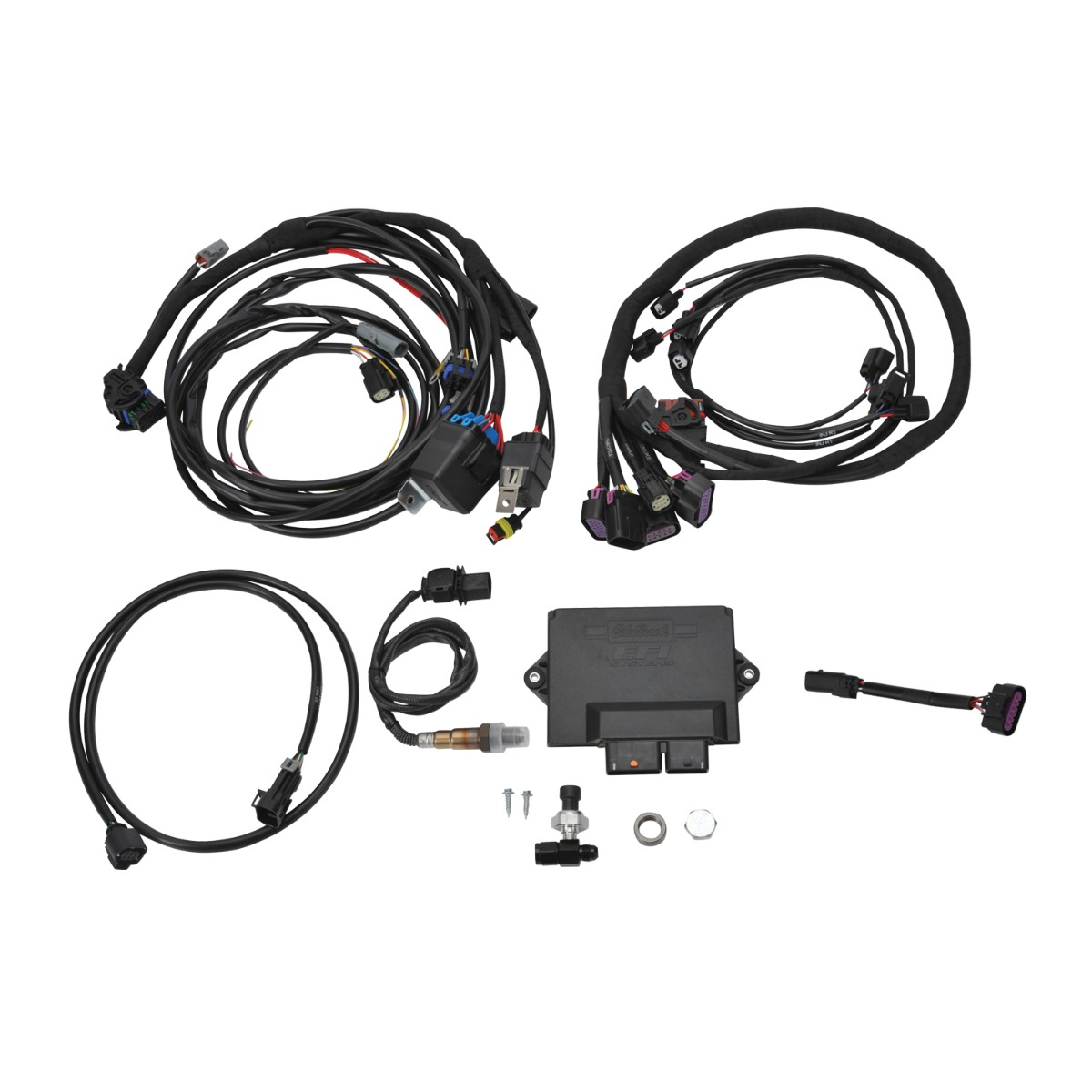

This system also supports dual DBW throttle bodies for use with the Cross-Ram LS3 intake manifold. Pro-Flo 4+ kit #36130 includes an ECU with base calibration; OEM-style wiring harnesses; MAP, O2, and fuel pressure sensors. Note that some supporting wiring harnesses for drive-by-wire and alternator configuration are necessary determined by the reluctor wheel (either 24x or 58x). LS applications implement a speed density fueling strategy using an OEM MAP sensor which eliminates the factory MAF sensor, inlet air piping and air box. This allows unlimited options in your air intake design.
