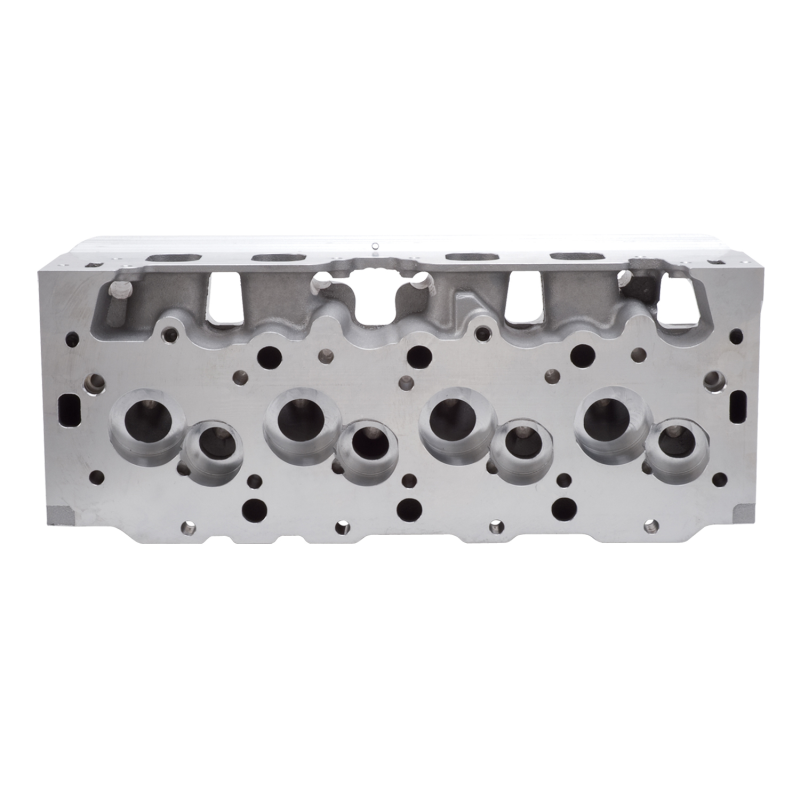

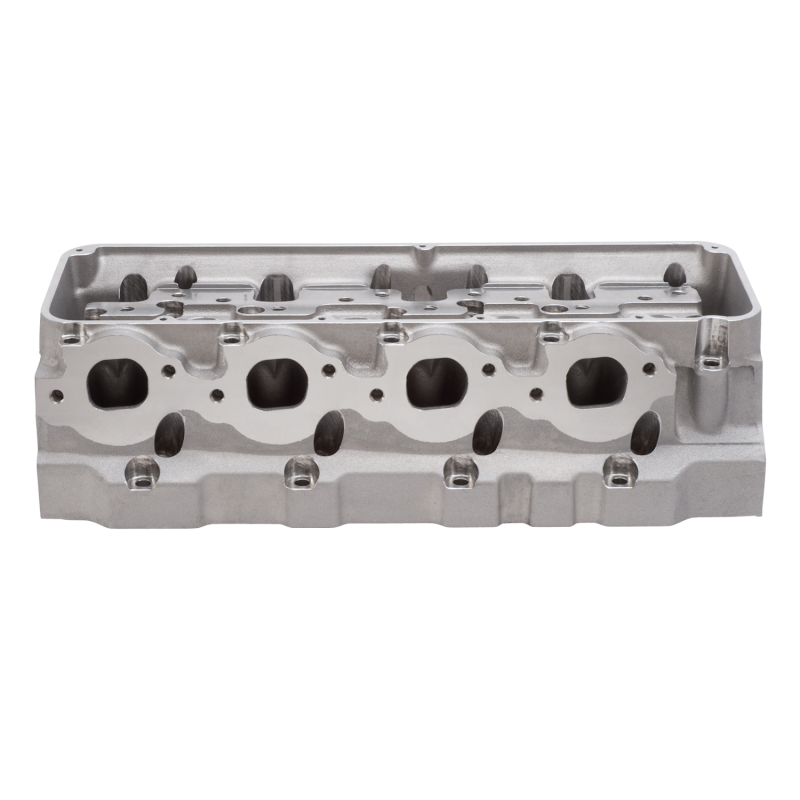

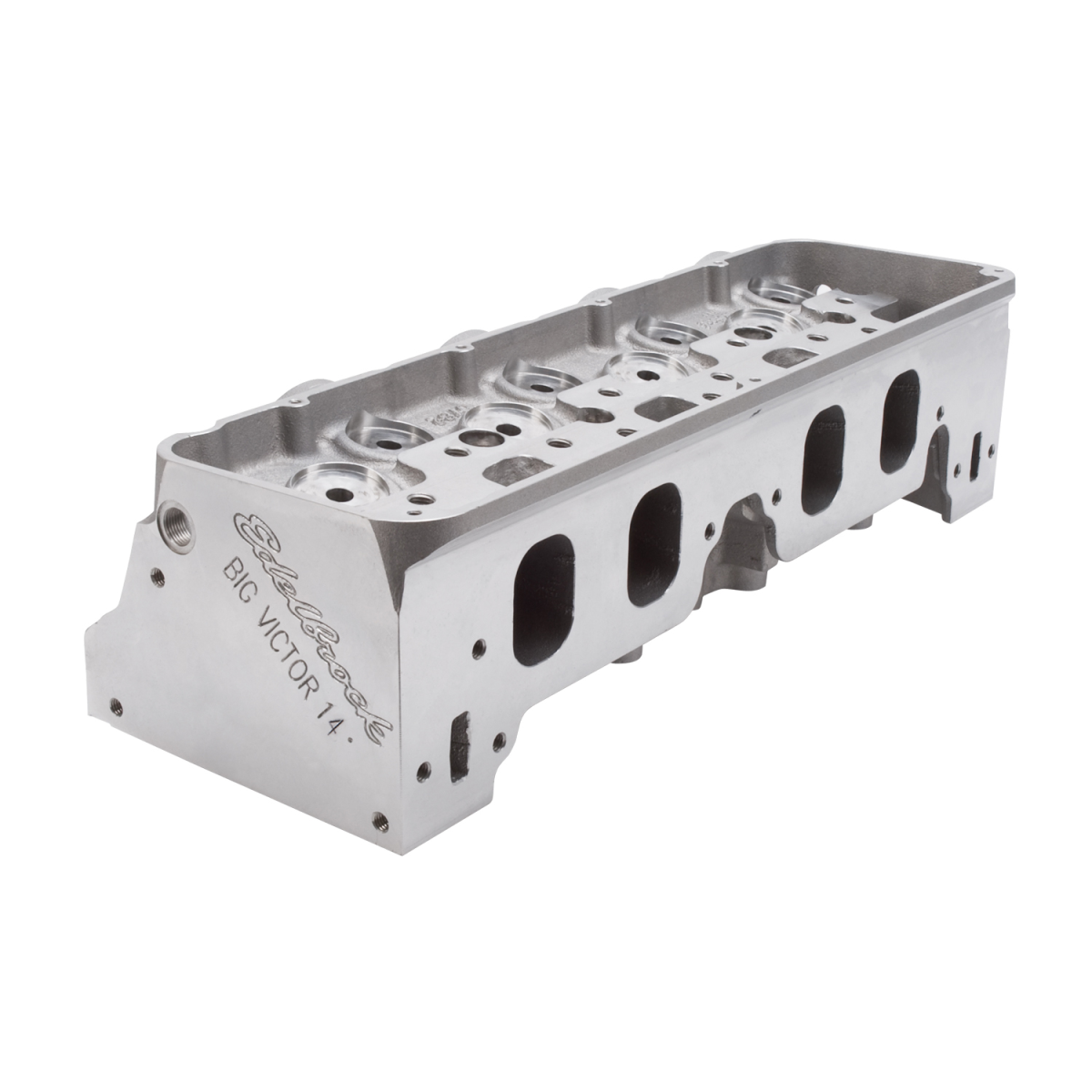

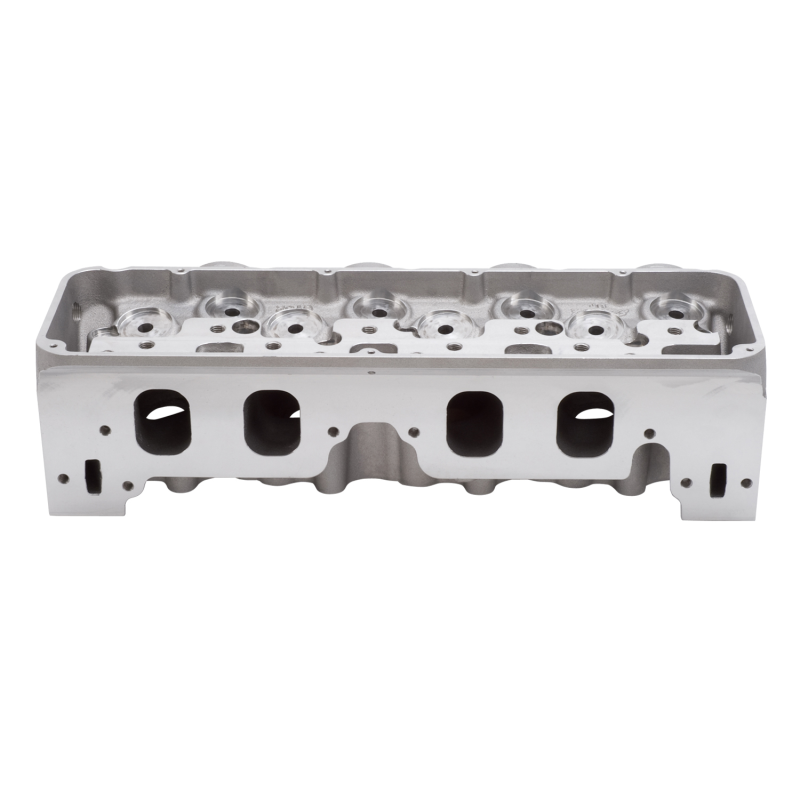

Edelbrock BBC Big-Victor Pro Port 14 Degree HIP Cylinder Heads

Edelbrock and Pat Musi worked with Jesel to improve the valvetrain geometry, delivering Pro-Stock level technology on engines up to 10,000 rpm. Jesel's shaft-mounted system, #KPS-387154, is made from lightweight 7000 series aluminum and features a one-piece stand design that pairs the intake and exhaust stands for improved valvetrain stability. The intake features a 1.820" long fulcrum and is available in 1.60:1 - 1.95:1 rocker ratios; the exhaust features a 2.000" long fulcrum and available in 1.60:1 - 2.00:1 rocker ratios. Requires Edelbrock valve covers #4259. Match with Edelbrock Victor CNC Series manifolds #28003 and #28005. Pro-Port version available for custom porting.

Cylinder Head Specifications:
Combustion chamber volume: 92cc
Intake runner volume: 442 (lh) / 451 (rh)
Exhaust runner volume: 189cc
Intake valve diameter: 2.45" (Valves Not Included)
Exhaust valve diameter: 1.85" (Valves Not Included)
Valve guides: Manganese bronze
Valve spring diameter: Pocket diameter 1.76" (springs not included)
Rocker stud: Use Jesel KPS-381754 shaft-mount
Valve angle: 18deg x 4.0deg intake 9deg x 3.9deg exhaust
Spark plug fitment: 14mm x 3/4 reach, gasket seat.

* Intended for high output, large cubic inch racing engines with 4.84" bore spacing, this head is an improvement over existing 18deg designs, such as the Big Chief & Big Duke.
