Edelbrock Gen II Hemi Pro-Flo 4 EFI Single Plane Intake Manifold System w/ Dual 4150 Carbs - 825HP

Click on image to zoom

Starting at $113/mo or 0% APR with

Your Selected Product

Pricing: $3239.95
Qty:
Free Basic Shipping
IN STOCK: only 1 remaining
EDL-35670

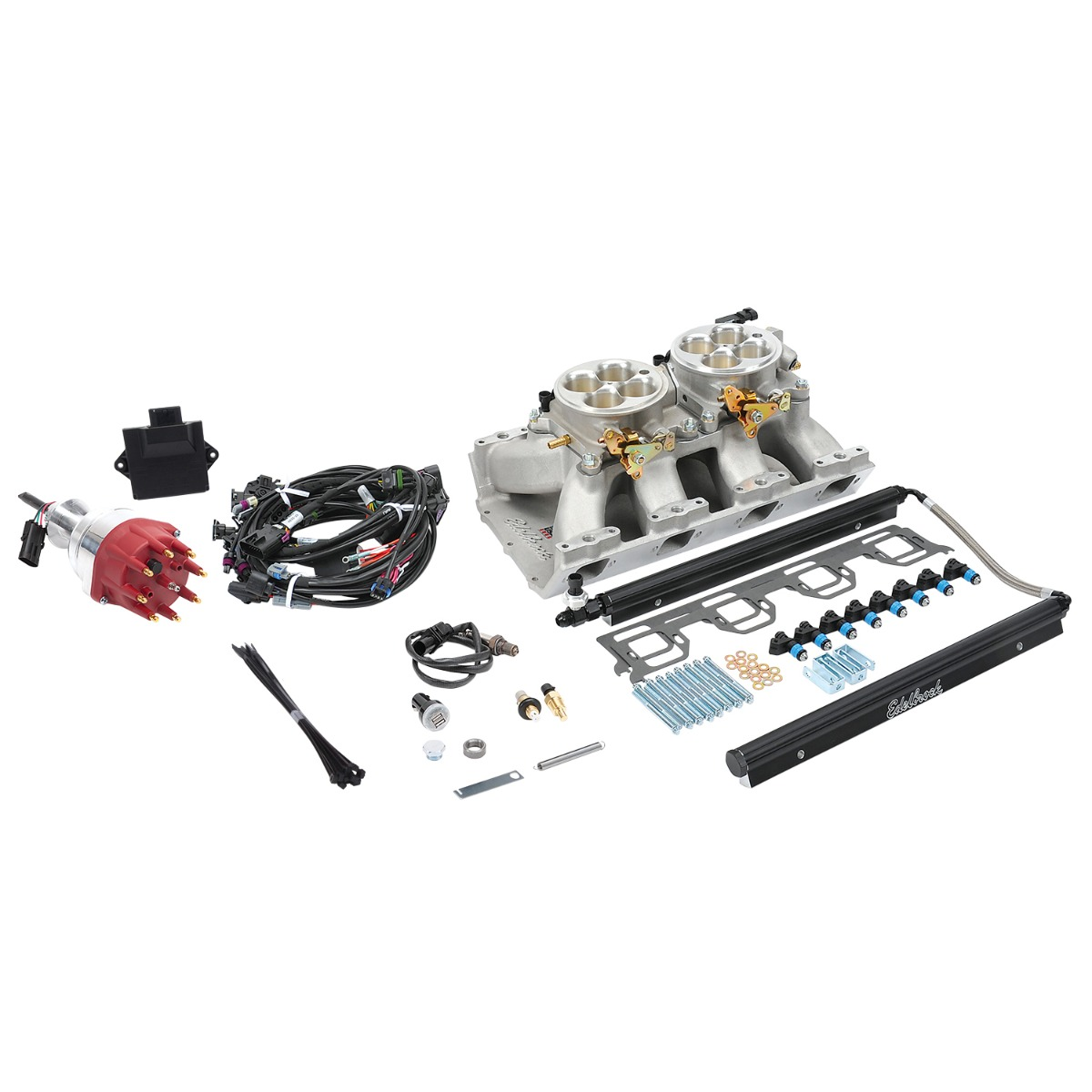

Pro-Flo 4 Dual-Quad HEMI EFI System #35670 is intended for use with 1964-1971 Mopar Gen II 426-572 HEMI engines operating in the 2,500-6,500+ RPM range. This EFI incorporates a single-plane Air-Gap design manifold with dual square-bore 4150-style throttle bodies that bolts directly onto vehicles with a shaker hood. The Dual-Quad HEMI EFI manifold is compatible with factory-style cylinder heads but optimized for use with Victor Jr. HEMI heads. Manifold comes preassembled and ready to run with throttle bodies, 60 lb/hr injectors and fuel rails. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential-port injection and infinite control over ignition and fuel events under all conditions.

This system is rated for 825 horsepower at 43 PSI with all supporting sensors, ECU, and wire harnesses. Key advancements of Pro-Flo 4 EFI are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. Hands down the best EFI conversion system ready to go!

Note: Includes 60LB injectors, fuel rails and dual 4150 carbs!

Description

Features:
Part Number: EDL-35670
Fuel Injection Style: Multi-port
Fuel Injection System Type: Dual 4-Barrel Throttle Bodies (4150 Flange)
Maximum Horsepower with Gas: 825
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: 60LB short/pico style injectors
Ignition System Included: Single-connection distributor
Power Distribution Included: None
User Interface Included: Bluetooth
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Material: Aluminum
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Carbs Included: Yes
Airflow Rate (cfm): 2,000 cfm
Calibration Module Included: No
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Supports up to 825 HP; Tuning and set-up app can be downloaded to a Bluetooth capable tablet or smart phone from either the Apple or Google app stores. Use with boosted applications requires a 2-bar MAP sensor.
