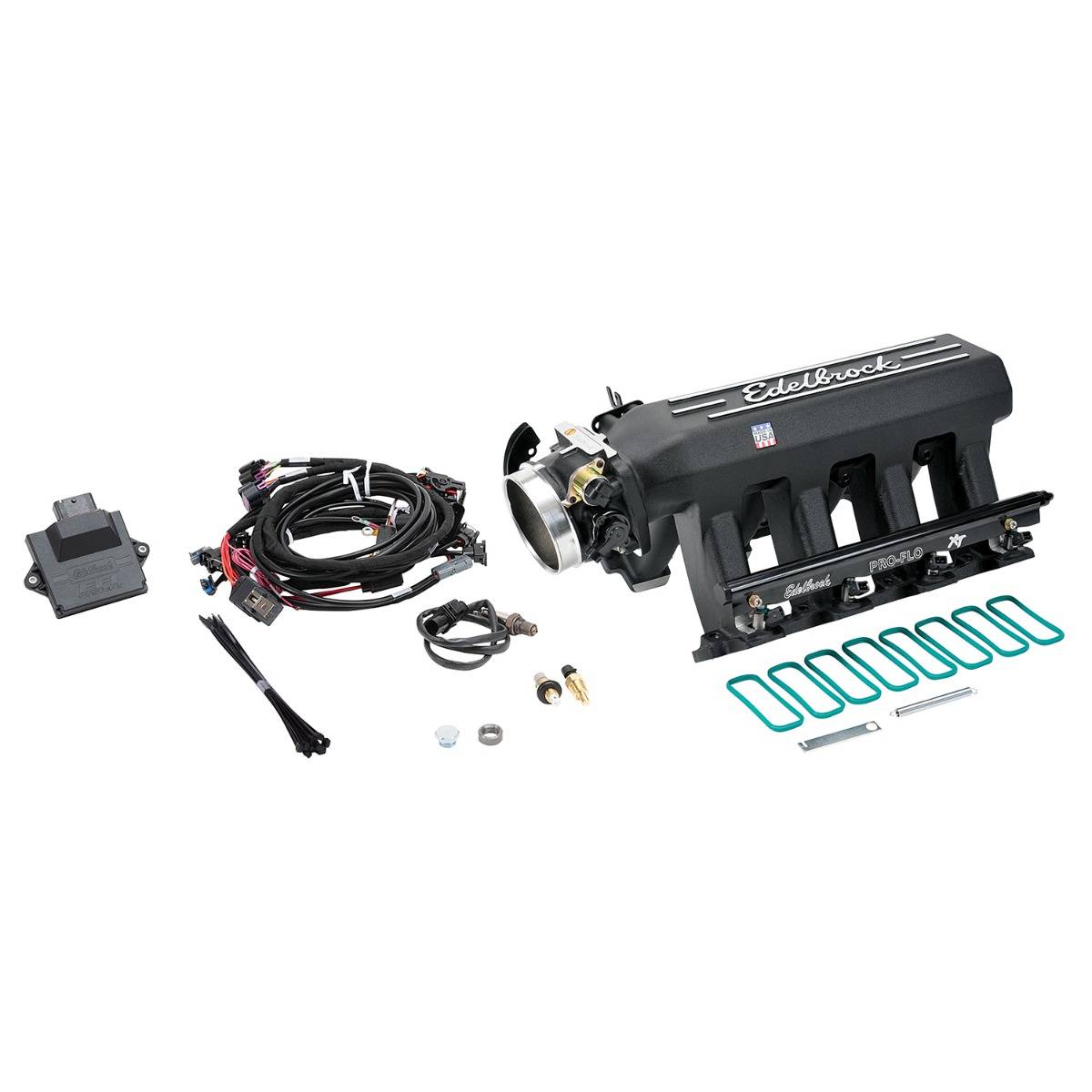

Edelbrock Pro-Flo 4 EFI XT-Style Kit For Chevy LS Gen III / IV Engines, 550 HP Capable, Cathedral Port

EDL-35733
Edelbrock Pro-Flo 4 XT Sequential Port EFI System for Chevrolet LS GEN III/IV engines. The EFI system comes complete with a Pro-Flo XT cathedral port black finish intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 psi fuel pressure.

The Edelbrock Pro-Flo 4 XT Sequential Port EFI Kit #35733 for Chevrolet LS GEN III/IV engines is equipped with the latest in technology and features. The EFI system comes complete with a Pro-Flo XT cathedral port black finish intake manifold and 35 Lb/Hr injectors capable of 550 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals and performance. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Pricing: $2,754.95

Qty:
Free Basic Shipping

Description

Manufacturer Edelbrock System Type XT-Style Kit Gasket Or Seal Included Yes Quantity Kit Wiring Harness Included Yes Fuel Pressure Port 1/8-27 NPT Bore Diameter 90 mm Fuel Injector Type 35 lb/hr Maximum Horsepower 550 Availability Note Available to Order Warranty 24 Months Distributor Cap Included Yes Manifold Color Black Finish Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. Installation Notes This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. Kit includes Gen IV Coil Harness. 24(x) reluctor applications will require part #35713 and 58(x) reluctor applications will require part #35714. For the heights of all Edelbrock manifolds please visit the Manifold Reference Dimensions page. Finish Black Powder Coated Throttle Body Type Single Blade

Details

  • EDL-35733
  • EDL-35733
  • Edelbrock
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 42.0 lbs.
  • W26.0000” x H12.0000” x L31.0000”
