BTR Gen V LT1 4" Stroker Supercharger Camshaft with Valve Train Upgrade & DOD/AFM/DFM Delete Kit

BTR-DODLT1-4"
This BTR camshaft and DOD/AFM/DFM delete kit includes everything needed to install including the world renown Gen V 4" stroker supercharger camshaft. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power. Designed to be used with Centrifugal or Positive displacement type superchargers in street or strip applications. This cam will help your Gen V supercharged combination produce explosive mid range and top end horsepower, while delivering an authoritative exhaust note.

Note: This kit has many product options please make sure you see the blue "choose product options" button to configure your system and avoid any delays.

*Custom tuning is required after installation. We offer remote tuning options see here or we recommend going to a local dyno shop near you for custom tuning.

Important Information: Please select your options using the blue button. To install these parts a new crankshaft bolt is required. The cam install kit is highly recommended as the camshaft bolt can only be reused a few times and many techs like to always install new ones. Arp bolts/studs are reusable. Short travel lifters allow higher rpm capability and also require .050 shorter pushrods (so if everything is factory untouched 7.800").
Was: $1,609.03
Sale: $1,509.03
Save: 6%
Save: $100.00

Customize Your Item

- Balancer Bolt Options -
- Head Bolt/Stud Options -
- Pushrod Options -
- DOD/AFM Delete Options -
- Lifter Options -
- Cam Install Kit -
- VVT Tool Options -
Qty:
Free Basic Shipping

Description

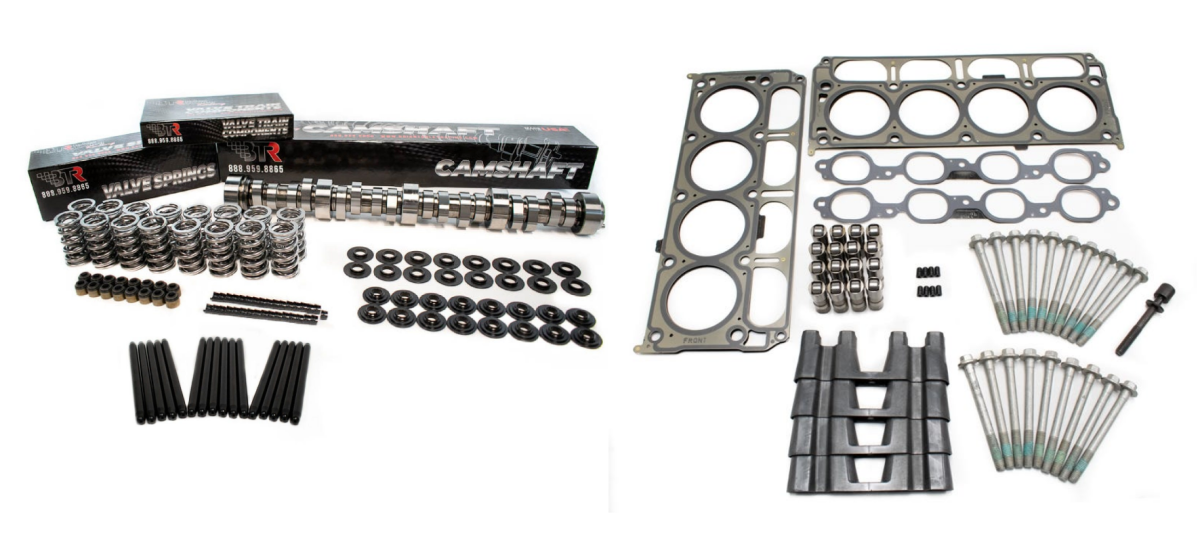

What is included with the this system?
BTR Gen V 4" Stroker Supercharger Camshaft
BTR .660 Lift Dual Platinum Valve Spring Kit
BTR 7.850" 3/8 Stock Size Hardened Pushrods (Other sizes or length checkers available in the product options)
BTR VVT Lockout and Cam Motion Phaser Tool
CBI Street Cars DOD/AFM Plugs (if you'd like a valley cover instead of plugs it is available in the product options)
BTR Delphi LT Lifters (Short travel high RPM lifters available in the product options)
BTR Lifter Trays - set of 4
Chevy Performance Gen V LT1 Head Gaskets - Pair
BTR Gen V Head Bolt Kit (Head studs available in the product options)
BTR Gen V Header Gaskets - Pair

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 233/25X
Valve Lift with Factory Rocker Arm Ratio: 0.648 int./0.648 exh.
Torque Converter Information: Aftermarket converter required
Lobe Separation (degrees): 115
Fuel Lobe Percentage: 38%
Quantity: Sold individually.

Vehicle Fitment:
2014-2019 Chevy Corvette C7 (Stringray and Grand Sport Models)
2016-2024 Chevy Camaro SS/LT1
Gen V LT1 Crate Engine

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W24.0000” x H5.0000” x L5.0000”
  • Free Basic Shipping
