BTR Gen III HEMI VVT Truck Norris Camshaft W/ Valve Train Components - 65+ HP Gain

SKU: BTR-HEMICAMKIT-TN

This BTR camshaft and valve train kit includes the well-known Gen III Hemi Truck Norris Camshaft, BTR 0.625 Lift Valve Spring Kit. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power.

Note: Valve spring kits upgrades and Pushrod options available, see the product options to configure your system and avoid any delays!

*Includes 4-Degree VVT Limiter, Does not include VVT limiter installation tool can be added using the product options. Requires MDS Delete and Custom Tuning!

*Notice for those looking to use valve tip savers you are required to run .030” shorter pushrods

Was: $827.46

Sale: $727.46

Save: 12%

Save: $100.00

Customize Your Item

Exhaust Pushrod Options

- Exhaust Pushrod Options -

Intake Pushrod Options

- Intake Pushrod Options -

Valve Spring Tool Options

- Valve Spring Tool Options -

Valve Spring Options

- Valve Spring Options -

Valve Tip Savers Options

- Valve Tip Savers Options -

VVT Phaser Tool Options

- VVT Phaser Tool Options -

MDS Conversation Options

- MDS Conversation Options -

Qty:

Free Basic Shipping

Description
Details
Shipping
Documents

Description

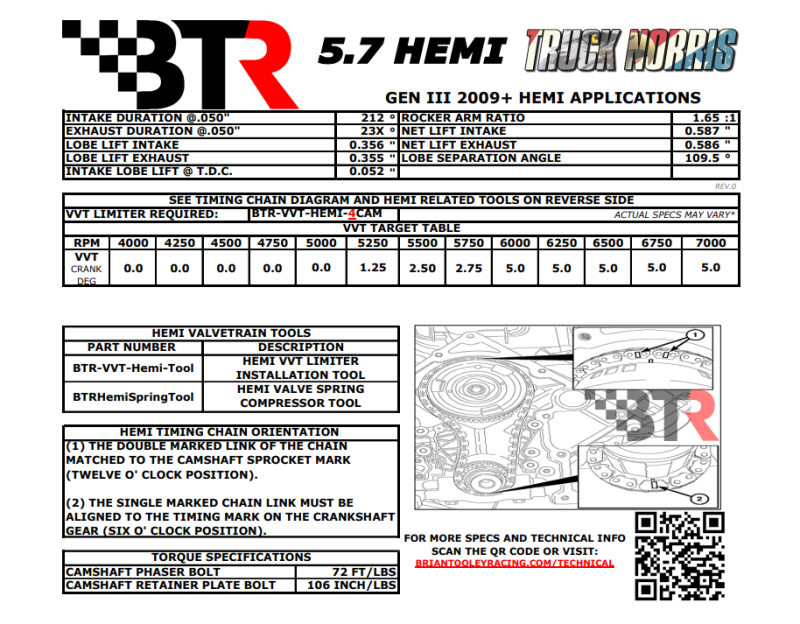

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Duration: 212 int./23X exh.
Valve Lift: 0.587 int./0.586 exh.
Valve Lobe Lift: 0.356 int./0.355 exh.
Lobe Separation (degrees): 109.5
RPM Operating Range: 1500-7000

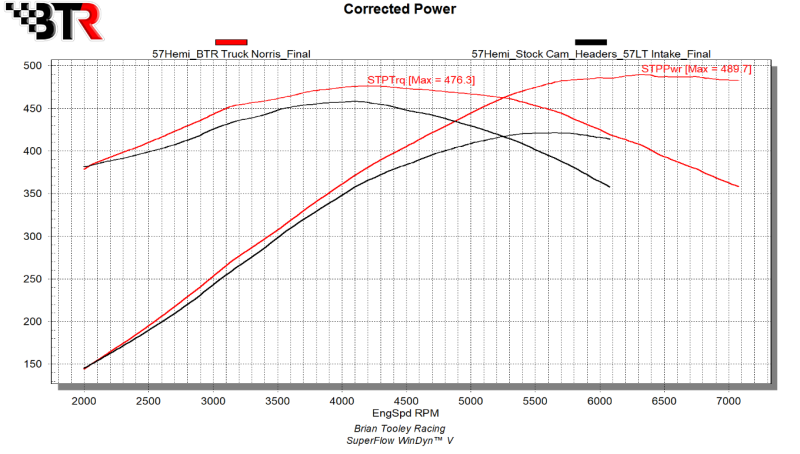

Expected Cam Swap Gains: 69 Horsepower, 18 lb/ft, extra 1500 RPM of operating range
Torque Converter Information: Works well with stock converters to take full advantage of camshaft aftermarket converter recommended

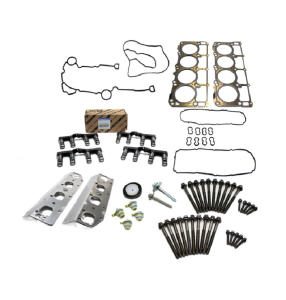

Non-MDS Camshaft - Requires MDS Conversion Kit see the product options or for a full complete engine refresh kit including MDS delete parts see PN: BTR-MDS-HEMI

Camshaft Qualities
Camshaft Idle Quality: Great rumble sound without sacrificing factory comforts
Drivability: Mild-mannered daily feel, with a nice aggressive sound
Camshaft Chop: 5/7

What is included with the base system?
BTR Gen III Hemi Truck Norris Camshaft
BTR Drop-In 5.7L .625" Lift Valve Spring Kit - (Upgrades Available) *These Valve Springs can be used in 6.4L applications but requires shimming the valve springs which is not included. We Recommend selecting the 6.4L springs for less stress and proper fitment in the product options!
Your Choice of BTR Intake & Exhaust Chromoly Pushrods Size - See The Product Options
VVT Limiter Included (Requires VVT Limiter Tool Available In The Product Options)

*This system also has many other options see the blue "choose product options" button!
