Whipple Ford Mustang GT 5.0L 2022-2023 Gen 6 3.0L Supercharger Intercooled Complete Stage 2 Kit

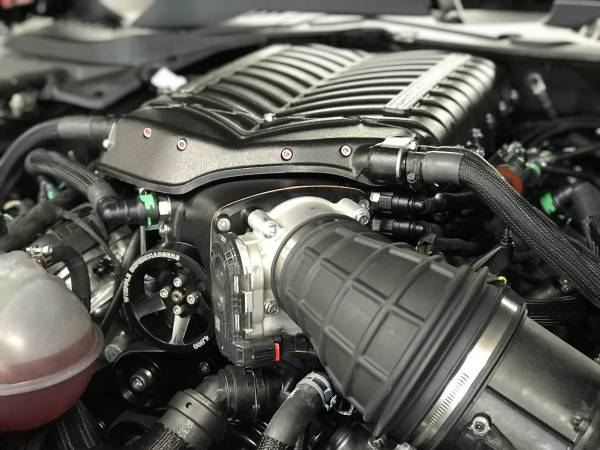

Our latest creation features the cutting-edge Generation 6 3.0L front feed twin-screw supercharger, a significant leap forward from its predecessors. This new supercharger boasts unparalleled efficiency across the entire rev range, thanks to its all-new bearings, gears, rotors, and housing. These innovations allow it to operate faster and more reliably, producing unprecedented power levels. The Gen 6's design includes a novel 3/4 rotor combination, a 285-degree helix angle for improved airflow, a redesigned bell mouth inlet, an optimized discharge port, and a diameter to length ratio optimized for peak efficiency.

In addition to its superior supercharger unit, the system features an all-new patented dual-core, dual-pass intercooler, surpassing even the substantial cooling capabilities of the Whipple Cooler used in the Ford Cobra Jets and record-setting S550 Mustangs. This, combined with the industry's leading heat exchanger, water reservoir, and intercooler pump, ensures optimal performance through lower boost levels and rapid recovery after intense driving conditions.

Leveraging decades of OEM and competitive racing insights, Whipple engineers have devised a bespoke PCM calibration protocol. This system intricately adjusts critical engine functions such as fuel delivery, spark timing, knock detection, torque management, transmission control, and electronic throttle regulation. The vehicle's PCM diligently monitors and adjusts engine torque, maintaining peak performance and reliability. This exclusive calibration, paired with the Whipple kit's unique software and the HP Tuner RTD flash tool, offers unparalleled control and update flexibility to our customers.

Each comprehensive Whipple system includes an IAT2 harness and sensor to meticulously gauge the temperature differential between incoming and compressed air post-intercooling, optimizing power output across varying conditions. The robust 6-rib billet idler setup, equipped with a billet spring-loaded tensioner, billet idler pulleys, and a lightweight pocketed supercharger pulley, is designed for easy upgrade to a 10-rib configuration if desired. The system also features an adjustable idler pulley, accommodating varying supercharger pulley sizes with minimal belt length adjustments. The expansive 150mm Roval inlet caters to a wide range of throttle bodies, from the standard 80mm to the larger 132mm or 150mm options.

1. Best power for money.
2. Most complete package.
3. Maximum power.
4. Maximum power expandability.
5. Aesthetic appeal.

What does this mean? You get it all, in one package. Massive power gains with the biggest superchargers, biggest intercoolers, biggest intercooler systems, biggest air-inlet systems while providing robust belt systems and heavy-duty spring tensioners. The intake manifold is designed with high velocity in mind, while increasing plenum volume to lower pressure loss at high power applications.

You then get OEM style fuel and vacuum hoses with nylon sheaving for added protection and appeal, OEM style quick connect fittings with billet aluminum fittings. No ugly brass fittings hanging off the inlet like some others. Wire extensions are injection molded to allow simple plug-and-play installations. Each system also has multiple options for increased performance such as oversized heat-exchangers with dual fans, billet high flow throttle bodies, oversized cold air intake systems just to name a few.

Each kit comes with step-by-step instruction manuals printed in color to help all installers, including the do-it-yourselfer. Kits come with all the fasteners, all color matched for proper aesthetic appeal.

So don’t be fooled by others, there is no comparing to the Whipple supercharger systems, simply the top of the line packages designed and built to exceed all expectations.
