BTR LS1/LS2 Stage 3 Camshaft W/ Valve Train Components - 70+ HP Gain

BTR-LS1/LS2CAMKIT-S3
This BTR camshaft and valve train kit includes the well-known LS1/LS2 Stage 3 Camshaft, BTR 0.660 Lift Dual Spring Kit. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power.

Developed and ground in-house using state of the art BTR designed lobes, the new LS1 Stage 3 V2 cam is the latest offering in the LS1/LS2 line up. This camshaft has an aggressive idle, and works well in the mid to upper rpm range with close to an 18% horsepower gain at peak. This camshaft will not require any flycutting of pistons with OEM LS3 combustion chamber size. If you mill your heads, it is always advised to check piston-to-valve clearance.

Note: Valve spring kits upgrades and Pushrod options available, see the product options to configure your system and avoid any delays!

*Custom tuning is required after installation. We offer remote tuning options see here or we recommend going to a local dyno shop near you for custom tuning.
Was: $924.47
Sale: $824.47
Save: 11%
Save: $100.00

Customize Your Item

- Pushrod Options -
- Valve Seal Tool Options -
- Valve Spring Tool Options -
- Valve Spring Kit Options -
- Valve Holding Tool Options -
Qty:
Free Basic Shipping

Description

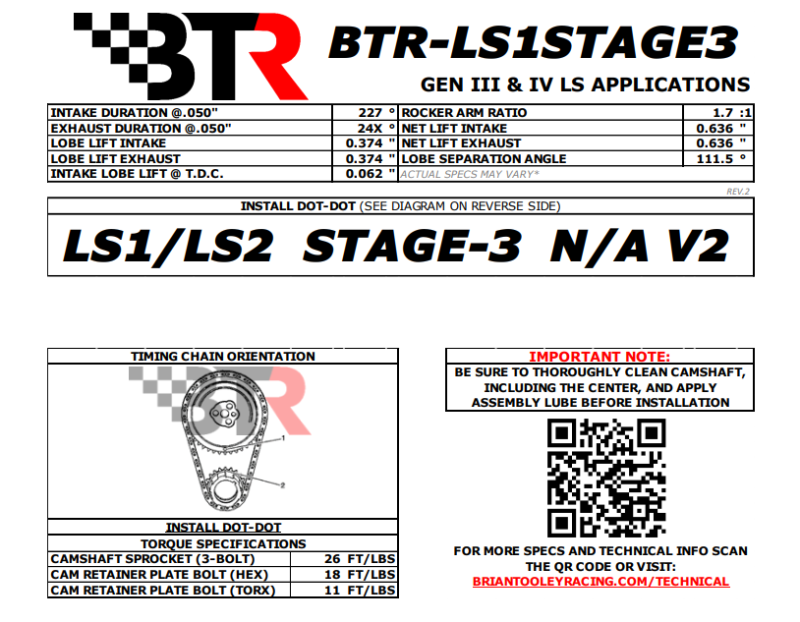

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 227/24X
Valve Lift with Factory Rocker Arm Ratio: 0.635 int./0.635 exh.
Lobe Separation (degrees): 111.5
Camshaft Gear Attachment: 3-bolt
Valve Springs Required: Included
Torque Converter Information: Aftermarket converter required
Quantity: Sold individually.

What is included with the base system?
BTR LS1/LS2 Stage 3 Camshaft v2
BTR .660" Lift Platinum Dual LS Valve Spring Kit w/ Steel Retainers - Upgrades Available
Your Choice of BTR Chromoly Pushrods Size - See The Product Options

*This system also has many other options see the blue "choose product options" button!

Details

  • BTR-LS1/LS2CAMKIT-S3
  • BTR-LS1/LS2CAMKIT-S3
  • Brian Tooley Racing
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
  • W24.0000” x H5.0000” x L5.0000”
  • Free Basic Shipping
