BTR LS1/LS2 Stage 1 Camshaft W/ Valve Train Components - 60+ HP Gain

BTR-LS1/LS2CAMKIT-S1
This BTR camshaft and valve train kit includes the well-known LS1/LS2 Stage 1 Camshaft, BTR 0.660 Lift Dual Spring Kit. Whether your project involves turbocharged, supercharged, or naturally aspirated setups, BTR offers numerous options, all supported by years of expertise, knowledge, and a dedication to power.

Developed and ground in-house using state of the art BTR lobes, the new Stage 1 V2 cam is the latest offering in the LS1/LS2 line up. The all new BTR LS1 Stage 1 V2 camshaft makes more power and torque everywhere in the curve compared to the OEM factory camshaft. This camshaft provides a MILD idle along with great driveability for daily driving, yet makes significantly more midrange and top end power with almost 15% horsepower gain at peak over the factory camshaft.

Note: Valve spring kits upgrades and Pushrod options available, see the product options to configure your system and avoid any delays!

*Custom tuning is required after installation. We offer remote tuning options see here or we recommend going to a local dyno shop near you for custom tuning.
Was: $924.47
Sale: $824.47
Save: 11%
Save: $100.00

Customize Your Item

- Pushrod Options -
- Valve Seal Tool Options -
- Valve Spring Tool Options -
- Valve Spring Kit Options -
- Valve Holding Tool Options -
Qty:
Free Basic Shipping

Description

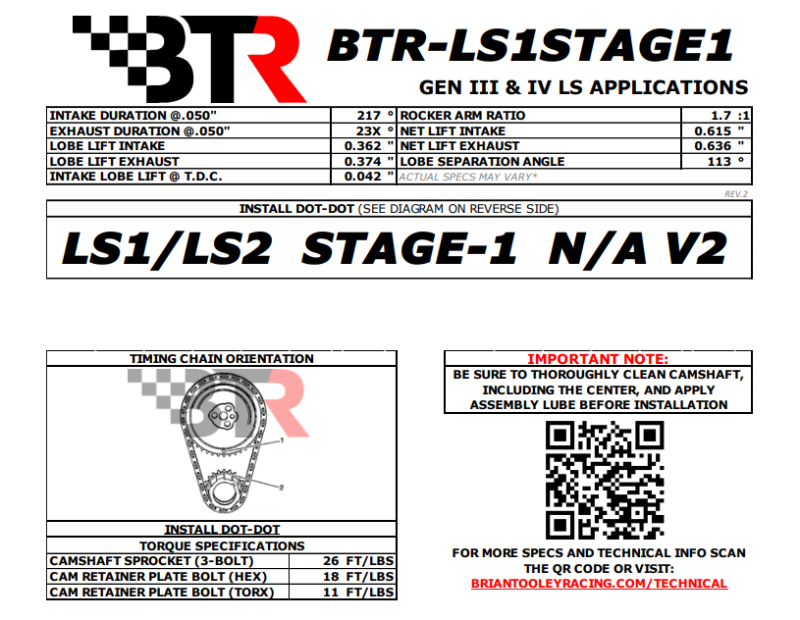

Camshaft Specs
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Camshaft Duration: 217/23X
Valve Lift with Factory Rocker Arm Ratio: 0.615 int./0.635 exh.
Lobe Separation (degrees): 113
Camshaft Gear Attachment: 3-bolt
Valve Springs Required: Included
Torque Converter Information: Can be used with factory converters but aftermarket torque converter is highly recommended
Quantity: Sold individually.

What is included with the base system?
BTR LS1/LS2 Stage 1 Camshaft v2
BTR .660" Lift Platinum Dual LS Valve Spring Kit w/ Steel Retainers - Upgrades Available
Your Choice of BTR Chromoly Pushrods Size - See The Product Options

*This system also has many other options see the blue "choose product options" button!
