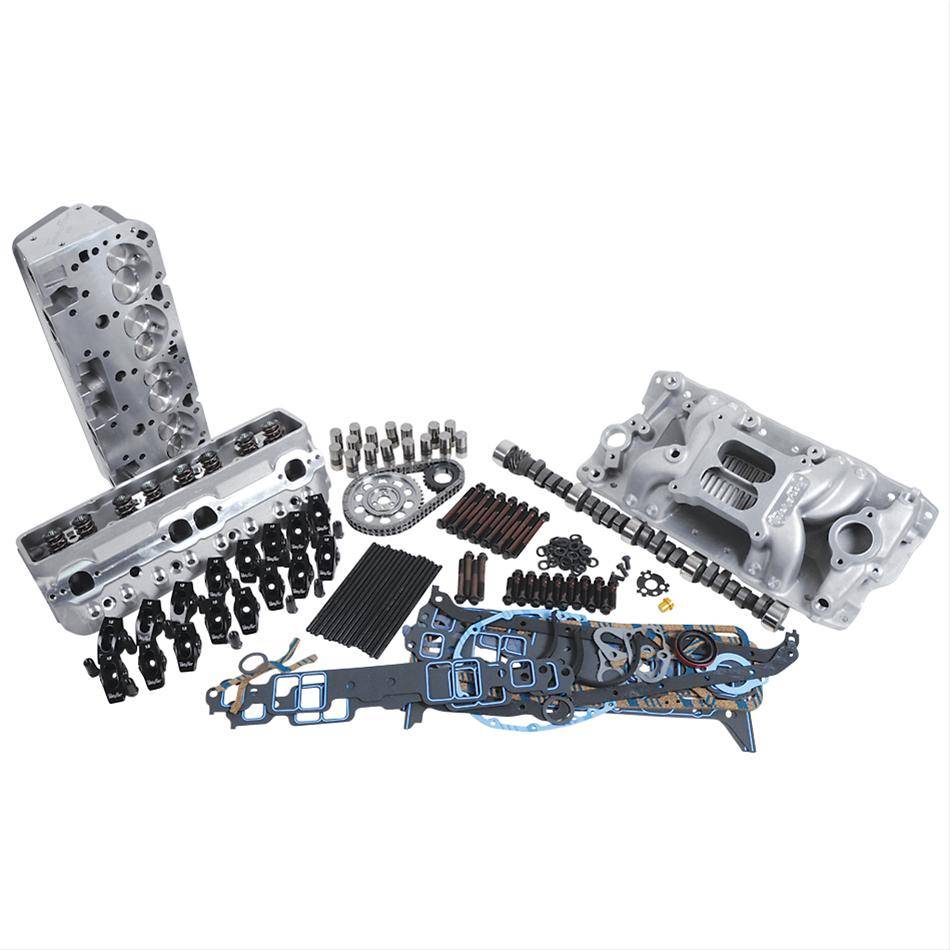

Trick Flow 445 HP Super 23 StreetBurner Top-End Engine Kits for Small Block Chevy

TFS-K315-445-405
Everything you need for an engine makeover!

Trick Flow(R) has done all of the homework for you with these top-end engine kits for small block Chevys. These kits include the intake manifold, camshaft, and everything in between. These kits feature the Trick Flow(R) Super 23(R) aluminum cylinder heads that are packed with power-adding features that are sure to make your car come to life. Trick Flow(R) tops off these kits with a Trick Flow(R) intake manifold and camshaft, along with all of the hardware required to get your engine together and ready to dominate that street or strip. Lifters are no longer included by Trick Flow in these kits and must be purchased separately. Trick Flow® has done all of the tweaking and tuning with these engine kits for small Chevy, so you can get dyno-proven horsepower with no guesswork. Based around the dyno-proven Trick Flow® Super 23® cylinder heads, these kits scream performance. These kits include everything you need to give your pro street engine a maximum performance makeover! These kits feature a Trick Flow® hydraulic roller camshaft with a 246/254 degree duration at .050, .558/.558 in. lift, with 1.5 ratio rockers and a 112 degree lobe separation.
Availability: Discontinued, no intakes available. We sell TFS-K314-445-405 instead which works with AFR 4812 intake.

Description

KIT/COMBO CONTENTS:

FEL-1205 Fel-Pro Performance Intake Manifold Gasket Sets

SUM-G001 Summit Racing® Cam Buttons

SUM-G1792 Summit Racing® Camlock Plates

TFS-9000 Trick Flow Pushrod Length Checker, Adjustment Range 6.125 in. to 7.500 in., Ball Ends, Each

TFS-30400222 Trick Flow® StreetBurner® Intake Manifolds for Small Block Chevrolet

TFS-30410003 x2 Cylinder Head, Super 23® 195, Fast As Cast®, Assembled, 62cc Chambers, 1.460" Springs, Small Chevy, Each

TFS-31400510 Trick Flow Rocker Arms, 1.5 Ratio, 3/8 in. Stud, Full Roller Design, Aluminum, Small Chevy, Set of 16

TFS-31400915 Trick Flow Gaskets, Complete Engine Gasket Set, Premium, pre-1987 Small Chevy, 265, 283, 302, 305, 307, 327, 350, Set

TFS-31402002 Trick Flow Camshaft, Hydraulic Roller, Advertised Duration 308/316, Lift .555/.555, Lobe Sep. 112, Small Chevy, Each

TFS-31478500 Trick Flow Timing Chain and Gear Set, True Roller, Double Roller, Billet Steel Sprockets, Chevy, Small Block, Set

TFS-92000 Trick Flow Cylinder Head Bolt Kit, Hex Head, Chromoly Steel, Black Oxide Finish, Chevrolet 262-400, Each

Although they are pictured, Trick Flow no longer includes the lifters, so you will need to purchase Hydraulic Roller Lifters to use the cam included in this kit.

Notes: Will not fit centerbolt-style intake manifolds. Kit includes camshaft lock plate and thrust button assembly. Standard base circle camshaft, verify clearance in stroker applications.

Shipping Information

  • Item Requires Shipping
  • 145.0 lbs.
  • W24.0000” x H24.0000” x L36.0000”
  • Free Basic Shipping
  • Have a question? Ask the Pros
  • 877-514-9494Mon - Fri 8:00 AM - 4:00 PM PST
