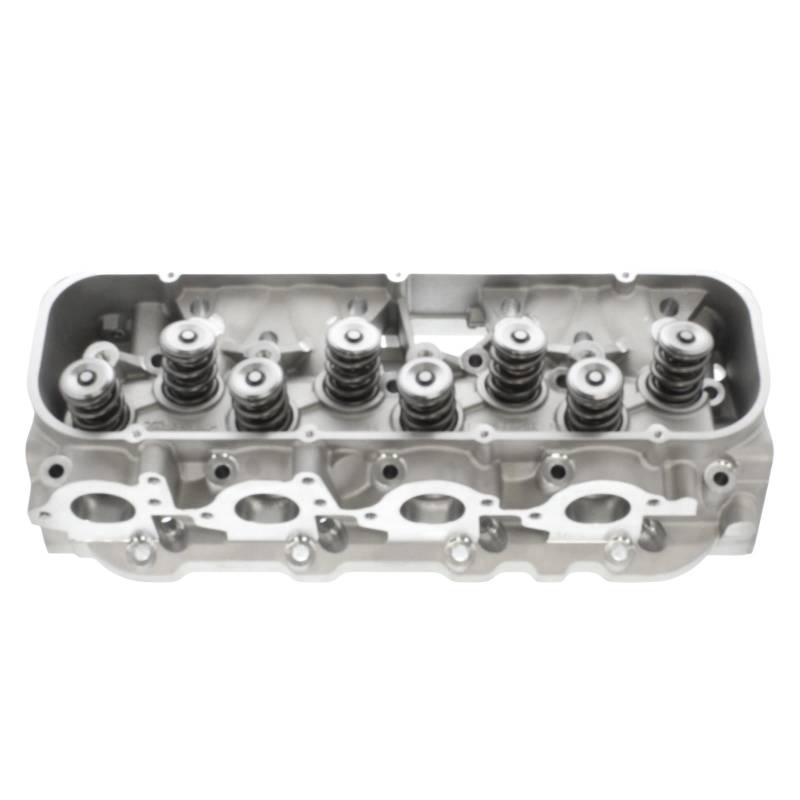

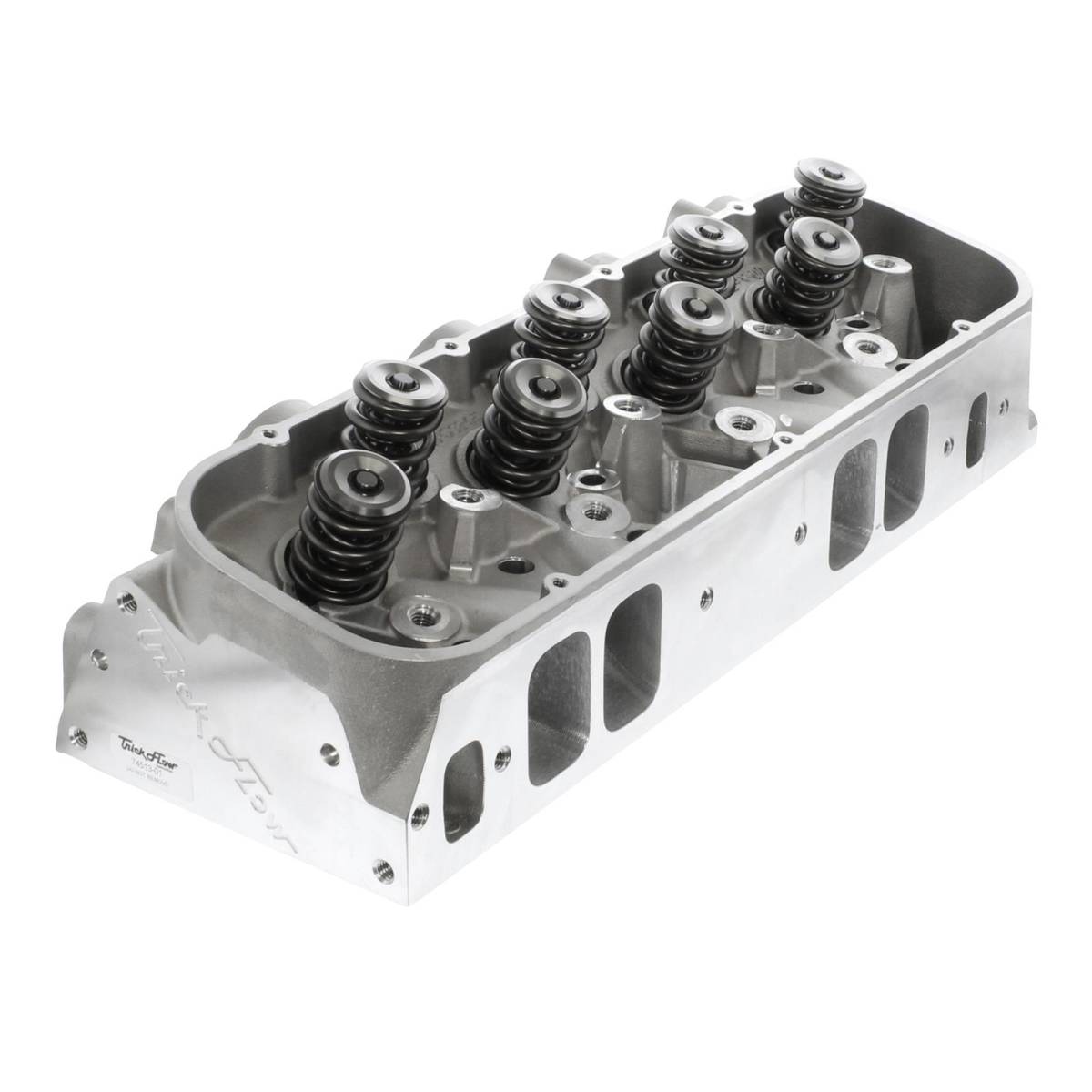

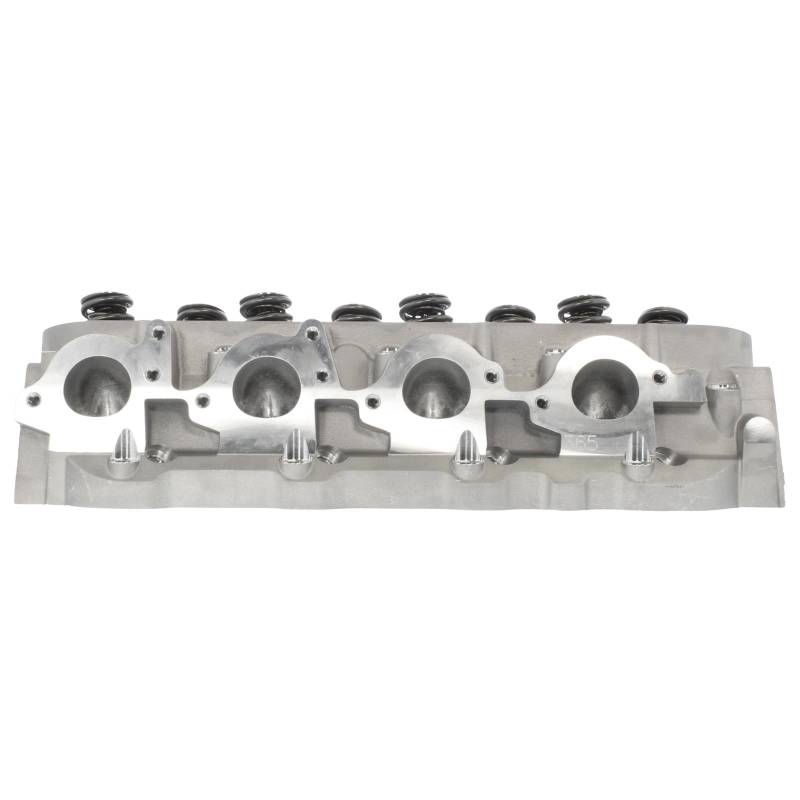

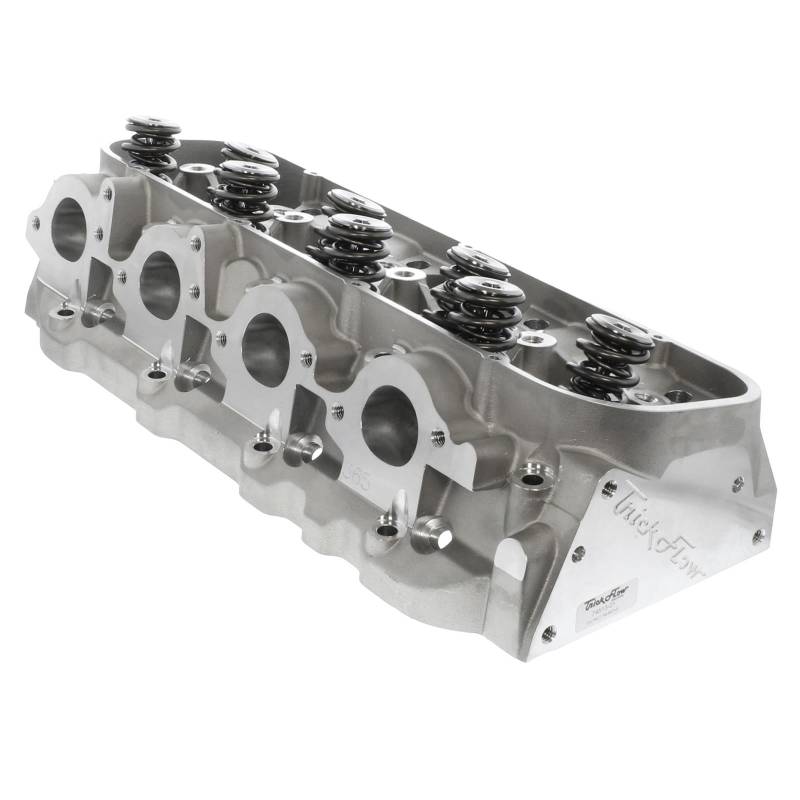

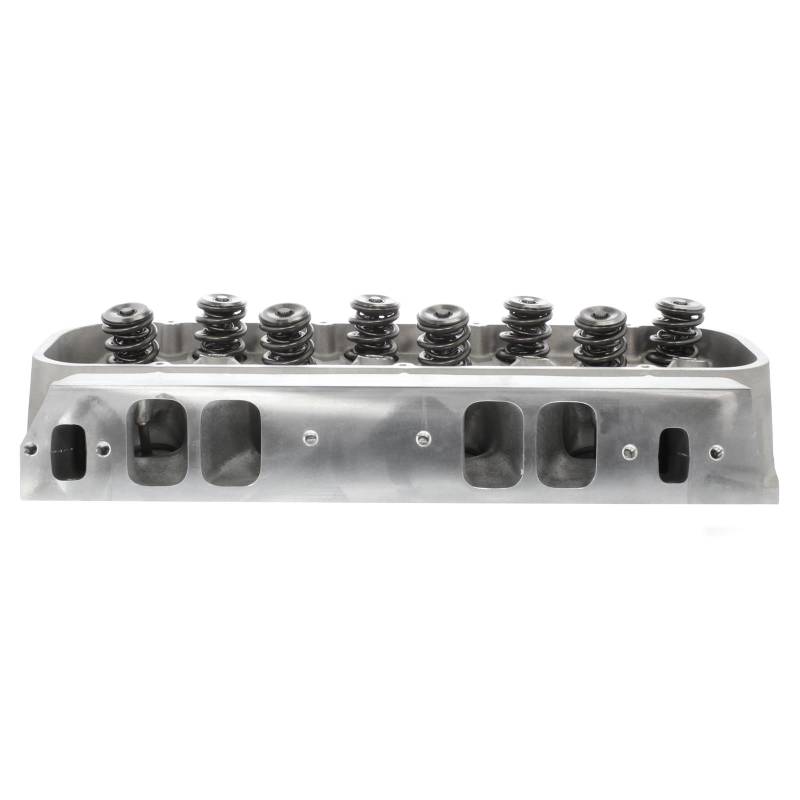

Trickflow PowerPort Cylinder Head, Big Block Chevy, 365cc Intake, Titanium Retainers, Max Lift .900
TFS-4141T804-C02
Serious horsepower for your Big Block Chevy engine, heads sold individually.
Perfect for all high performance street/strip, racing, and marine applications, Trick Flow PowerPort® 365 cylinder heads for big block Chevy deliver exceptional power potential and competition level durability. Features include rectangular intake runners for strong mid- to high-rpm performance, fully CNC-profiled, heart-shaped combustion chambers, CNC bowl blended valve seat transitions, 24 degree intake valve angles with 4 degree side cants for additional airflow volume, adjustable guideplates, and premium quality, high-strength aluminum castings.
PowerPort 365 heads are best suited for 500 plus cubic inch extreme performance engines. The heads include top-of-the-line CNC Competition Ported runners with a high resolution finish for maximum airflow and power and are assembled with the highest quality valvetrain components for ultimate endurance in all operating conditions.
Cylinder heads are available fully assembled or as bare castings.
Perfect for all high performance street/strip, racing, and marine applications, Trick Flow PowerPort® 365 cylinder heads for big block Chevy deliver exceptional power potential and competition level durability. Features include rectangular intake runners for strong mid- to high-rpm performance, fully CNC-profiled, heart-shaped combustion chambers, CNC bowl blended valve seat transitions, 24 degree intake valve angles with 4 degree side cants for additional airflow volume, adjustable guideplates, and premium quality, high-strength aluminum castings.
PowerPort 365 heads are best suited for 500 plus cubic inch extreme performance engines. The heads include top-of-the-line CNC Competition Ported runners with a high resolution finish for maximum airflow and power and are assembled with the highest quality valvetrain components for ultimate endurance in all operating conditions.
Cylinder heads are available fully assembled or as bare castings.
Limited Supply: only 4 remaining
Was:
$1,960.99
Sale:
$1,760.99
Save:
10%
Save:
$200.00
Description
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 119
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 365cc
Exhaust Runner Volume (cc): 135cc
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Open Chamber
Intake Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.350 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.900 in.
Outside Diameter of Outer Spring (in): 1.645 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Triple
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 7/16-20 in.
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8"
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually
Notes:
Designed for mechanical flat tappet camshafts. Exhaust port is raised 0.300 in. over stock.
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 119
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 365cc
Exhaust Runner Volume (cc): 135cc
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Open Chamber
Intake Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.350 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.900 in.
Outside Diameter of Outer Spring (in): 1.645 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Triple
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 7/16-20 in.
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8"
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold individually
Notes:
Designed for mechanical flat tappet camshafts. Exhaust port is raised 0.300 in. over stock.
