Genuine 60lb Siemens Deka IV EV1 Fuel Injectors - 8

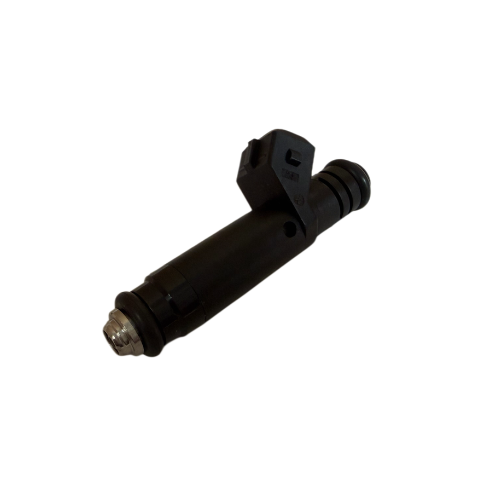

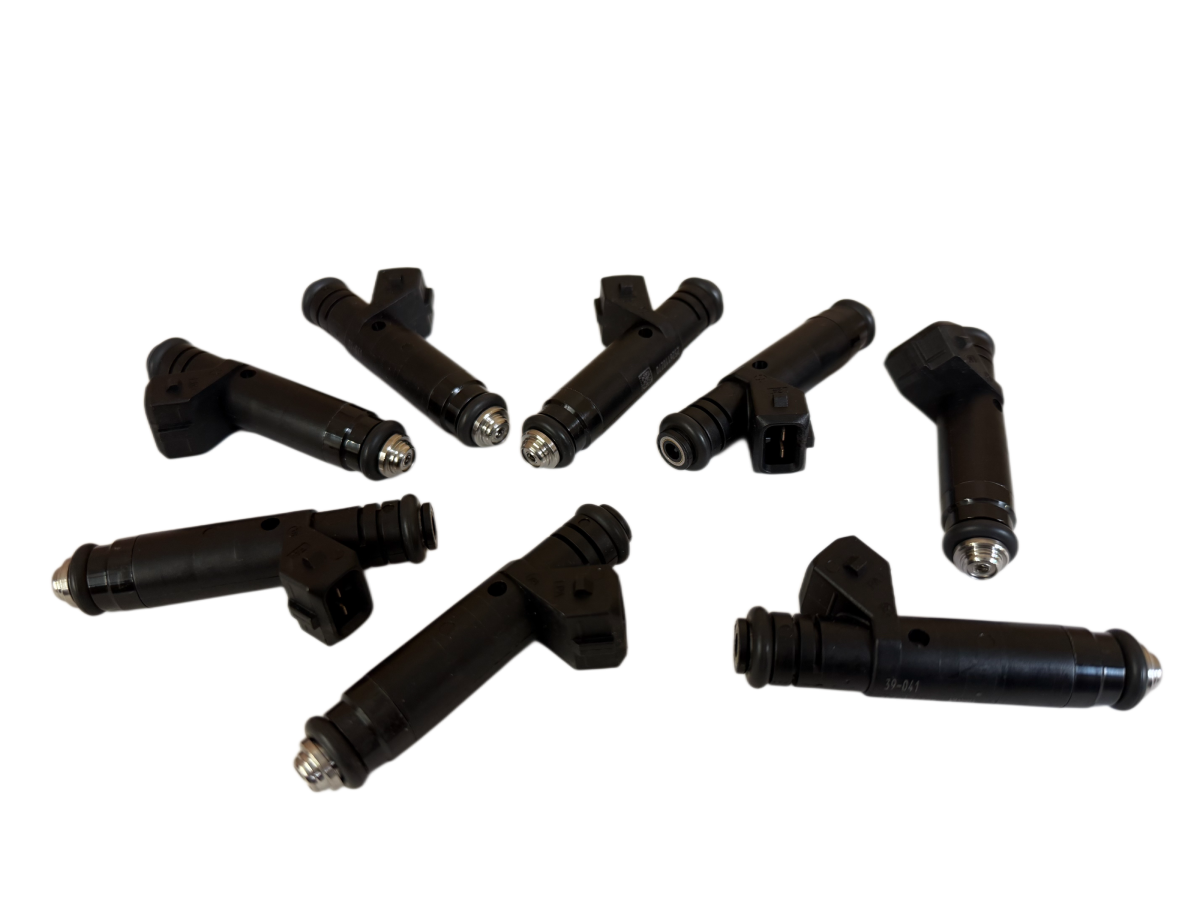

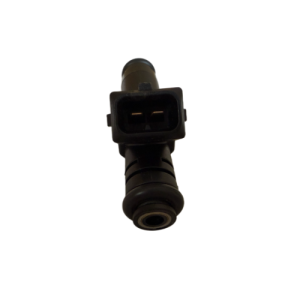

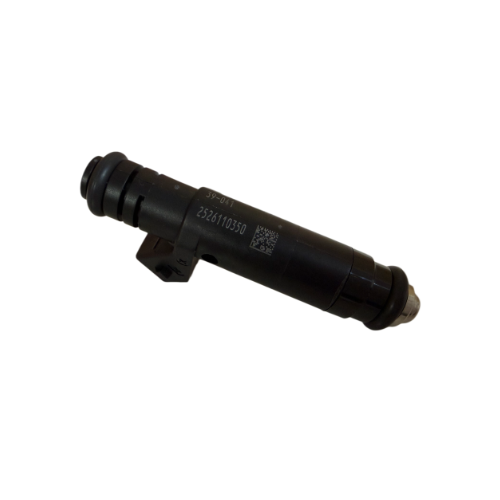

Included: 8 Genuine Siemens Deka IV EV1 injectors, part number 107961 or FI114961. The photo is an example of a similar set.

These High Resistance(Approx. 12 OHMS) Saturated fuel injectors will fit many applications, including, but not limited to:
BMW 5, 6, 7, and 8 Series V8 Models
BMW M5, X5, Z8, and Alpina B7 Models
Chevrolet Camaro, Caprice, Corvette and Impala
Ford Mustang GT, lx, Cobra 5.0L and 4.6L
Lotus Esprit
Pontiac Firebird, GTO, and TransAm

Note:
If your vehicle needs OBD1 style injector clips/plugs, please select them from the drop down menu above - additional $39.95.

Specifications
Flow Rate in CC per minute: 630 CC/min @ 43.5 PSI
Flow Rate in LB per hour: 60 LBS/HR @ 43.5 PSI
Resistance: 12 ohms (High Impedance, High Resistance)
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30 PSIG / Max 100 PSIG
O-Rings Included: Yes, on the injectors
Injector Body Design: Metal and composite plastic
Fuel Delivery: Filter basket on top with a four-hole disc fuel delivery nozzle for superior fuel atomization.
Electrical connector type: EV1 (Minitimer, Jetronic)
Overall Length: 2 7/8 inches, 74 mm
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16 mm
Orings: Top and bottom, 14.5 mm
Warranty: 1 Year Warranty!

These Siemens Deka IV injectors flow 60 lbs/hr at 43.5 PSI ( 3 BAR ) and up to 80 lbs/hr at 80 PSI! Despite the high flow rate these units are high-impedance, plus they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed drive-ability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.
