Mitsubishi Lancer Evo 550cc Fuel Injectors
PL9-550
These RC Engineering 550cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:
ALL Mitsubishi Lancer Evolution (Models 1-9 including EVO VII, VIII, IX)
Part # PL9-550
ALL Mitsubishi Lancer Evolution (Models 1-9 including EVO VII, VIII, IX)
Part # PL9-550
Description

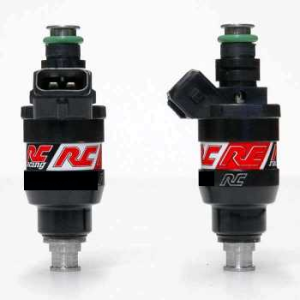

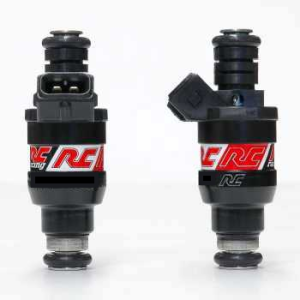

Included: 4 Denso style injectors and flow sheets. The photo is an example of a similar set.
Note:
If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps/ Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL9-550
Spacers/O-rings Included: No
Warranty: 1 year warranty!
Note:
If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 550CC/min @ 43.5 PSI
Flow Rate in LB per hour: 52LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps/ Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL9-550
Spacers/O-rings Included: No
Warranty: 1 year warranty!
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
- Free Basic Shipping
