Acura Integra 1000cc Fuel Injectors 1992-2001

PL4-1000
These RC Engineering 1000cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:

1992-1995 Acura Integra
1996-2001 Acura Integra (OBD1 style injector connecting plugs are REQUIRED)

Part # PL4-1000
Shipping: Free domestic shipping on all RC fuel injectors.
Was: $395.00
Sale: $355.50
Save: 10%
Save: $39.50

Customize Your Item

- Please Select Clips or No Clips -
Qty:
Free Basic Shipping

Description

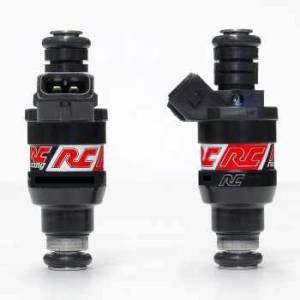

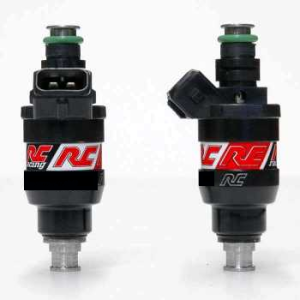

Included: 4 Honda style injectors, spacers and flow sheets. The photo is an example of a similar set.

Notes:
1) You must have your computer setup for low impedance.
2) If you would like new OBD1 Bosch EV1 center notch style injector clips - additional $19.95.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Spacers/O-rings Included: Yes
Warranty: 1 year warranty!
