Honda Civic 1000cc Fuel Injectors 1992-2000

SKU: PL4-1000

These RC Engineering 1000cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles, but you MUST have your computer setup for low impedance:

1992-1995 Honda Civic
1996-2000 Honda Civic (OBD1 style clip conversion required, see notes below for details)

Part # PL4-1000

Shipping: Free domestic shipping on all RC fuel injectors.

Was: $395.00

Sale: $355.50

Save: 10%

Save: $39.50

Description
Details
Shipping

Description

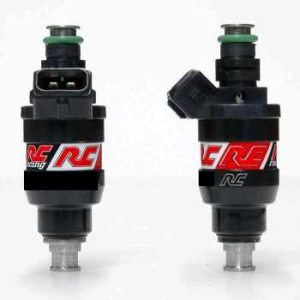

Included: 4 Honda style injectors, spacers/o-rings, and flow sheets. The photo is an example of a similar set.

Notes:
1) You must have your computer setup for low impedance.
2) For 1996+ models, OBD1 style injector clips are REQUIRED. If your vehicle still has the stock injector clips and needs OBD1 style injector clips, please select them from the drop down menu above - additional $19.95.
3) Standard spacers included are for B-Series/H-Series engines. If you need D-Series spacers, please select them from the drop down menu above.

Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes

Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Spacers/O-rings Included: YES
Warranty: 1 year warranty!
