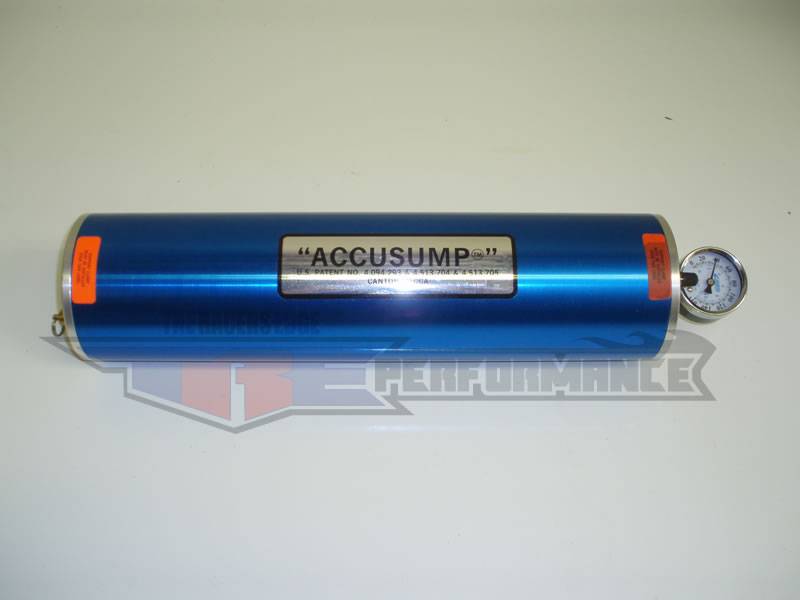

Canton 3 Quart Accusump Oil Accumulator

FEATURES: This unit is 16" long 4.25" in diameter without valve or gauge. With the included gauge installed the length increases 2.5" and the valve installed adds another 3.25" but is not included. Both the valve and gauge can be mounted away from the unit if necessary.

RECOMMENDED ACCESSORIES:

MOUNTING BRACKETS: Mounting brackets are recommended for ease of installation for all Accusumps. These clamps offer a convenient way to mount an Accusump to a panel or any other flat surface. By using the clamps you also reinforce the end caps for strength. Mounting kits includes two stainless steel safety clamps with mounting bracket.
PART #: 24-200 for all 4.25" dia. Accusumps.
PART #: 24-210 Billet Aluminum brackets for all 4.25" dia. Accusumps.

Electric Pressure Control Valving:
E.P.C. valving has the convenience of an electric valve and the rapid refill rate of a manual valve. The E.P.C. valving allows the Accusump to quickly charge with oil when the engine's oil pressure is above a predetermined level and discharge when the engine's oil pressure drops below that level. Comes with an electric valve, regulator, toggle switch, wire, terminals, and a pipe nipple.

PART #: 24-271 E.P.C. valve kit for a discharge of 20-25 PSI.
PART #: 24-273 E.P.C. valve kit for a discharge of 35-40 PSI.
PART #: 24-275 E.P.C. valve kit for a discharge of 55-60 PSI.

MANUAL BALL VALVE:
This valve is the simplest and easiest to install of all our Accusump valves. It is ideal when the Accusump is being mounted within reach of the driver.
PART #: 24-260 Canton Accusump Manual Valve with 1/2" NPT fittings.
