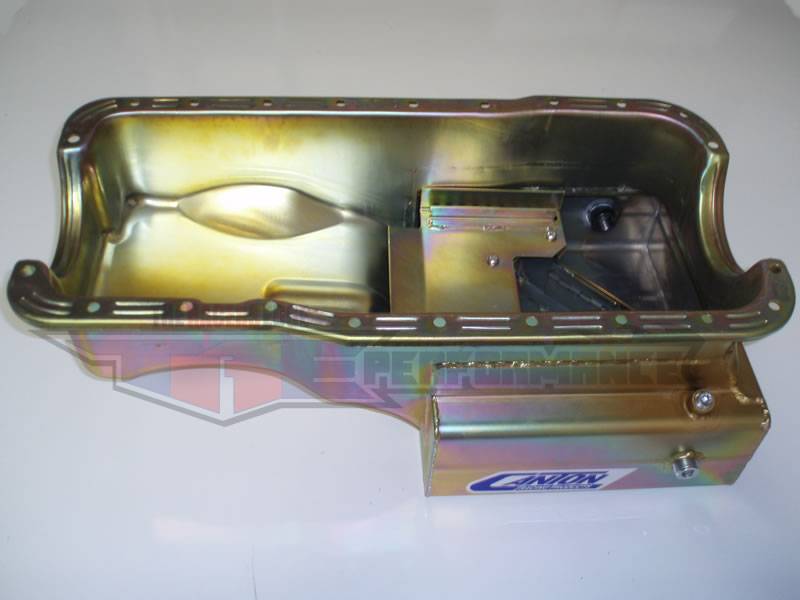

Ford Mustang Cobra 302 Canton 9 Quart Front Sump Oil Pan

15-630S
This front sump road race pan is for Ford 289-302. It has a 9 qt. system capacity, 8" deep, 12" wide, 14 ga. sump designed for Cobra kit cars. This pan includes our four trap door baffle and directional runner system with a bolt in slosh baffle to control oil slosh. Pan also includes a crank scraper, a provision for our optional pan mounted dipstick, an oil temperature fitting, and a magnetic drain plug.

Note: This pan requires our 15-611 pickup.
Was: $559.00
Sale: $459.00
Save: 18%
Save: $100.00

Qty:
Free Basic Shipping

Description

FEATURES: Track proven diamond shape road race baffle with four trap doors and runners to direct oil to the pickup under all conditions, bolt in windage tray, temp. fitting, magnetic drain plug, crank scraper and dipstick bung.

STYLE: Shallow “ T “ sump Road Race Style Oil Pan.

SIZE: 8" Deep with heavy duty 14 ga. 12" Wide front sump with a 9 qt. system capacity.

OIL PAN PART #: 15-630S for 289/302 blocks with or without main support.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: #15-611 3/4" Dia. p/u for 15-630S for use with CANTON #21-060 steel support.

GASKETS:
PART #: #88-600 4 pc. gasket set for 289-302 blocks
PART #: #88-602 Canton 1 piece gasket for 289-302 blocks.

MAIN SUPPORT:
PART #: 21-060 Ford 289-302 Main Cap Stud Support (Main Girdle) is designed to directly tie into the main caps. The Canton design doesn’t need bushings or spacers and doesn’t require the main caps to be machined to mount it. The end result is a main girdle that offers more support, is easy to install, and will clear large strokers. This support is 1/2" thick and is laser cut out of steel with CNC machined mounting holes and includes all hardware.

MAIN SUPPORT WINDAGE TRAY:
PART #: 20-960 Ford 289-302 Main Cap Stud Support Windage Tray bolts to the pre-drilled and tapped holes on Canton main cap stud supports. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly. Come with mounting bolts.

WINDAGE TRAY:
PART #: 20-931 Ford 289-302 Screen Windage tray for use WITHOUT a Main Support in front sump pans. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly.

WINDAGE TRAY MOUNTING HARDWARE:
PART #: 20-940 Ford 289-302 Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-941 Ford 289-302 Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-942 Ford R302/351w/351c Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-943 Ford R302/351w/351c Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.
