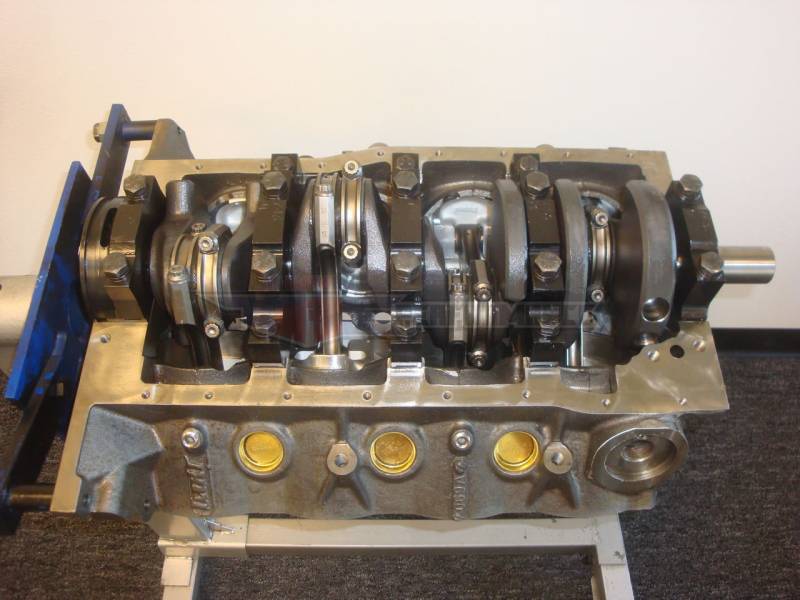

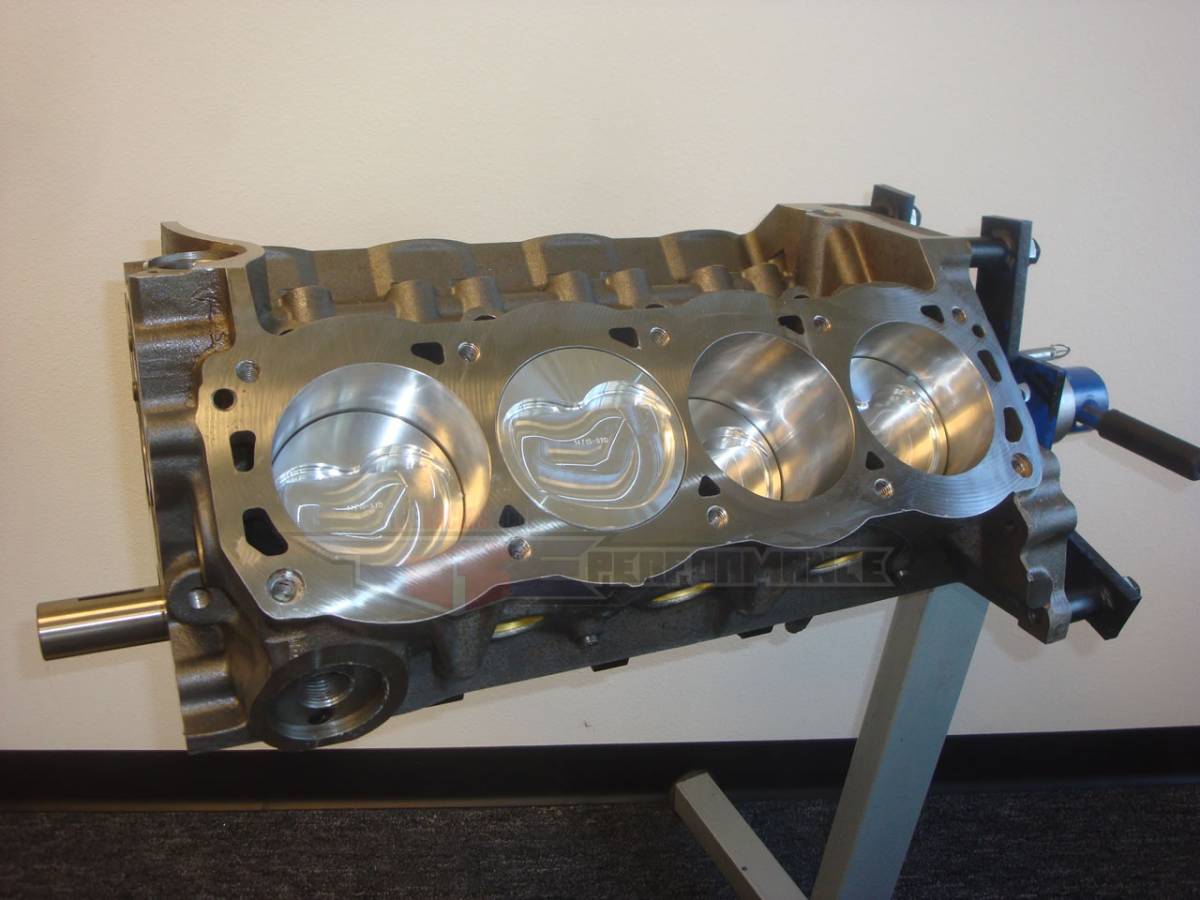

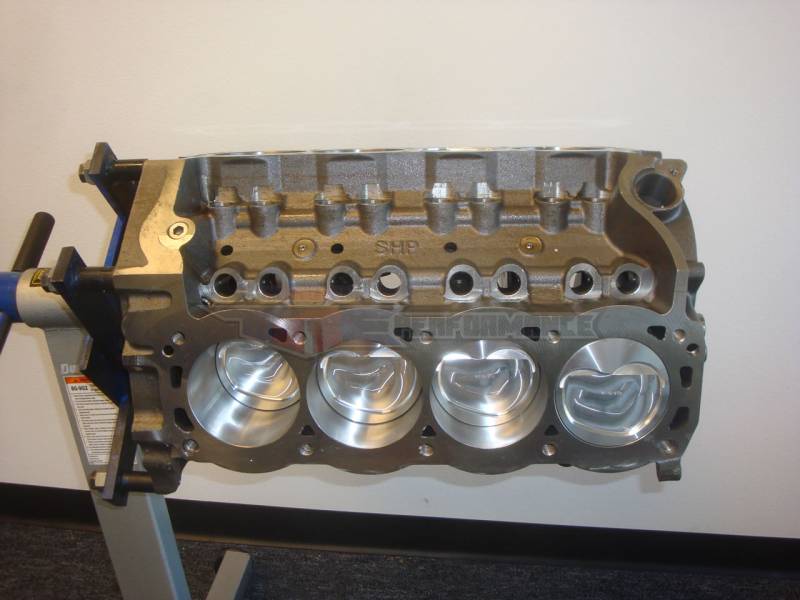

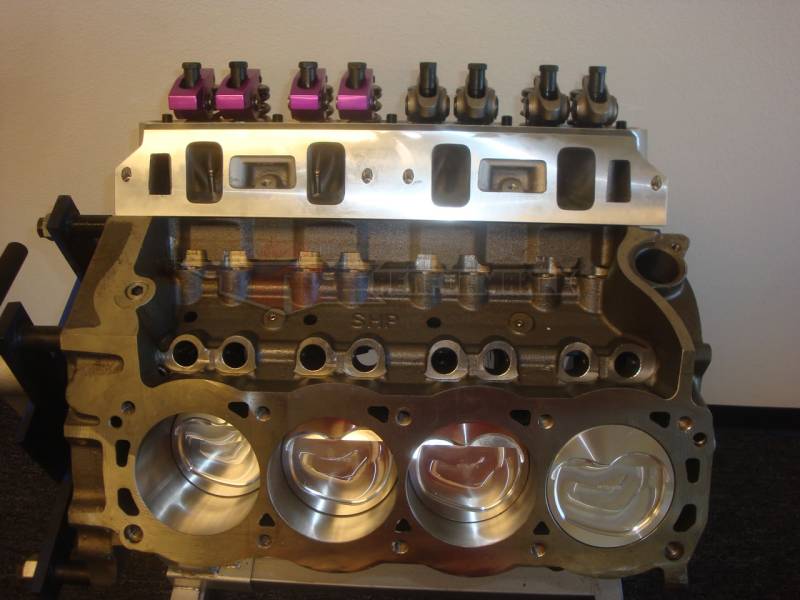

Ford 351w Stroker Race 8 second DART SHP Short Block
TREShortBlockDART351
Our 351w Dart SHP block stroker short block is designed for 600hp-1000hp vehicles looking for a strong foundation for high horsepower. This short block is balanced to 28oz and ready for your big horsepower street or race car. The extra strength of this setup relies upon a 4340 forged steel crankshaft and set of 4340 forged steel H beam rods along with the Dart SHP 4 bolt main 351w block. This is the premium 4 bolt iron block available for 351w based motors and can handle upwards of 1200hp. For lighter rotating assembly parts we also have high strength 4340 I beam rods, and Ultra light 4340 I beam rods for quick and high revving naturally aspirated engines only. Don't hesitate to ask us about custom internal parts for your exact needs, wants, and application!
Long Blocks: There is NO EXTRA CHARGE to assemble anything else you buy from us to your short block. Please ask if you are interested in anything you don't see!
Long Blocks: There is NO EXTRA CHARGE to assemble anything else you buy from us to your short block. Please ask if you are interested in anything you don't see!
Availability: All Short Blocks are
custom built and
take 4-6 weeks to
build.
Shipping: All Short Block builds are charged the actual cost of shipping which is calculated and charged when you make your order.
Was:
$5,299.99
Sale:
$4,199.99
Description
Block: Standard 4" bore TREperformance race prepped Dart SHP 4 bolt main 9.2" 351w block
Crank: TREperformance 4340 Forged Steel Crank with your choice of: 3.5" (351ci), 3.75" (377ci), 3.85" (387ci), 4" (402ci), 4.1" (412ci), 4.17" (419ci)(balanced with the rest of the assembly to a 28oz imbalance)
Rods: TREperformance 4340 Forged H beam
Bearings: Clevite P rod and main
Pistons: Probe SRS 2618-t6 high alloy lightweight forged pistons, Flat top, dish top , or blower dish top very light and strong for high boost or nitrous setups with large valve reliefs for healthy camshafts
Rings: Total Seal moly file fit rings gapped for your application
306/331/347 Race 8 second Dart Short Block Options:
BIG BORE Upgrade: Upgrade to big bore 4.125" block. $200
RODS: 4340 Forged ultra light weight I beam rods recommended for n/a setups only up to 850hp. $100
BEARINGS: Clevite H series race rod/main bearings. $150
ROD BOLTS: ARP 2000 for 800hp+ $150
WRIST PINS: Tool Steel .225 wall thickness for 1000hp+. $150
PISTON RINGS: Total Seal AP series steel top ring for high boost pressure $150
FLYWHEEL: SPEC SFI legal Billet Steel Flywheel. $233
FLYWHEEL: SPEC Lightweight SFI legal Billet Aluminum Flywheel. $332
BALANCER: SFI legal All Steel Harmonic Balancer. $149
BALANCER: Romac SFI high performance steel balancer. $339
BALANCER: Romac SFI lightweight steel/aluminum balancer. $359
REAR MAIN SEAL: Rear Main Seal installed in block. $25
Crank: TREperformance 4340 Forged Steel Crank with your choice of: 3.5" (351ci), 3.75" (377ci), 3.85" (387ci), 4" (402ci), 4.1" (412ci), 4.17" (419ci)(balanced with the rest of the assembly to a 28oz imbalance)
Rods: TREperformance 4340 Forged H beam
Bearings: Clevite P rod and main
Pistons: Probe SRS 2618-t6 high alloy lightweight forged pistons, Flat top, dish top , or blower dish top very light and strong for high boost or nitrous setups with large valve reliefs for healthy camshafts
Rings: Total Seal moly file fit rings gapped for your application
306/331/347 Race 8 second Dart Short Block Options:
BIG BORE Upgrade: Upgrade to big bore 4.125" block. $200
RODS: 4340 Forged ultra light weight I beam rods recommended for n/a setups only up to 850hp. $100
BEARINGS: Clevite H series race rod/main bearings. $150
ROD BOLTS: ARP 2000 for 800hp+ $150
WRIST PINS: Tool Steel .225 wall thickness for 1000hp+. $150
PISTON RINGS: Total Seal AP series steel top ring for high boost pressure $150
FLYWHEEL: SPEC SFI legal Billet Steel Flywheel. $233
FLYWHEEL: SPEC Lightweight SFI legal Billet Aluminum Flywheel. $332
BALANCER: SFI legal All Steel Harmonic Balancer. $149
BALANCER: Romac SFI high performance steel balancer. $339
BALANCER: Romac SFI lightweight steel/aluminum balancer. $359
REAR MAIN SEAL: Rear Main Seal installed in block. $25
Details
- TREShortBlockDART351
- TREShortBlockDART351
- TREperformance
- All Short Blocks are custom built and take 4-6 weeks to build.
- New
Categories
Shipping Information
- Item Requires Shipping
- 150.0 lbs.
- W36.0000” x H15.0000” x L15.0000”
- This item will require a special quote for shipping charges.
- All Short Block builds are charged the actual cost of shipping which is calculated and charged when you make your order.
