Ford 306/331/347/363 Race 8 second DART SHP Forged 4340 Short Block SBF 4.125 - TREperformance.com
Additional Images

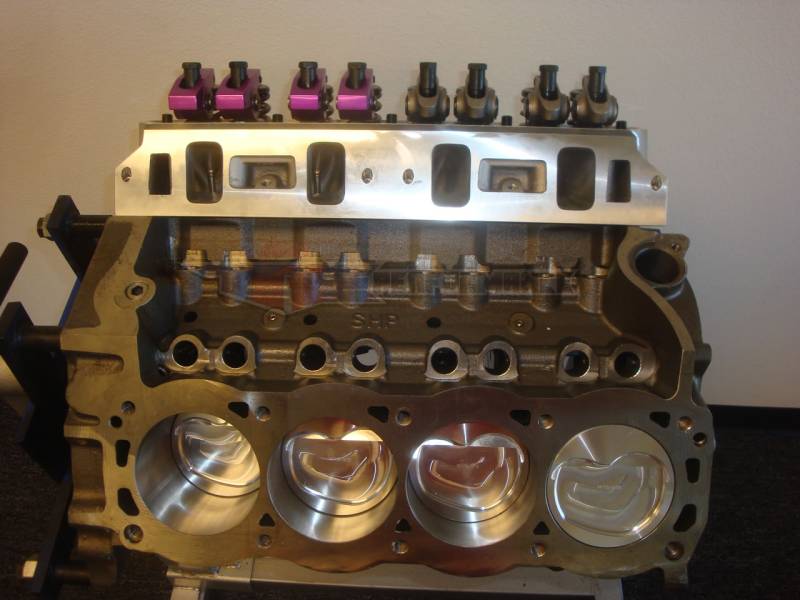

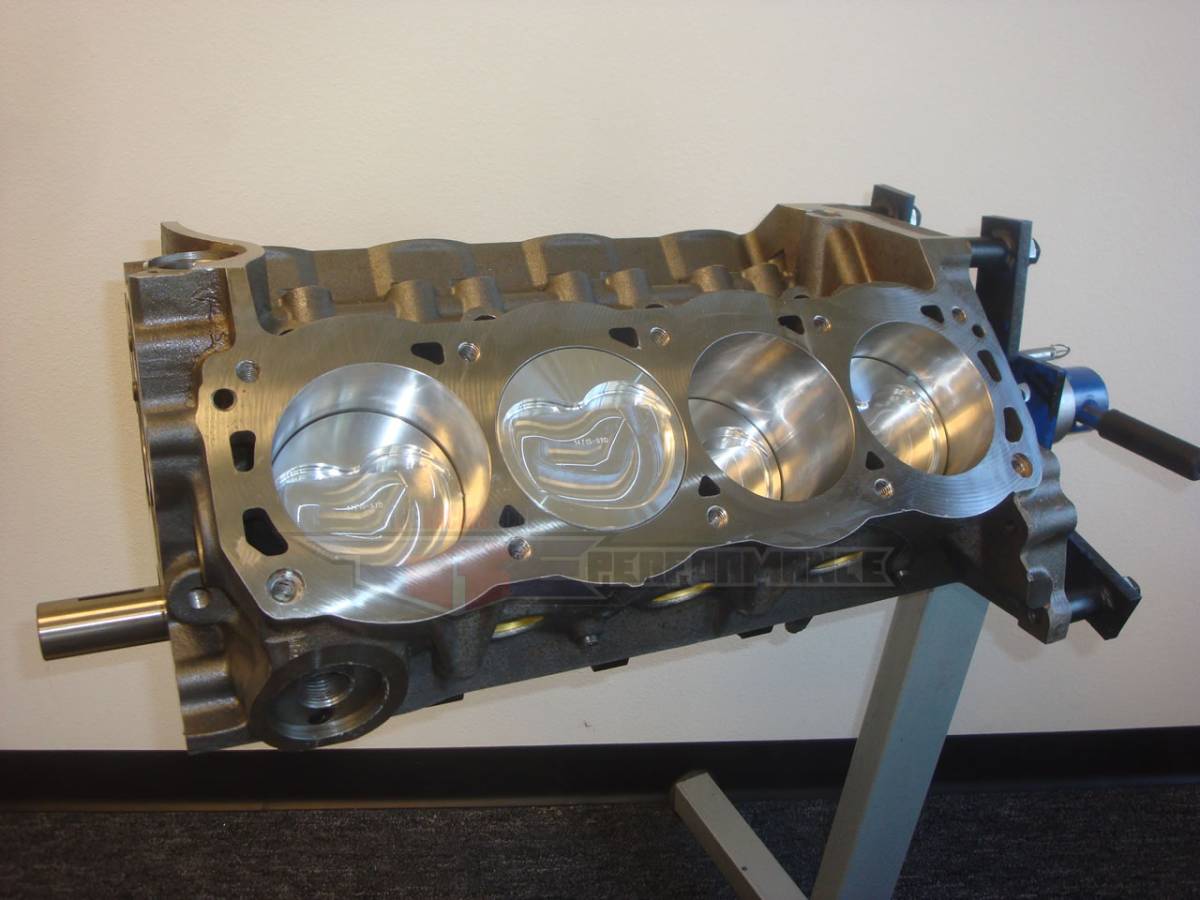

Ford 306/331/347/363 Race 8 second DART SHP Short Block
TREShortBlockDART302
Our 306/331/347 Race 8 Second Dart Short Block is designed for 800hp-1000hp vehicles looking for a strong foundation for high horsepower. This short block is balanced to 28oz and ready for your big horsepower street or race car. The extra strength of this setup relies upon a 4340 forged steel crankshaft and set of 4340 forged steel H beam rods along with the Dart SHP 4 bolt main 302 block. This is the premium 4 bolt iron block available for 302 based motors and can handle upwards of 1200hp. For lighter rotating assembly parts we also have high strength 4340 I beam rods, and Ultra light 4340 I beam rods for quick and high revving naturally aspirated engines. Don't hesitate to ask us about custom internal parts for your exact needs, wants, and application!
Long Blocks: There is NO EXTRA CHARGE to assemble anything else you buy from us to your short block. Please ask if you are interested in anything you don't see!
Long Blocks: There is NO EXTRA CHARGE to assemble anything else you buy from us to your short block. Please ask if you are interested in anything you don't see!
Availability: All Short Blocks are
custom built and
take 4-6 weeks to
build.
Shipping: All Short Block builds are charged the actual cost of shipping which is calculated and charged when you make your order.
Was:
$5,299.99
Sale:
$3,999.99
Description

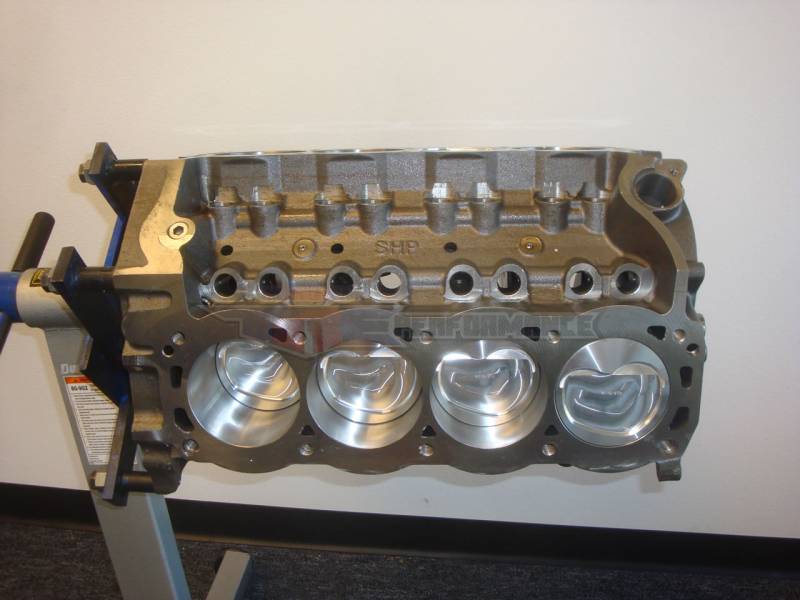

Block: 4" bore TREperformance race prepped Dart SHP 4 bolt main 302 block

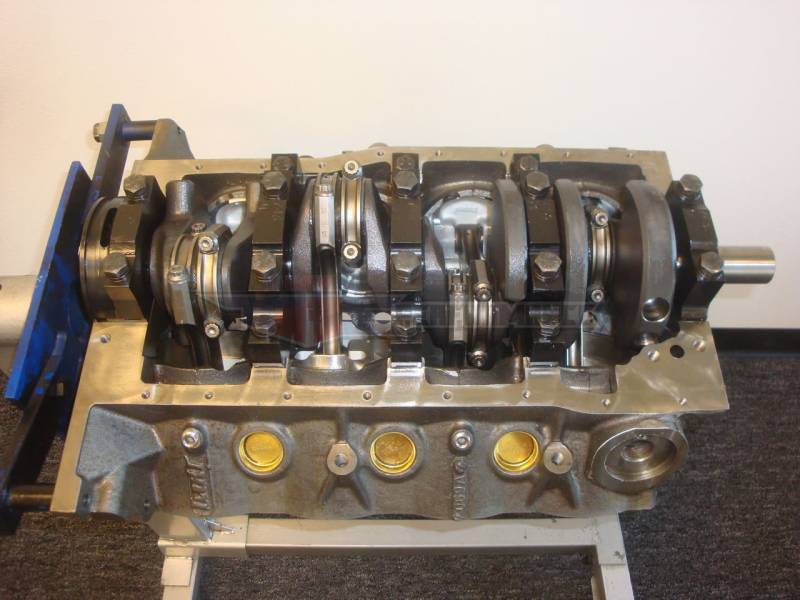

Crank: TREperformance forged steel 4340 3" crank for 302ci, 3.250" for 327ci, 3.4" crankshaft for 342ci (balanced with the rest of the assembly to a 28oz imbalance)
Rods: TREperformance 4340 Forged H beam 5.09" for 302, 5.4" for 327, or 5.315" for 342
Bearings: Clevite P rod and main
Pistons: Probe SRS 2618-t6 high alloy lightweight forged pistons, Flat top (10.79:1 w/60cc), dish top (9.58:1 w/60cc), or blower dish top (9.01:1 w/60cc, 8.67:1 w/64cc), very light and strong for high boost or nitrous setups with large valve reliefs for healthy camshafts.
Rings: Total Seal moly file fit rings gapped for your application
306/331/347 Race 8 second Dart Short Block Options:
363 Upgrade:upgrade to big bore 4.125" block. $200
RODS:4340 Forged ultra light weight I beam rods recommended for n/a setups only up to 850hp. $100
BEARINGS: Clevite H series race rod/main bearings. $150
ROD BOLTS: ARP 2000 for 800hp+ $150
WRIST PINS: Tool Steel .225 wall thickness for 1000hp+. $150
PISTON RINGS: Total Seal AP series steel top ring for high boost pressure $150
FLYWHEEL: SPEC SFI legal Billet Steel Flywheel. $233
FLYWHEEL: SPEC Lightweight SFI legal Billet Aluminum Flywheel. $332
BALANCER:SFI legal All Steel Harmonic Balancer. $149
BALANCER: Romac SFI high performance steel balancer. $339
BALANCER: Romac SFI lightweight steel/aluminum balancer. $359
Crank: TREperformance forged steel 4340 3" crank for 302ci, 3.250" for 327ci, 3.4" crankshaft for 342ci (balanced with the rest of the assembly to a 28oz imbalance)
Rods: TREperformance 4340 Forged H beam 5.09" for 302, 5.4" for 327, or 5.315" for 342
Bearings: Clevite P rod and main
Pistons: Probe SRS 2618-t6 high alloy lightweight forged pistons, Flat top (10.79:1 w/60cc), dish top (9.58:1 w/60cc), or blower dish top (9.01:1 w/60cc, 8.67:1 w/64cc), very light and strong for high boost or nitrous setups with large valve reliefs for healthy camshafts.
Rings: Total Seal moly file fit rings gapped for your application
306/331/347 Race 8 second Dart Short Block Options:
363 Upgrade:upgrade to big bore 4.125" block. $200
RODS:4340 Forged ultra light weight I beam rods recommended for n/a setups only up to 850hp. $100
BEARINGS: Clevite H series race rod/main bearings. $150
ROD BOLTS: ARP 2000 for 800hp+ $150
WRIST PINS: Tool Steel .225 wall thickness for 1000hp+. $150
PISTON RINGS: Total Seal AP series steel top ring for high boost pressure $150
FLYWHEEL: SPEC SFI legal Billet Steel Flywheel. $233
FLYWHEEL: SPEC Lightweight SFI legal Billet Aluminum Flywheel. $332
BALANCER:SFI legal All Steel Harmonic Balancer. $149
BALANCER: Romac SFI high performance steel balancer. $339
BALANCER: Romac SFI lightweight steel/aluminum balancer. $359
Details
- TREShortBlockDART302
- TREShortBlockDART302
- TREperformance
- All Short Blocks are custom built and take 4-6 weeks to build.
- New
Categories
Shipping Information
- Item Requires Shipping
- 150.0 lbs.
- W36.0000” x H15.0000” x L15.0000”
- This item will require a special quote for shipping charges.
- All Short Block builds are charged the actual cost of shipping which is calculated and charged when you make your order.
