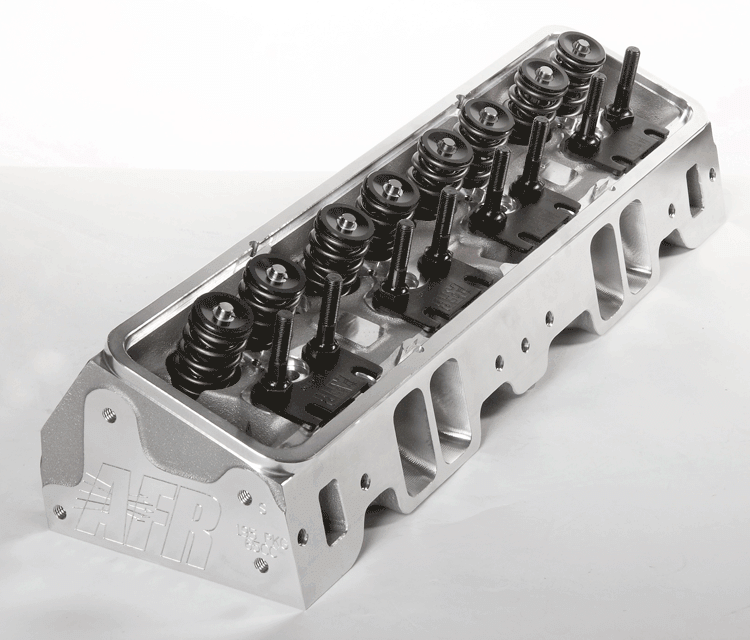

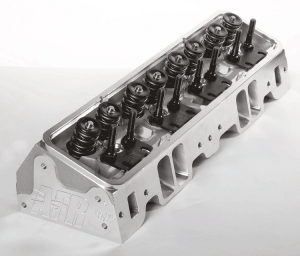

The Ultimate Standard Racing Head!

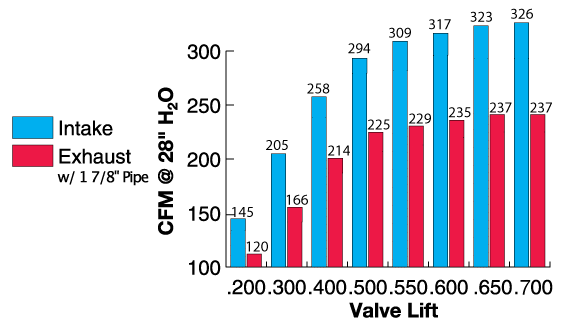

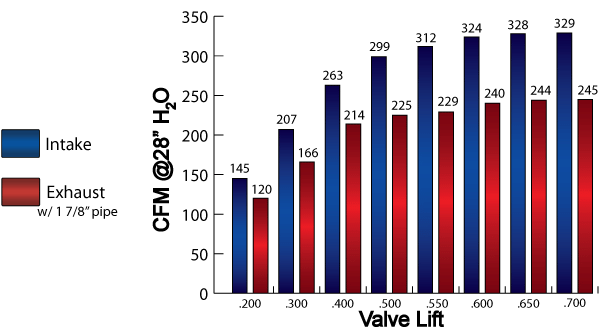

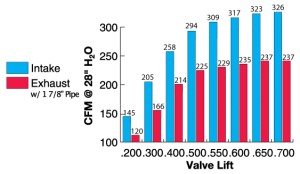

AFR is reviving its popular 220cc version due to overwhelming requests from customers for a larger bolt on standard valve location head. Unlike the previous 220 cc, the new Eliminator version requires no special parts (see footnotes below). Valves and studs are in stock GM L98 locations just like the very popular, 180, 195, and 210 series heads. They do not require offset rockers of any kind yet are still able to muster flow numbers that are in raised runner head territory. A 325 CFM head that is perfect for someone wanting to retain all their standard components while still having the airflow to reach that elusive 700 HP mark in aggressive drag race trim. Displacement ranging from a high RPM 350 to a 427 CID with natural applications in the various sportsman classes, bracket/drag cars, oval track, and larger displacement street machines with typical operating ranges between 4000 to 8000 RPM depending on application. Getting this much flow from a stock geometry 23 degree head means they are only be available in fully optimized "Competition" CNC porting. As always, these heads come with AFR’s trademark 3/4" thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm 2.100 intake and 1.600 exhaust with AFR's hardened ductile iron interlocking seats. This head is not for every large displacement combination so if you are unsure whether this is the right AFR head for you, we always encourage you to contact us directly before purchasing. Dual valve cover bolt pattern is standard. The exhaust ports are raised .250" over a standard GM L-98 cylinder head.

ALL AFR 220cc Competition series available, part numbers 1110 1112 1114 1115

Note:
2.100 valves will require aftermarket pistons notched for valve clearance.

Basic Package Components:

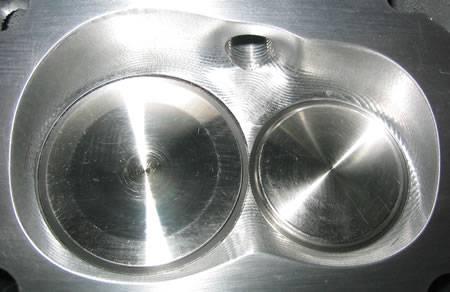

100% CNC Ported Combustion Chambers

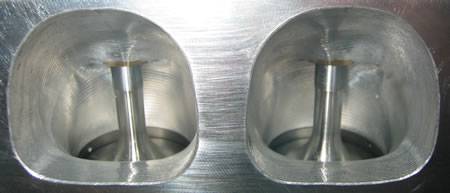

100% CNC Ported Exhaust Ports

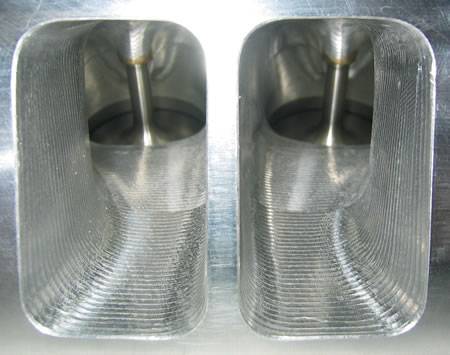

100% CNC Ported Intake Ports
Competition 3-angle Valve Job
Bead Lock Intake Valve, 2.100" x .100" long, AFR #7256
Bead Lock Exhaust Valve, 1.600" x .100" long, AFR #7254
1.550" OD Roller Valve Spring, 225 lbs. on seat, .710" maximum lift, AFR #8000
10 degree 4140 Chrome Moly Retainers, AFR #8511
10 degree Bead Lock Valve Keepers, AFR #9009
7/16" Rocker Studs, AFR #6405
5/16" Guide Plates, AFR #6105
Viton Valve Seals, AFR #6612
Hardened Spring Seat, AFR #8045
Intake Valve Seats, AFR #9060
Exhaust Valve Seats, AFR #9070
Bronze Valve Guides, AFR #9051

All Accessory Holes are Predrilled & Tapped!

Specifications, Features,and Supporting Components:

Head Torque 65-70 Ft. Lbs.
Rocker Stud Torque 55-60 Ft. Lbs.
Intake Port Gasket, 1.280"x2.090" w/ 3/8" radius, AFR #6820
Important: Do not port match your intake manifold to this Fel-Pro gasket, as they do not exactly fit AFR heads.
Exhaust Port Gasket Fel Pro #1405, AFR #6835
Head Gasket 350cid Fel Pro #1003, AFR #6800
Head Gasket 400cid Fel Pro #1014, AFR #6802
Head Bolts & Studs Standard ARP, AFR #6310 & #6305
Head Bolt Washers Manley, AFR #6320
Stud Girdle GM L98 AFR #6200
Suggested Manifold Victor Jr. or Super Victor, AFR #5031 or #5033
Spark Plug Starting Range Autolite 3910
Combustion Chambers 65cc or 75cc
Spring Pocket can be cut to 1.750, no deeper.
Valve Spacing Standard GM L98
Rocker Arms Standard GM L98
Valve Angle 23 degrees
Angle Mill 58cc to 62cc (milling available) .008" per cc
Flat Mill up to 62cc (milling available) .006" per cc
Pushrods 5/16" Hardened, AFR #6601 through #6603

Note: Milling head deck will affect flow numbers. Angle mills may require a .120 thick intake gasket.
