Lancia Delta Integrale 1000cc Fuel Injectors - RC Engineering - TREperformance.com
Lancia Delta Integrale 1000cc Fuel Injectors
Many Lancia Models

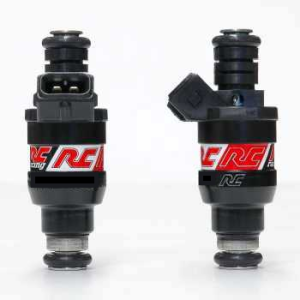

These are Bosch style injectors which work on most top feed Lancia fuel injected vehicles, including the Lancia Delta Integrale.
Part # PL4-1000
Description
Notes:
1) You must have your computer setup for low impedance.
2) If you would like new OBD1 Bosch EV1 center notch style injector clips they are available - additional $19.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Spacers/O-rings Included: No
Warranty: 1 year warranty!
Details
- PL4-1000
- PL4-1000
- RC Engineering
- New
