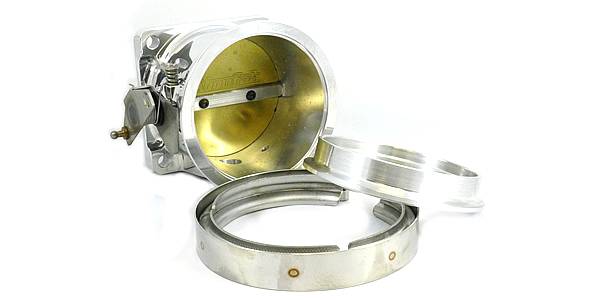

Accufab 105mm 86-93 Mustang 5.0L V-band Throttle Body Kit

F105VK
Accufab has a NEW throttle body for the Ford 1986-1993 Mustang 5.0L. Accufab created the ultimate, must have throttle body, the Big Daddy! Yes, this Big Daddy is sure to catch your eye by its impressive size, 105mm flowing 1504 cfm. This 105mm throttle body is CNC machined from billet aluminum, and the exterior is polished to an eye-catching finish. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Manufactured in the USA. The 105mm throttle body features a split shaft design which helps prevent the shaft from breaking under intense pressure. The throttle body is 105mm at the blade and each has a 4.5" inlet. There is no vacuum elbow and 4.5" tubing is required.

This F105VK is designed for use with an Accufab V-band for the air inlet, which is included with this kit.
Shipping: FREE Fast Priority Mail shipping to the USA and it's territories on ALL Accufab Throttle Bodies
Was: $525.99
Sale: $459.99
Save: 13%
Save: $66.00
Qty:
Free Basic Shipping

Description

Accufab The ultimate in Ford Mustang 5.0L Throttle Bodies.

TREperformance We offer seven different sizes for your Mustang 5.0L, as well as a Standard, MAX and Race Versions in most sizes. Checkout our website for all of the options, and give us a call if you need help deciding on which throttle body is best for your application.

Feel the Power. Accufab offers high performance throttle bodies and spacers for your 1986-1993 Ford 5.0L Mustang. Replace your Ford Mustang 5.0L restrictive stock throttle body with this top of the line 105mm single blade unit from Accufab and get your 5.0L the air it's been lacking.

Exceptional Quality. Accufab's quality is second to none - these throttle bodies are CNC machined from 356 billet aluminum, and the exterior is polished to an eye-catching finish. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Manufactured in the USA. The 105mm throttle body features a split shaft design which helps prevent the shaft from breaking under intense pressure.

Application. This Accufab single blade throttle body is specifically designed for use on the 1986 - 1993 Ford Mustang 5.0L.

Technical Notes. Idle Speed should only be set by adjusting the Throttle Position Sensor. DO NOT adjust any screws on the Throttle Body. These screws are pre-set at Accufab.

Accessories Included: The throttle body gasket, IAC gasket and EGR gaskets are included where applicable. No mounting hardware available.

Accufab has several optional accessories to help adapt an Accufab 5.0L Ford style throttle body to be used with GM electronics instead of Ford electronics. For example, we offer a TPS adapter to use your GM TPS (Throttle Position Sensor) or an IAC (Idle Air Control) adapter to use your GM IAC. If you need to relocate the IAC or block it off all together, we have developed parts to help accomplish these goals.

Details

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W8.0000” x H8.0000” x L5.0000”
  • Free Basic Shipping
  • FREE Fast Priority Mail shipping to the USA and it's territories on ALL Accufab Throttle Bodies

  • Have a question? Ask the Pros
  • 877-514-9494Mon - Fri 8:00 AM - 4:00 PM PST
