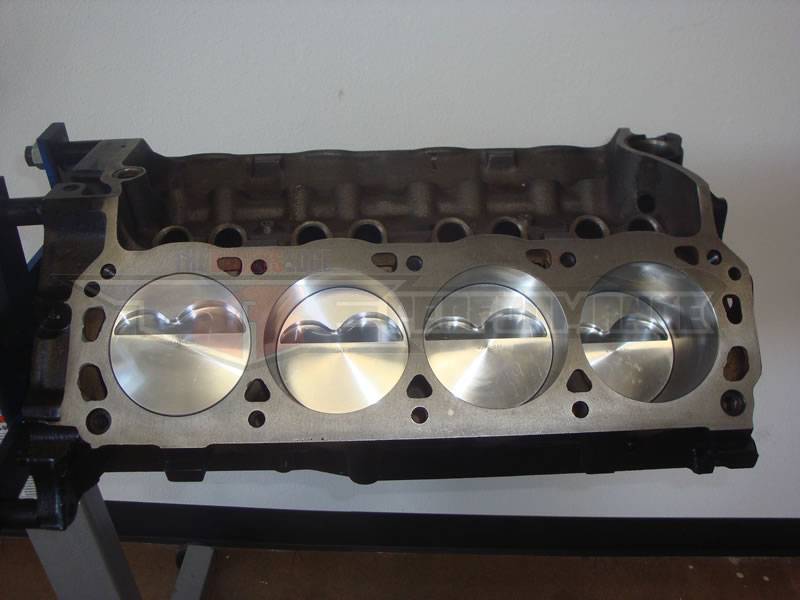

Ford 306 Performance Short Block

TREShortBlockPerformance306
Our 306 Performance Short Block is designed for n/a, nitrous, or boosted applications looking for a strong piston and rod setup, but still utilizing the OEM roller block. This bottom end is balanced to 50oz and like all of our short blocks, is professionally assembled, machined, and has all new parts installed. We also will paint the block the color of your choice for only $50. Whether you are planning a high rpm n/a setup, nitrous, or boost, this short block is the one for you! This is able to withstand up to 600hp at the crank (550 supercharged due to power to turn the supercharger). Don't hesitate to ask us about custom internal parts for your exact needs, wants, and application!

Long Blocks: There is a $200 charge to assemble anything else you buy from us to your short block. Please ask if you are interested in anything you don't see!
Availability: All Short Blocks are custom built and take 4-6 weeks to build.
Shipping: All Short Block builds are charged the actual cost of shipping which is calculated and charged when you make your order
Was: $2,399.99
Sale: $2,199.99
Save: 8%
Save: $200.00
Qty:

Description

Block: .030 over TREperformance prepped roller 302 block, clearanced for stroker crank, all bolt holes are tapped, gasket surfaces are cleaned fully, surface decked, and the block is then washed and new expansion plugs and galley plugs installed.

Crank: Oem late model crankshaft, turned .010/.010, thermal cleaned, shot-peened, Magna Fluxed, precision ground, oil scooped and chamfered(balanced with the rest of the assembly to a 50oz imbalance).

Rods: Scat 5140 Forged machined beam 5.09", arp 8740 3/8" cap screws.

Bearings: Clevite P series rod and main (MS590P-10 and CB634P-10) and Clevite SH510S cam bearings.

Pistons: Racetec Pistons Autotec line 4032 forged, -5cc flat top (good to about 175hp nitrous or 12psi boost, specific for inline or twisted wedge heads)

Rings: Mahle plasma moly

306 Performance Short Block Options:

Pistons: Racetec Pistons 4032 forged, -9.5cc dished, +6cc dome, or +16.6cc dome $100
Pistons: Racetec Pistons 4032 forged, -9.5cc dished, +6cc dome, or +16.6cc dome, for twisted wedge heads $250
RODS: RPM 4340 Forged ultra light weight I beam rods (30 grams lighter, and much stronger than 5140 rod) recommended for n/a setups only. $250
PISTON WRISTPINS Tool Steel .150 wall wristpins (lighter and stronger). $200
BLOCK PAINT Prep and paint the block the color of your choice. $50
BEARINGS: Clevite H series race rod/main bearings. $150
MAIN GIRDLE: Canton Racing 1/2" steel main girdle installed with ARP bolts. $225
FLEXPLATE: RPM SFI legal Steel Flexplate 157 or 164 tooth. $69
FLYWHEEL: SPEC SFI legal Billet Steel Flywheel #sf05s. $233
FLYWHEEL: SPEC Lightweight SFI legal Billet Aluminum Flywheel #sf05a. $341
BALANCER: SFI legal All Steel Harmonic Balancer. $159
BALANCER: Romac SFI high performance steel balancer. $299
BALANCER: Romac SFI lightweight steel/aluminum balancer. $329
REAR MAIN SEAL: Clevite one piece rear main seal installed in block. $25

Details

  • TREShortBlockPerformance306
  • TREShortBlockPerformance306
  • TREperformance
  • All Short Blocks are custom built and take 4-6 weeks to build.
  • New

Shipping Information

  • Item Requires Shipping
  • 150.0 lbs.
  • W36.0000” x H15.0000” x L15.0000”
  • This item will require a special quote for shipping charges.
  • All Short Block builds are charged the actual cost of shipping which is calculated and charged when you make your order
