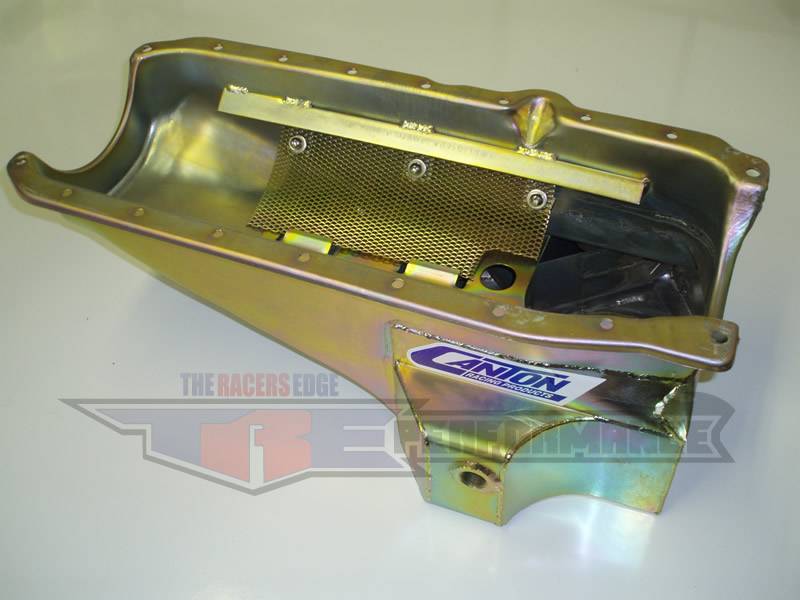

Chevy Camaro LT-1 Canton Oil Pan 1993-1997

This road race pan is for '86 and newer SBC blocks in '93-'97 F-Bodies, including the Camaro, Firebird and Impala SS. It has a 7-1/2" deep, 12" wide, 8-1/4" long sump for a 6 qt. system capacity. It features a triple trap door baffle for oil control, a removable one-way screen windage tray with built in crank scraper, an oil temperature fitting, a 20mm bung for the stock low oil warning sender, and a magnetic drain plug. This pan will also clear 383 stroker kits.

Price: $360.00
SALE: $299.99

Item Description »

FEATURES: 3 Trap door baffles, removable one way screen windage tray with built in crank scraper, oil temp fitting, magnetic drain plug and, 20mm fitting for low oil warning sender.

STYLE: 7-1/2" shallow, fully baffled for road racing, this pan was designed to fit in late model (93-97) F Bodies. Makes a great late F-Body Drag Pan. Can be used with cross-over exhaust. Pans can be notched for steering clearance on a special order basis.

SIZE: 7-1/2" Deep, 12" wide, 8-1/4" long sump has a 6 qt. system capacity.

STARTER: Works with stock starter.

OIL PAN PART #: 15-242T pan for direct bolt-in, '93-97 F-Bodies.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 20-010 Standard Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-013 Standard Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.
PART #: 20-020 High Volume Pickup for Standard SBC 7.5" Oil Pump
PART #: 20-023 High Volume Pickup for SBC Melling M155 Oil Pump 3/4" dia.

GASKET:
PART #: 88-100T Gasket Set for 1986+ SBC blocks.
