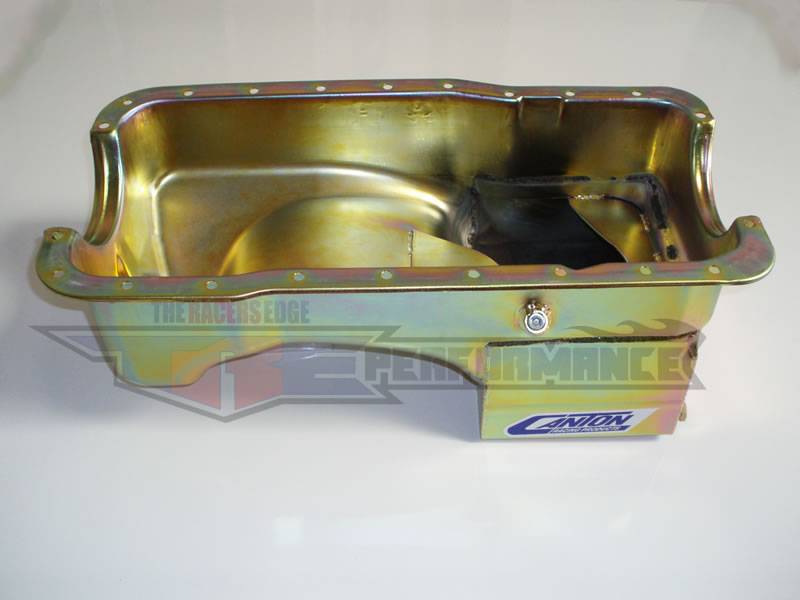

Ford Mustang 289/302 Canton 7 Quart Deep Rear Sump Oil Pan

15-620S
This deep sump oil pan is for 289-302 blocks in fox body mustangs with main supports. It has a 9" deep sump and a 7 quart system capacity. The extra deep sump and a slosh baffle provide increased oil control, while the deletion of the crank scraper allows clearance for most main supports. Pan also includes a provision for a pan mounted dipstick and magnetic drain plugs. This pan requires one of our pickups and it will clear any 331, 347, or 355 stroker kit.

Was: $349.00
Sale: $301.00
Save: 14%
Save: $48.00
Qty:

Description

FEATURES: This oil pan features a Slosh baffle, magnetic drain plug, and provision for pan mounted dipstick. Works with long tube headers and is the same as the #15-620 pan except comes without the crankscraper and is deeper in the center for main support clearance.

STYLE: Deep rear sump pan for increased oil capacity and oil control in 79 and up Mustangs and 80 & up T-Bird chassis, it is deep enough to clear any stroker kit.

SIZE: 9" Deep sump gives a 7 quart system capacity.

OIL PAN PART #: 15-620S for 289-302 blocks with or without main support.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-621 without main girdle for 15-620s pan.
PART #: 15-625 for other main girdle for 15-620s pan.
PART #: 15-627 for Canton main girdle for 15-620s pan.

GASKETS:
PART #: 88-600 4 pc. gasket set for 289-302 blocks
PART #: 88-602 1 pc. gasket for 289-302 blocks.

MAIN SUPPORT:
PART #: 21-060 Ford 289-302 Main Cap Stud Support (Main Girdle) is designed to directly tie into the main caps. The Canton design doesn’t need bushings or spacers and doesn’t require the main caps to be machined to mount it. The end result is a main girdle that offers more support, is easy to install, and will clear large strokers. This support is 1/2" thick and is laser cut out of steel with CNC machined mounting holes and includes all hardware.

MAIN SUPPORT WINDAGE TRAY:
PART #: 20-960 Ford 289-302 Main Cap Stud Support Windage Tray bolts to the pre-drilled and tapped holes on Canton main cap stud supports. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly. Come with mounting bolts.

WINDAGE TRAY:
PART #: 20-930 Ford 289-302 Screen Windage tray for use WITHOUT a Main Support in rear sump pans. These trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly.

WINDAGE TRAY MOUNTING HARDWARE:
PART #: 20-940 Ford 289-302 Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-941 Ford 289-302 Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-942 Ford R302/351w/351c Windage tray mounting kit for #20-930 includes four main cap studs, nuts, washers and tray mounting hardware.
PART #: 20-943 Ford R302/351w/351c Full main cap stud kit for #20-930 includes the full ten main cap studs, nuts, washers and tray mounting hardware.

Details

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W24.0000” x H10.0000” x L10.0000”
