The Medium Port, High Velocity Torque Monster!

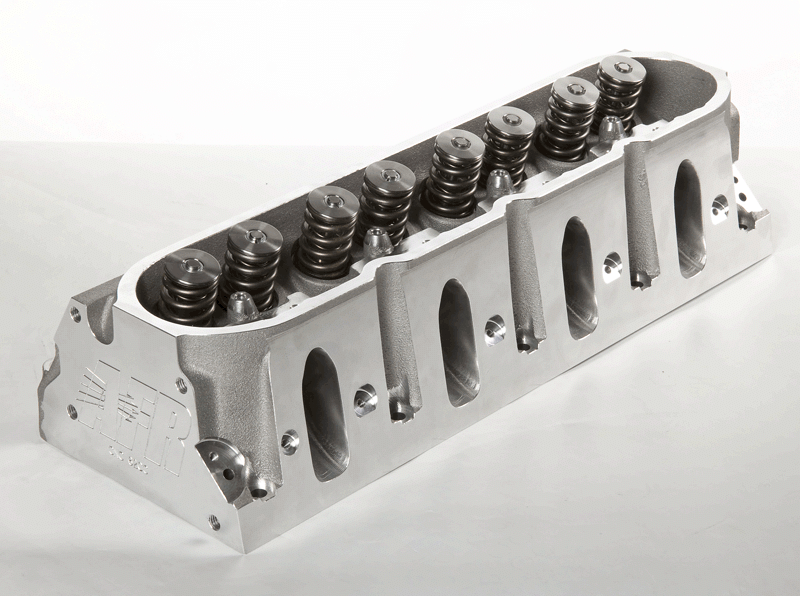

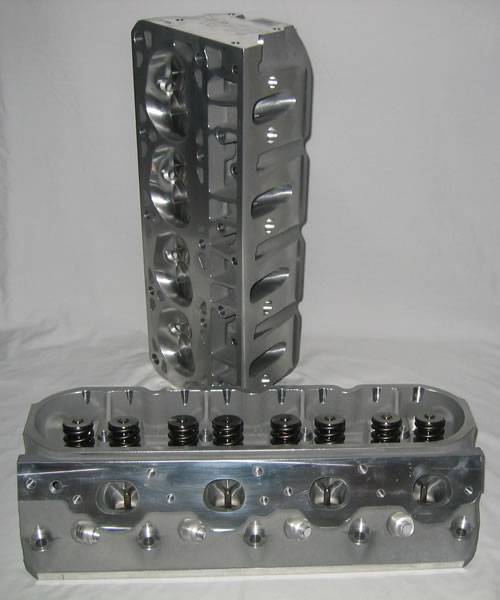

In keeping up with the GM's trend of larger bore sizes and increased displacement, AFR is proud to release the 215cc LS1/LS2/LS6 version of our popular Gen III product line which is aimed specifically to maximize 4” bore combinations (364 - 408 CID). However this head is very versatile and could also be considered for aggressive 346 applications and should also be a prime consideration in larger stroker motors as well (415 - 430 CID) if the focus of the build is more aimed at enhancing street performance than all out strip performance (where our 230 or 245 cc offerings potentially make more sense). This is a very effective design offering serious velocity while still being able to provide a significant volume of airflow, enough to generate well over 600 HP at the crank. This head will also work well on any forced induction or nitrous applications from 346 - 408 CID; larger engines should look to our 230 offering. It of course comes equipped with AFR's trademark 3/4” thick deck and thicker port and combustion chamber surfaces as well. If you're looking to see that blue oval in your rear view mirror instead of your windshield, look no further than the AFR 215.

Note: Hydraulic roller cams in "LS" Gen III engines typically experience valve float at 6600-6800 RPM's. If you are using aftermarket rocker arms valve float will become prominent and AFR highly recommends upgrading to the AFR part #8019 spring. If you plan on running over .600 gross valve lift and/or 6600 RPM, AFR suggests you upgrade your springs to AFR part #8019. The upgraded springs have higher seat and open pressures (155/410+) to better reduce the risk of valve float in more aggressive applications.
Note: The AFR 215 requires a minimum head gasket bore of 4.135 regardless of bore size and is a direct bolt on requiring no special parts.
Note: LSX bead locks and aftermarket bead locks are not interchangeable. GM made their bead lock radius and depth different. AFR locks are the same as GM LSX.

Basic Package Components	Part #

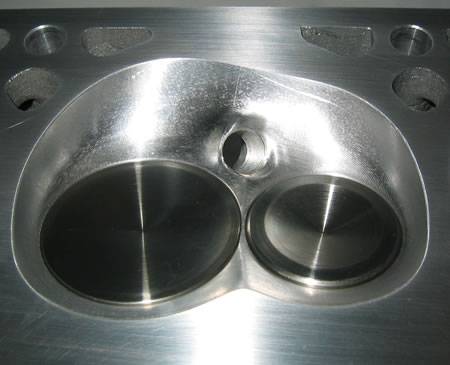

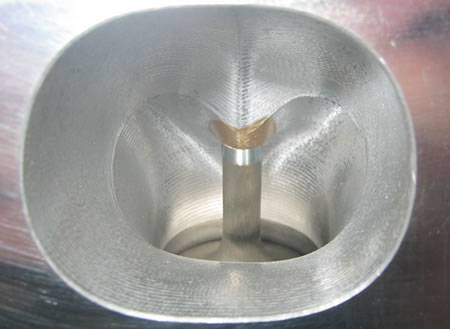

100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 3-angle Radiused Valve Job
Bead Lock Intake Valve, 2.020" standard length	AFR #7207
Bead Lock Exhaust Valve, 1.600" standard length	AFR #7228
1.290" OD Dual Hydraulic Roller Valve Spring w/ dampener,	AFR #8017
125 lbs on seat, .600" maximum lift, upgrades available	AFR #8017
7° 1.250" Titanium Retainers	AFR #8512
7° Bead Lock Valve Keepers	AFR #9007
Viton Valve Seals	AFR #6612
Hardened Spring Cup	AFR #8042
Intake Vavle Seats	AFR #9059
Exhaust Vavle Seats	AFR #9069
Bronze Valve Guides	AFR #9051

Specifications, Features, and Optional Supporting Components

Head Torque	11mm ARP 70ft. lbs. w/ Moly
Head Torque	8mm 23ft. lbs. w/ Moly
Exhaust Port Gasket	Fel-Pro #1440, AFR #6859
Head Gasket	Fel-Pro #1041, AFR #6847
Cometic Head Gasket	AFR #6846
6 pt. Head Bolts	AFR #6330
6 pt. Head Studs	AFR #6331
12 pt. Head Studs	AFR #6332
Suggested Manifold	FAST LSX
Intake Port Volume	215cc
Exhaust Port Volume	84cc
Combustion Chambers	65cc
Spring Pocket	Can be cut to 1.525, no deeper
Valve Spacing	Stock
Rocker Arms	Stock
Valve Angle	Stock
Flat Mill (Milling options available)	.006" per cc

Important: Do not port match you intake manifold to any Fel-Pro gasket as it does not precisely match AFR heads.
Note: Milling head deck will affect flow numbers.
